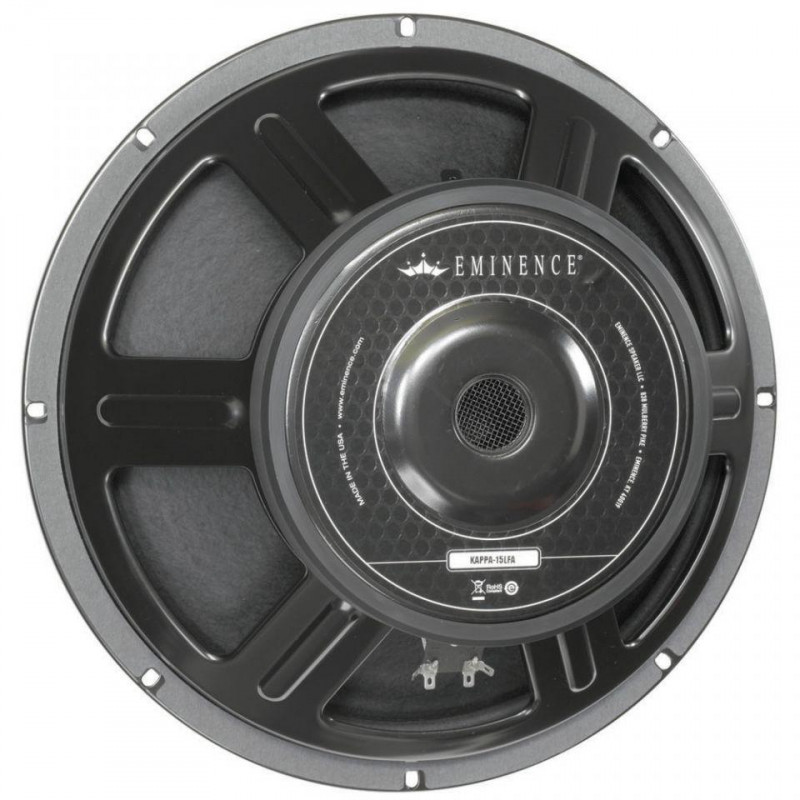

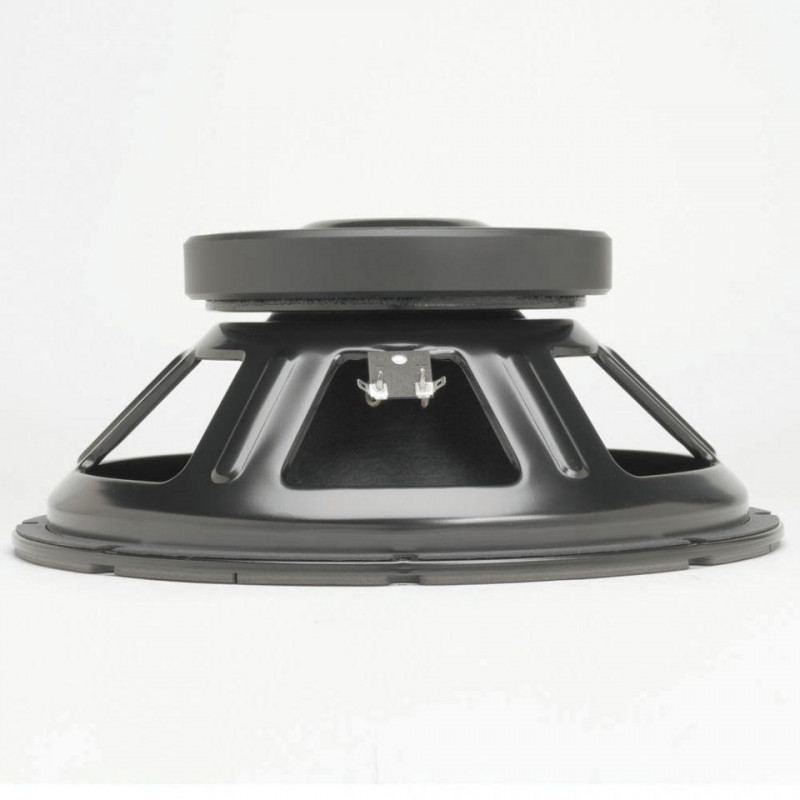

Eminence - KAPPA 15 LFA

KAPPA 15 LFA

Eminence Kappa 15 LFA 15" Speaker 600 W 8 Ohms. Price per piece.

In Stock

Europe Warehouse: 230

More info

Recommended for professional audio in a vented mid-bass or bass enclosure. Also suitable for bass guitar.

Product type
Loudspeaker Chassis

Type
PA

Nominal Diameter
15 "

Nominal Diameter
381 mm

Voice Coil
3 "

Voice Coil
76.2 mm

Overall diameter
384.9 mm

Pitch Circle Diameter
369.9 mm

Section Diameter
352.3 mm

Diameter of fixing holes
6.4 mm

Depth
156 mm

Nominal Impedance
8 Ohm(s)

Nominal Load Capacity
600 W

maximum rated load
1200 W

Sensitivity (1 W / 1 m)
99 dB

Frequency response
38 - 2700 Hz

Voice Coil Material
copper

Magnet
Ferrite

Depth of the magnetic gap
9.53 mm

Thiele & Small Parameter


Fs (Resonance Frequency)
39 Hz

Re (DC resistance)
5.4 Ohm(s)

Qms (mechanical quality)
6.08

Le (inductance of the voice coil)
1.27 mH

Qes (electrical quality)
0.41

Qts (overall quality)
0.38

Vas (equivalent volume)
159

Mms (moving mass)
105 g

BL (power factor)
18.6 T/m

Xmax (maximum displacement)
5.5 mm

Cms (elasticity of the suspension)
0.15 mm/N

Sd (membrane area)
856.3 cm²

Weight
10,12 kg
