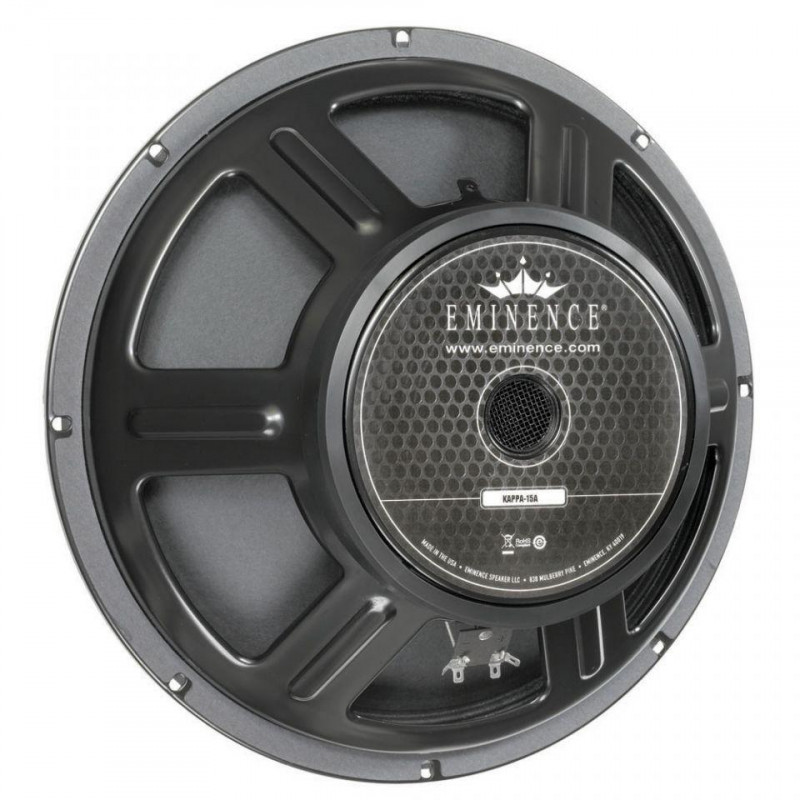

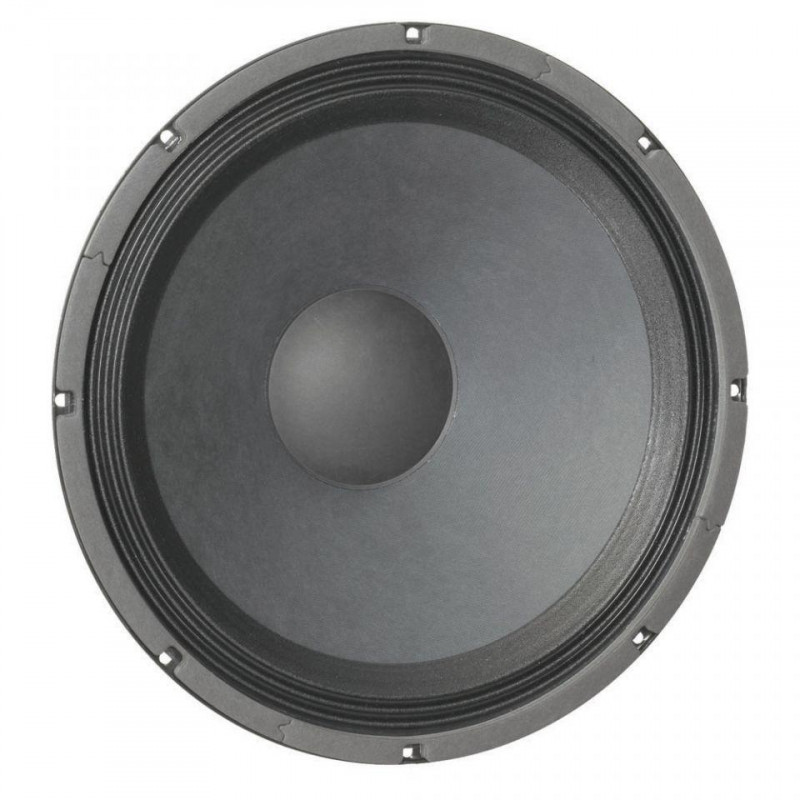

Eminence - KAPPA 15A
Eminence Kappa 15 A 15" Speaker 450 W...
More info
Recommended for professional audio in a vented mid-bass or bass enclosure. Also suitable for bass guitar.
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 "
Nominal Diameter
381 mm
Voice Coil
3 "
Voice Coil
76.2 mm
Overall diameter
384.9 mm
Pitch Circle Diameter
369.9 mm
Section Diameter
352.3 mm
Diameter of fixing holes
6.4 mm
Depth
156 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
450 W
maximum rated load
900 W
Sensitivity (1 W / 1 m)
100.5 dB
Frequency response
52 - 2300 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
9.53 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
33 Hz
Re (DC resistance)
5.22 Ohm(s)
Qms (mechanical quality)
8.9
Le (inductance of the voice coil)
1.05 mH
Qes (electrical quality)
0.33
Qts (overall quality)
0.32
Vas (equivalent volume)
321.3
Mms (moving mass)
76 g
BL (power factor)
15.7 T/m
Xmax (maximum displacement)
4 mm
Cms (elasticity of the suspension)
0.31 mm/N
Sd (membrane area)
856.3 cm²
Weight
8,98 kg
