Power stereo 8O (1kHz, THD+N 1%): 2x440Wrms
Power stereo 4O (1kHz, THD+N 1%): 2x 750Wrms
Power stereo 2O (1kHz, THD+N 1%): 2x 1200Wrms
Power bridge 8O (1kHz, THD+N 1%): 1500Wrms
Power bridge 4O (1kHz, THD+N 1%): 2400Wrms
Power bridge 4O (1kHz, THD+NFreq. Resp. (+/-0.5dB): 20-20.000Hz

Specifications:

• Input sensitivity: +4dBu (1,2Vrms)
• Input CMMR (1kHz): >50dB
• Input impedance: 30kO Balanced, 15kO un-Balanced
• THD: S/R ratio: >100dB
• Channel separation 8?/1kHz: >70dB
• Damping factor 8O/400Hz: >200
• Cooling: fan cooling
• Amplifier type: Class D (switch mode)
• Power supply type: Switch mode
• Input Connections: Balanced XLR + balanced ¼" (6,3mm) stereo jacks
• Output Connections: bind-post wire terminals and 2 SpeakON® for Stereo & Bridge Output
• Protection: Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse Thermal Cut

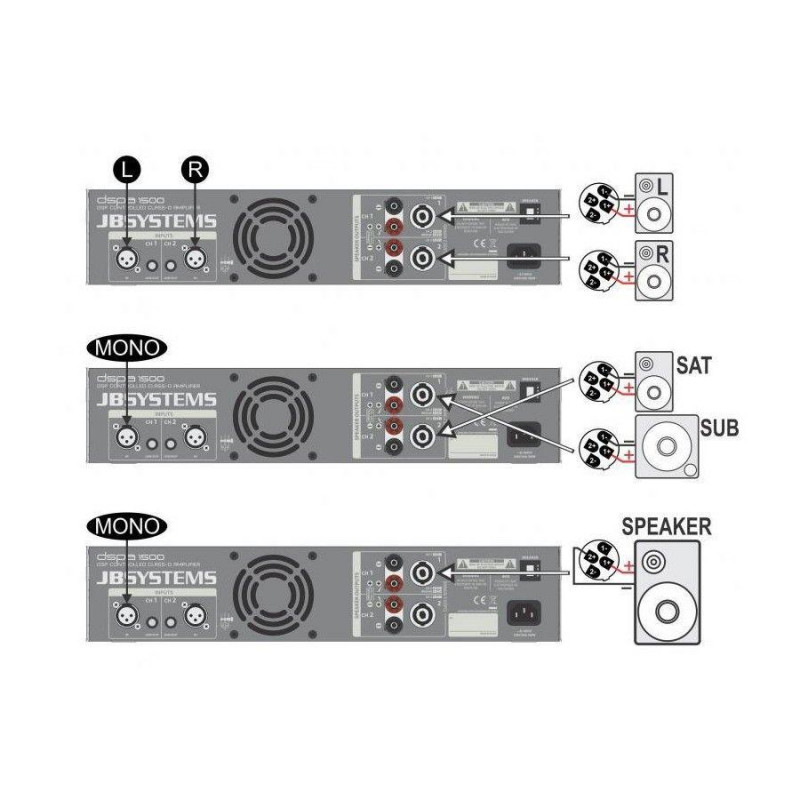

• Amplifier working modes: Stereo ~ Bridge ~ Y-mode
• DSP processing:
• HPF: 40Hz ~ 150Hz
• LPF: 6,3kHz ~ 20kHz
• PEQ: 8band 100Hz ~ 12,5kHz * Q: 0,5 ~ 5 * Gain: ±6dB
• 2 Clip limiters: 0dB ~ -12dB
• 2 Delays (time alignment): 0 ~ 20ms (6,86m)
• X-over (24dB/oct Linkwitz/Riley) : 50Hz ~ 3,15kHz
• Power Supply: 100~240Vac 50/60Hz
• Dimensions (mm): 482 x 88 x 280
• Weigth (kg): 5,2
