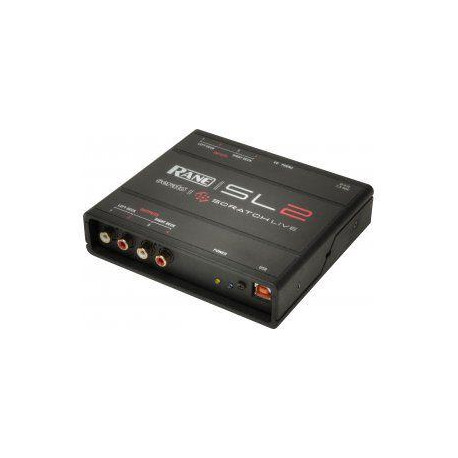

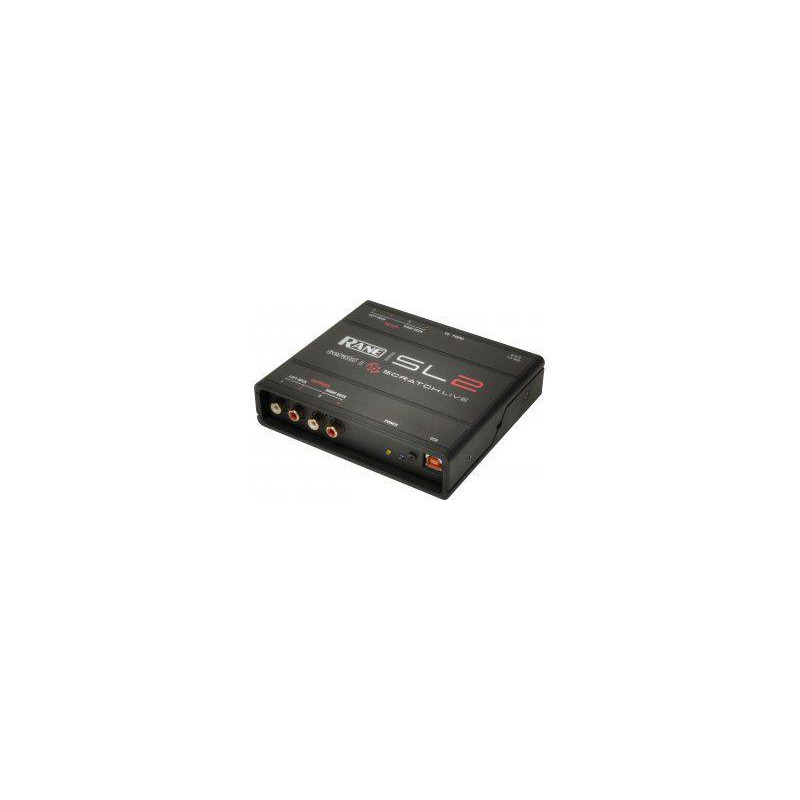

Rane - SL2

SL2

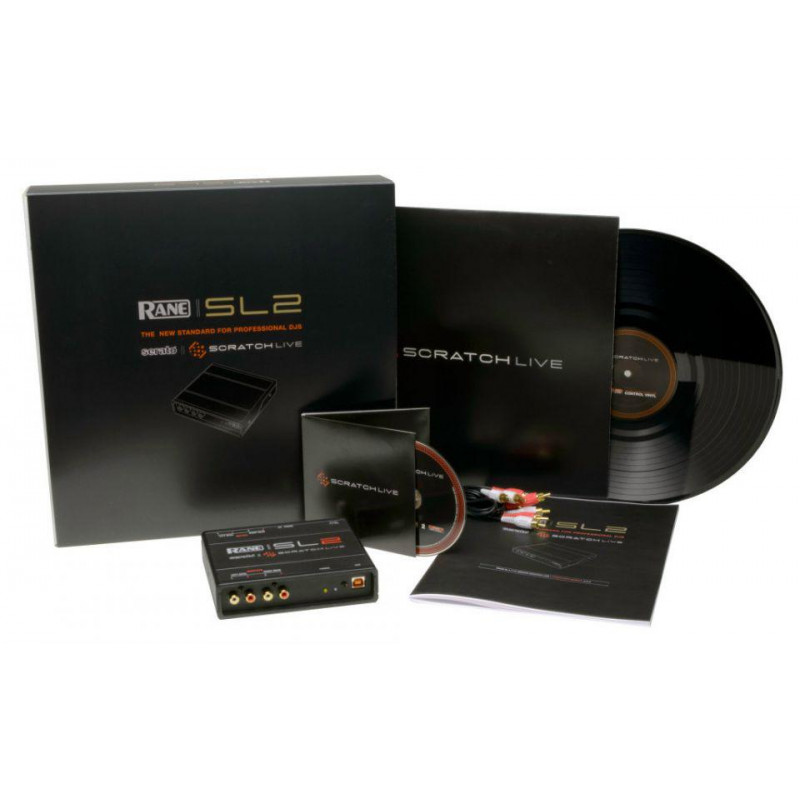

Serato Scratch Live SL2

In Stock

More info

Specifications:

  • CODEC: 24-bit PCM
  • 44.1 kHz Sample Rate Frequency Response: -0.5 dB @ 20 Hz, -1.22 dB @ 20 kHz
  • 48 kHz Sample Rate Frequency Response: -0.5 dB @ 20 Hz, -0.40 dB @ 20 kHz
  • Sample Rate Selection: 44.1 / 48 kHz selected in software control panel
  • Deck Inputs: Unbalanced RCA with CD / Phono switch
  • Phono Maximum Input: 70 mV rms @ 1 kHz
  • Phono Gain: 33 dB at 1.0 kHz
  • Line Level (CD) Maximum Input: 3 Vrms
  • Line Outputs: Unbalanced RCA
  • THD+N: 0.007% @ 1 kHz
  • Maximum Output: 3 Vrms
  • Dynamic Range: 101 dB A-weighted analog in to analog out
  • Dynamic Range: DAC 104.5 dB A-weighted
  • Device Latency: 1.4 ms @ 44.1 kHz and 1.3 ms @ 48 kHz
  • USB 2.0 High Speed Port Required: 3-unit load (300 mA max)
  • Blue Indicator: - Flashing while device is booting- Lit when USB 2.0 connection is detected
  • Yellow Indicator: Lit when the analog section is powered on
  • Optional RS5 External Universal Power Pack: 7.5 Volts DC, P6 barrel plug
  • Power: Turn On/Off Muting: Yes
  • Galvanic Isolation: - Audio I/O is actively isolated from USB port and external power- Auto-selects USB or external power without interruption
  • SL 2 Unit: Size 5.5 in. x 5 in. x 1.3 in. (14.1 x 12.5 x 3.3 cm)
  • Weight: 5 pounds (2 kg)

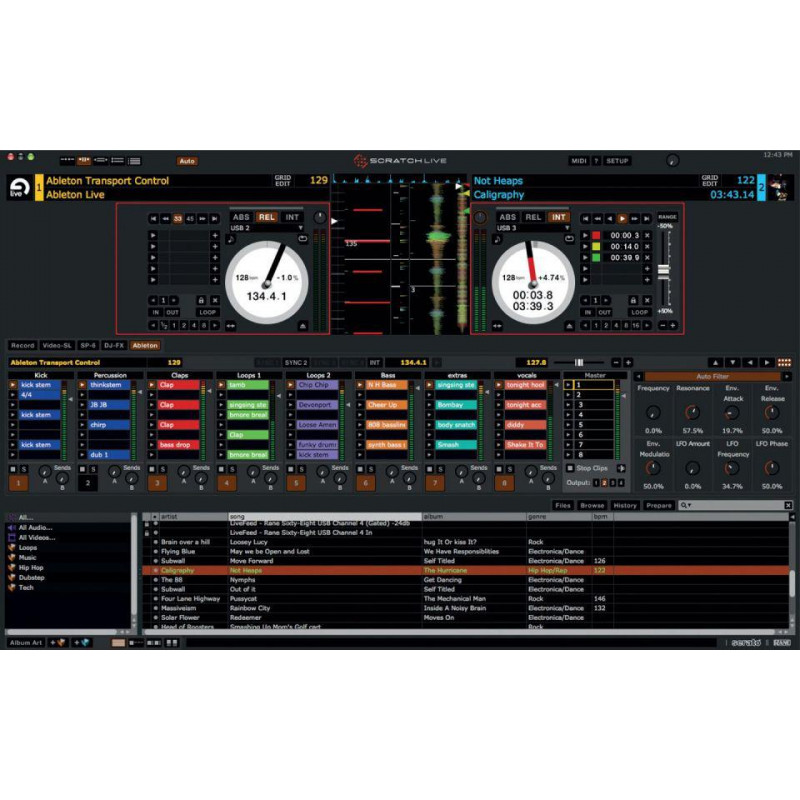

Scratch Live System Requirements

  • Available 2.0 USB port.
  • 1024 x 768 screen resolution.
  • 5400 RPM hard drive. 7200 RPM for high-resolution audio playback.
  • 2 GB RAM (a large library will like more RAM).
  • Mac
    • Intel 1.83 GHz Core Duo or better.
    • OSX 10.5.8 or higher.
  • WINDOWS
    • Intel processor, 2.2 GHz Core Duo or better.
    • Windows XP with Service Pack 3 or higher.
    • Windows Vista with Service Pack 2 or higher.
    • Windows 7, recommended over Vista.
