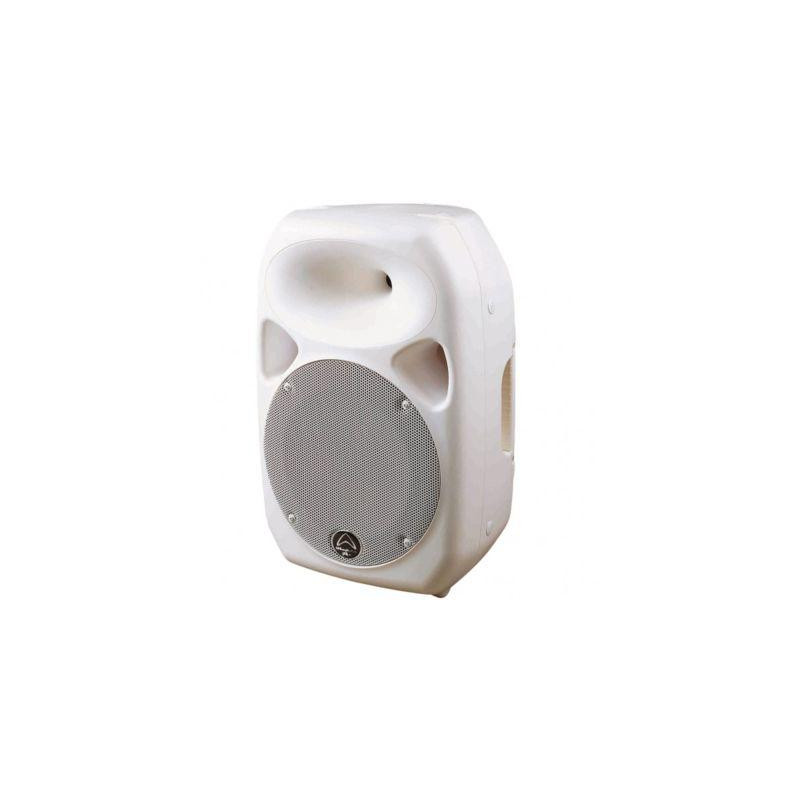

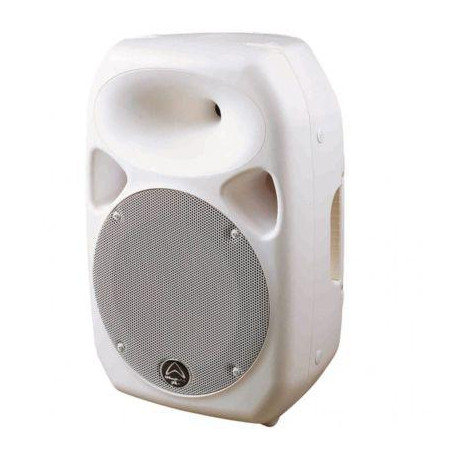

Wharfedale - Titan 8 Passive BLANCO View larger

Wharfedale - Titan 8 Passive BLANCO

Titan 8 Passive BLANCO

TITAN 8 PASSIVE 150W @ 8 Ohm. White

106,00 €

-

In Stock
Usually ships in 2 - 4 business days.

More info

Specifications:



GENERAL INFO
SYSTEM TYPETwo way passive speaker system
FREQUENCY RESPONSE +/- 3DB70Hz-20kHz
SENSITIVITY (DB 1W@1M)96dB SPL
SYSTEM IMPEDANCE8 ohms
MAXIMUM SPL PEAK DB124dB SPL Peak
POWER HANDLING (WATTS)
CONTINUOUS RMS150W
PROGRAM300W
PEAK600W
LF DRIVER
LF DRIVER SIZE MM / INCHES205mm / 8 ", Die-cast aluminium frame
LF VOICE COIL SIZE38.86mm / 1.53 "
HF SECTION
HF VOICE COIL SIZE30mm / 1.2 "
HF TYPECompression Driver
HF DIAPHRAGM MATERIALCloth
HORN DISPERSION (H X V)90° x 60° averaged 2kHz to 10kHz
HF EXIT SIZE MM / INCHES25mm / 1 "
CROSSOVER SECTION
CROSSOVER FREQUENCY / FILTER2.4kHz, 12dB per octave
HF DRIVER PROTECTIONBulb
PHYSICAL FEATURES
FINISHWhite
CONSTRUCTION MATERIALInjection Molded Polypropylene
HANDLE QUANTITY1 built-in carry handle
SUSPENSION POINTS8 M6 threaded inserts including 4 M6 threaded inserts on bottom in OmniMount 60.0-type footprint
STAND ADAPTER - BOTTOMPole-mount receptacle with lock screw, Optional wall-mount bracket
IN / OUT PANEL (SPEAKER LEVEL)
INPUT CONNECTORNL4 Speakon ™ type x2 " 1/4" phone jack x 2 (All wired in parallel)
DIMENSIONS & WEIGHT
HEIGHT ( MM / INS )396mm / 15.59 "
WIDTH FRONT / REAR / MM / INS266mm / 10.47 "
DEPTH ( MM / INS )221mm / 8.7 "
NET WEIGHT ( KG / LBS )5.5kg / 12.1 lbs
GROSS WEIGHT ( KG / LBS )7.5kg / 16.5 lbs
