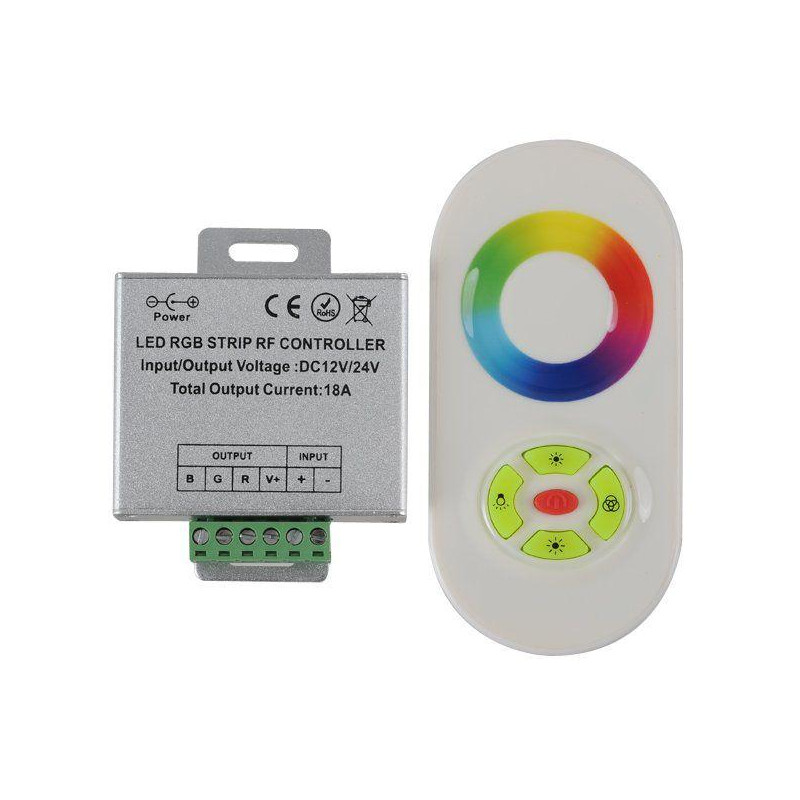

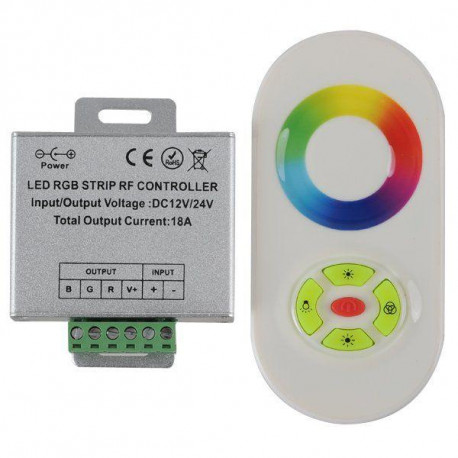

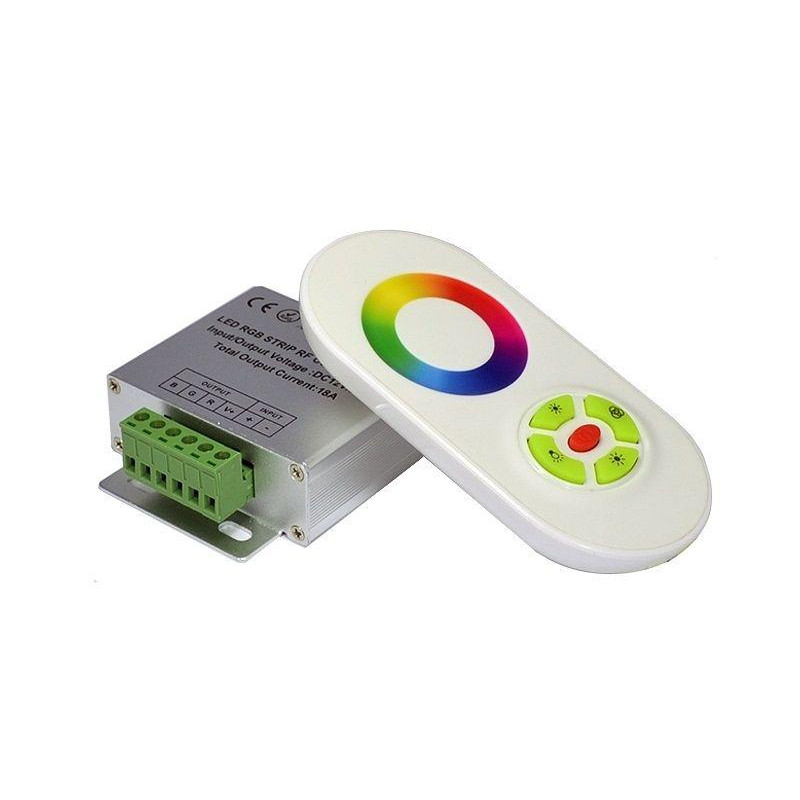

Z-B - RF-12 RGB

RF-12 RGB

12v/24v rf inalámbrico rgb led

In Stock

More info

Specifications:

  • Name: LED Controllers
  • Input Voltage: DC12V,DC24V(optional)
  • Connection type: Common anode
  • Radio frequency: 433.92MHz
  • Receiver sensitivity: -105dbm
  • Radio receive way: ASK
  • Max STDBY current: 10mA
  • Max load: 5A(each circuit)
  • Controlle mode: PWM
  • Control way: 2 ways , respectively corresponding WW,CW two color temperature
  • Static power consomption: 30LED/M : ≤5.4W      60LED/M:  ≤10.8W
  • Static current: 30LED/M : 450mA      60LED/M:  900mA
  • Working temp:  -20~80 degrees
  • Material :Controller: aluminum    remote: ABS+PC
  • Life span: 40,000h
  • Size:
    • Remote:114×56×22mm
    • Controller: 65×38×25mm
  • Packing:8x7.5x13cm/set
  • G.W.:0.15kgs/set
  • Telecontrol distance: 20m
  • no UV radiation, no stroboflash
  • Safty Assurance: CE, RoHS
  • Max no. of memory telecontroller: 6pcs
