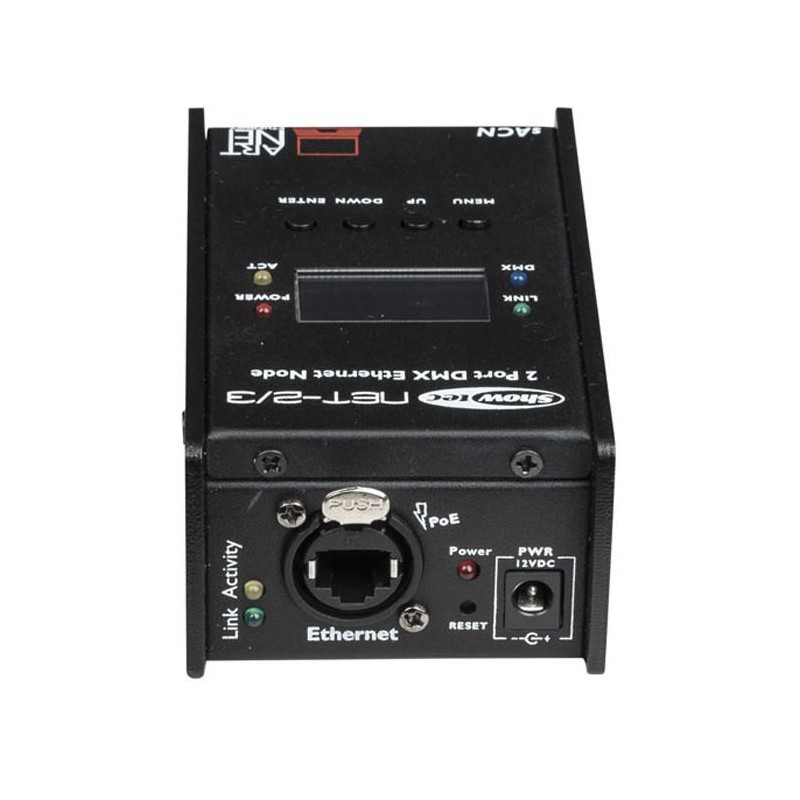

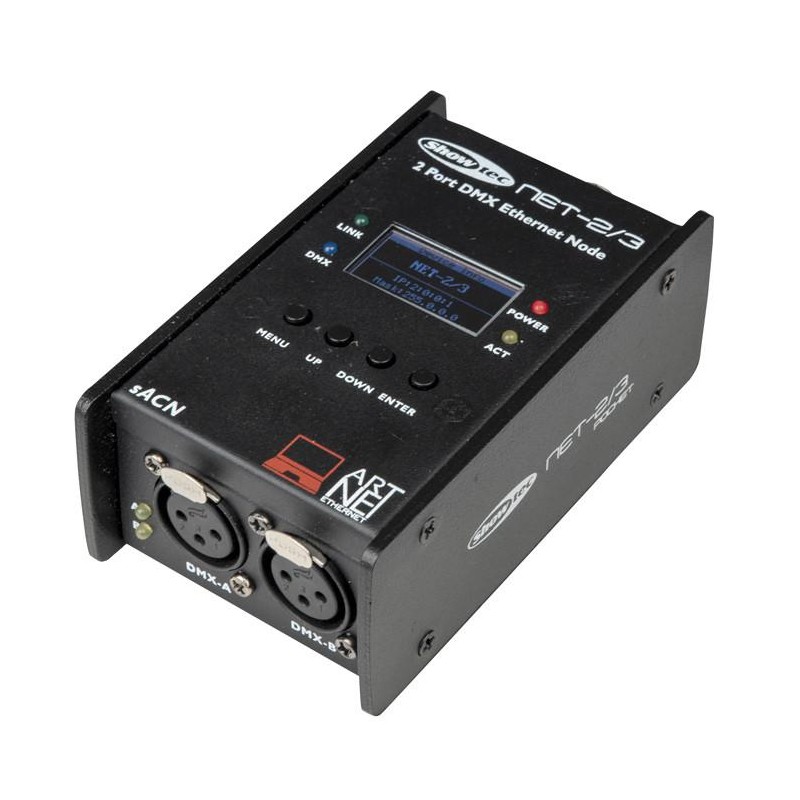

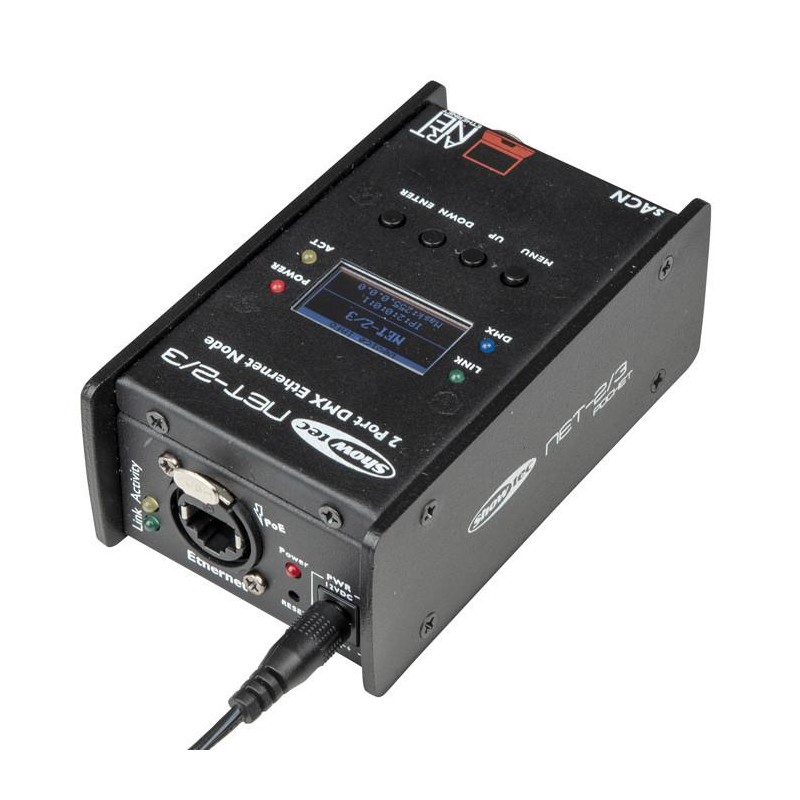

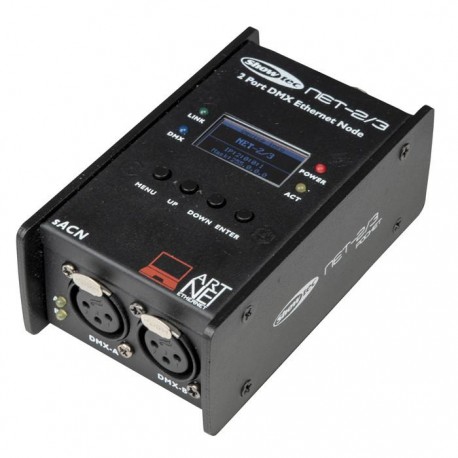

Showtec - NET-2/3 Pocket

NET-2/3 Pocket

Art-Net 2-channel node, 3-pin XLR

In Stock

Europe Warehouse: 69

More info

Supports ArtNET and sACN protocol
2 input or output DMX universes
Remote configuration interface
PoE (IEEE 802.3af)


The Showtec NET-2/3 Pocket and NET-2/5 Pocket nodes are advanced network routing devices that convert the sACN signal to DMX-512 and vice versa. Power input can be supplied by Power-Over-Ethernet (POE) eliminating the use of a 12V power supply. Up to a maximum of 1024 channels can be transmitted on a single CAT5 cable. All settings can be configured through a simple menu on the graphic display and the buttons on the front. The settings can also be configured through the web browser function that provides you (remote) access via your desktop or laptop computer and your network. Default login account: Admin, password: Admin.


Electrical connections and specifications
Power supply
Power over Ethernet (PoE)
And it is
Power Consumption
8 W
Power Connector in
Low Voltage DC plug
DMX Connector
XLR 3P In / Out
DMX Connector in
XLR 3P
DMX Connector out
XLR 3P
Data Connector in
etherCON
Mechanical specs
Length (mm)
115 mm
Width (mm)
67 mm
Height (mm)
44 mm
Weight
0.3 kg
IP Rating
IP20 (indoor use only)
Housing
Metal, Plastic
Color
Black
Product specifications
LED Indicators
Operation mode, Power, Signal
Thermal characteristics
Maximum Ambient Temperature
40 ° C
Minimum Operating Temperature
0 ° C
Certifications / Compliance
Reference Standard
EC
Parts included
Included Cables
Low voltage DC plug cables
Included Accessories
Adapter
Control and programming
Control Mode
Art-Net, DMX
Protocols
Art-Net, DMX, sACN, TCP-IPv4
Display
OLED
Universes
two
