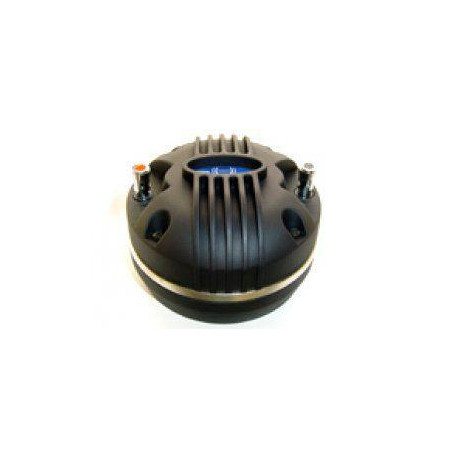

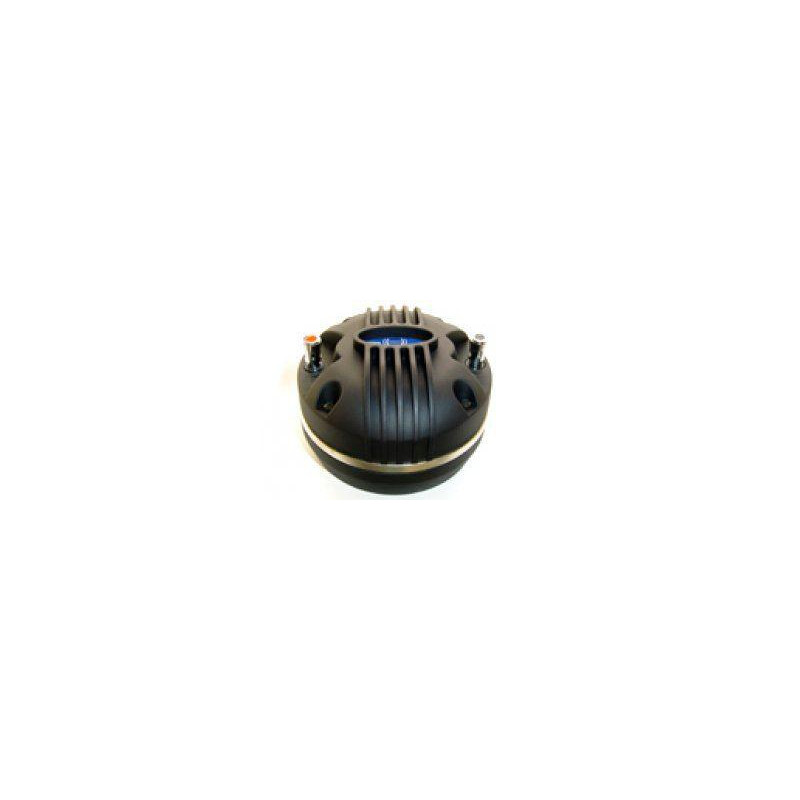

Beyma - CP750ND View larger

Beyma - CP750ND

CP750ND

Hight frequency compression driver

In Stock

More info

Specifications:

  • Throat diameter 49 mm. 2 in.
  • Rated impedance 8 ohms
  • Minimum impedance 7.4 ohms @ 3.5 kHz
  • D.C. Resistance 5.5 ohms
  • Power capacity * 60 w AES above 0.8 kHz
  • 80 w AES above 1.5 kHz
  • Program power 120 w above 0.8 kHz
  • 160 w above 1.5 kHz
  • Sensitivity ** 112 dB 1 w @ 1m coupled to TD-400N horn
  • Frequency range 0.6 - 20 kHz
  • Recommended crossover 800 Hz or higher (12 dB/oct. min.)
  • Voice coil diameter 72.2 mm. 2.87 in.
  • Magnetic assembly weight 3.1 kg. 6.82 lb.
  • Flux density 2.2 T
  • BL factor 11.5 N/A
