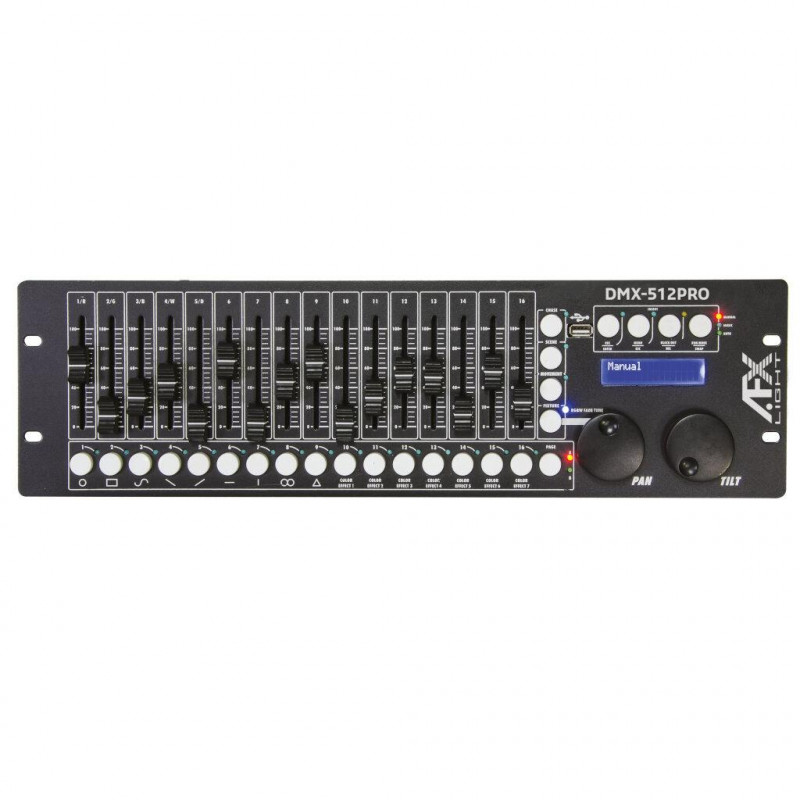

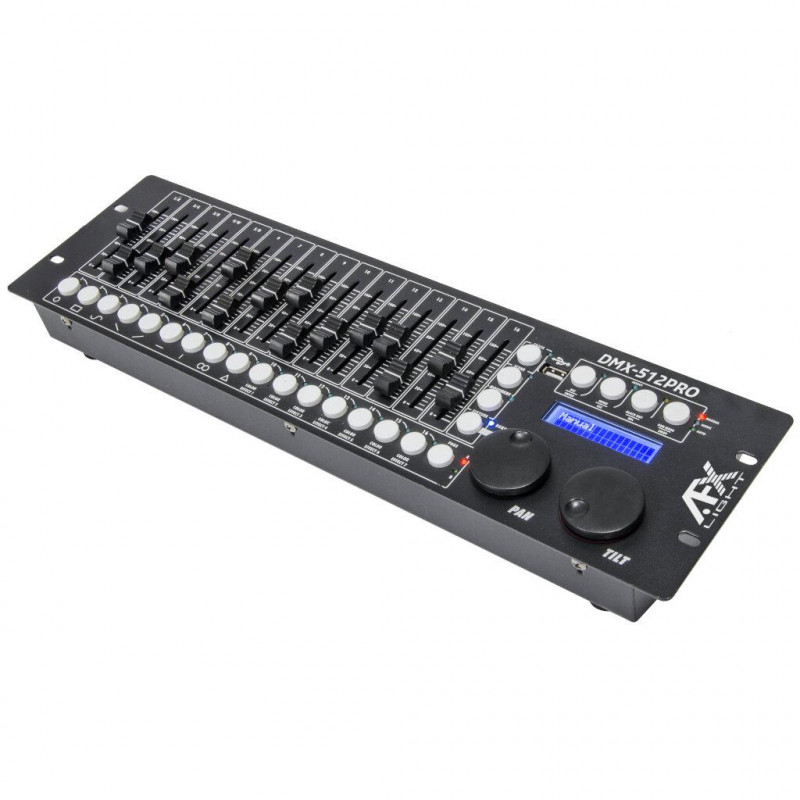

DMX controller for lighting such as moving heads, scanners and LED projectors with RGBW color mixing.
512 DMX channels freely assignable to 32 control channels (softpatch)
For 28 devices with 18 control channels each
USB port for saving programming data
Fast programming thanks to 9 movement sequences and 7 integrated color effects (PAN/TILT position , fade duration and play duration adjustable)
Memorization of 32 programmable chases with 100 scenes each
Manual Chase mode, controlled by time or music
32 programmable scenes
Control of 2 levels of DMX equipment, each with 18 channels
16 DMX channel sliders
2 wheels for pan & tilt
Blackout function
Sound controlled via built-in microphone
Backlit LCD (2 x 16 characters)
RDM compatible (DMX address setting and identification)

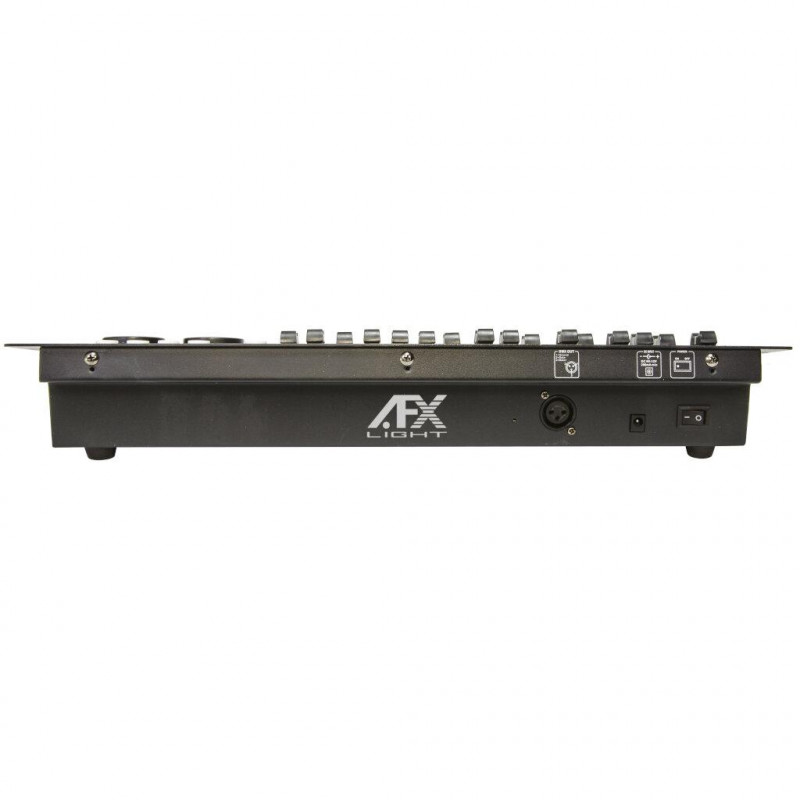

3 Pin XLR plugs
Firmware upgrade via USB
Installation possible in a 3U rack

Technical specifications.
