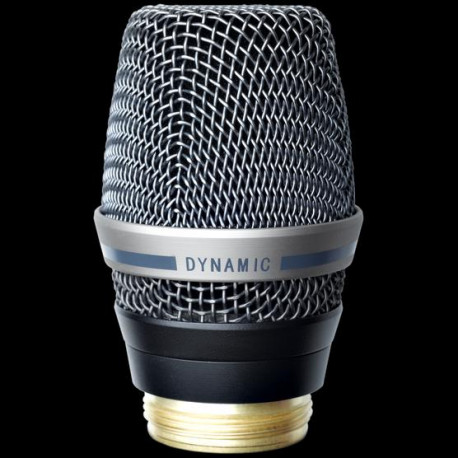

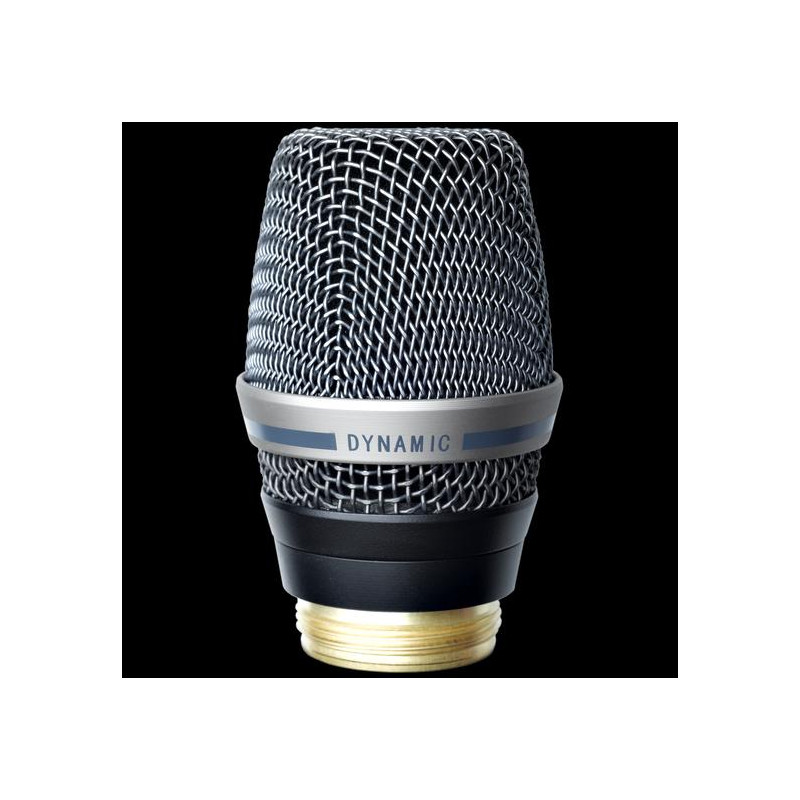

AKG - CABEZA MIC. D-7 WL-1 1 View larger

AKG - CABEZA MIC. D-7 WL-1

CABEZA MIC. D-7 WL-1

Reference dynamic microphone head

In Stock

Spain Warehouse: 1

More info

The D7 WL1 reference dynamic vocal microphone head creates the subtle and opened sound of a condenser capsule with the powerful resonance of a dynamic microphone. The patented dual layer Varimotion™ diaphragms can vibrate unhindered which results in an extraordinary crisp and clean sound. The unique laminated material damps high resonance peaks in the frequency response. In combination with the tight, supercardioid polar pattern enables the D7´s outstanding high gain before feedback.

The D7 WL1 features a precision metal dust filter that provides a consistent protection for the diaphragm, ensuring an extra long life. It is designed to fit the HT4500 and DHT800 handheld transmitters.

Item# 3082X00030

General Specifications

AKG Wireless System Compatibility DMS800 and WMS4500 wireless systems (DHT800 and HT4500 handheld transmitters)
Type Dynamic
Polar Pattern Supercardioid
Capsule Patented dual-layer Varimotion diaphragm
Isolation Dual shock mount capsule and integrated humbucking coil
Grille Spring-steel wire-mesh
Frequency response 70 - 20000 Hz w/ internal 80Hz high pass filter
Sensitivity 2.6 mV/Pa
Maximum SPL 147dB @ 1% / 156dB @ 3%
Equivalent Noise Level 18dB(A) to IEC 60268-4

Application

Live Vocal Yes
Live Instrument Yes
