SPECIFICATIONS
SOURCE:
• Pixel Pitch: 3.91mm
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 128x128; 65536 per square meter
• Size: 500 x 500 x 75mm
• Module Quantity: 4
• Weight: 7.5kg.
FEATURES:

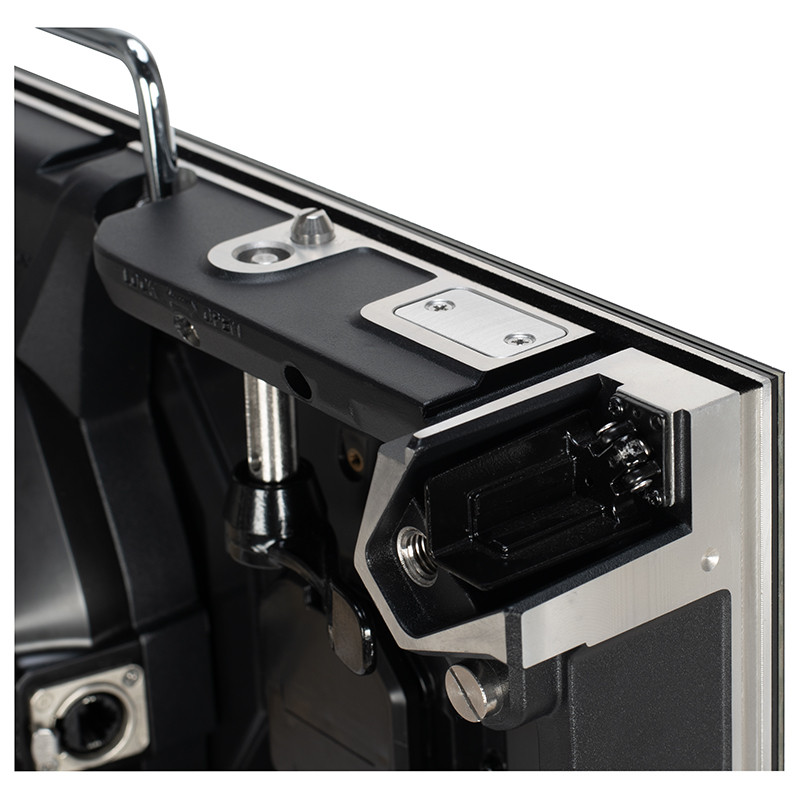

• Corner Protectors to protect the corners of the EVS3 during transport, set-up and teardown

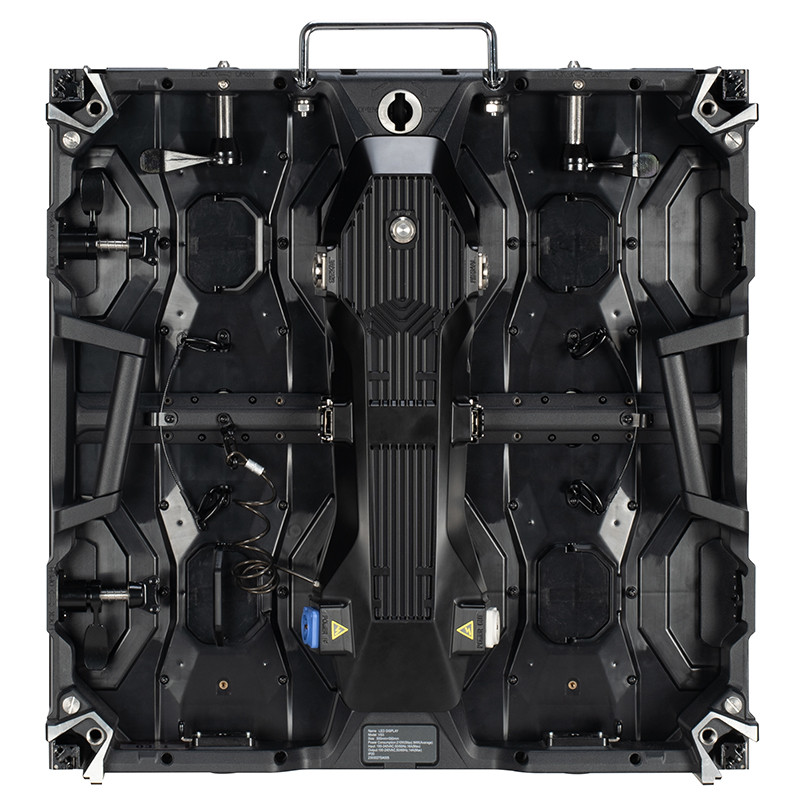

• Front and rear serviceable: 4 easy to replace video modules on each panel

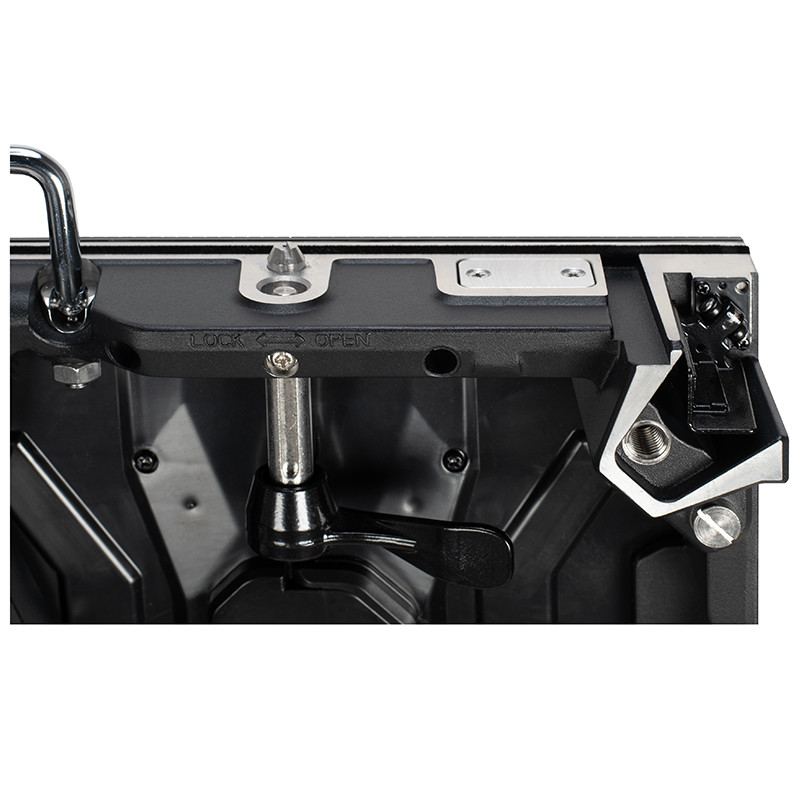

• Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall
MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
• Brightness: 800 NITS
• View Angle: Horizontal 160°/Vertical 140° @ 3m.
• Gray Scale: ≥14-bit
• Display Color: 256
• Brightness Adjustment: 0~100% 100 Levels
• Contrast ratio: 5000:1
• Processing: 14-bit
POWER SUPPLY:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 120W/per panel
• Ave. Power Consumption: 48W/per panel
• Connections Power/Data: Locking power In/Out/Locking RJ45
CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/16
• Refresh Rate: 3840Hz
• Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL:
• Operating Temp / Humidity: -20°C + 40°C/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
OPTIONAL ACCESSORIES:
• VSRB1: Rigging Bar – Hang up to 20 EVS3 Video Panels vertically
• VSRQR: Quick Rig - Attaches and locks on to the rear of EVS3 so it can be fastened to a 2" pipe or truss
• VS1RSB Rear Support Bracket for EVS3
• VSSCSB: Single Column Support Base
• Novastar VX400: Video Processor
• Novastar MCTRL-300: Video Processor
• Arkaos Media Master: Video Software
• Arkaos GrandVJ 2.0: Video Software
INCLUDED ITEMS:
•Locking Power Link Cable
•Locking RJ45 Link Cable
CERTIFICATIONS:
This product was developed for temporary use only! It should not be permanently installed.
