Source:
• Light Source: 12 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
Photometric Data:
• Beam angle: 5° to 30°
• Field angle: 9° to 50°
• CRI: 84.4
• CRI R9: 67.9
• Lumens: 4900
Effects:
• Motorized Zoom (5° to 30° Beam Angle, 9° to 50° Field Angle)
• Linear Color Temperature Control (2700K to 6500K)
• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
• 16-Bit Fine Color Control (Red, Green, Blue & Lime)
• 64 built-in Color Macros

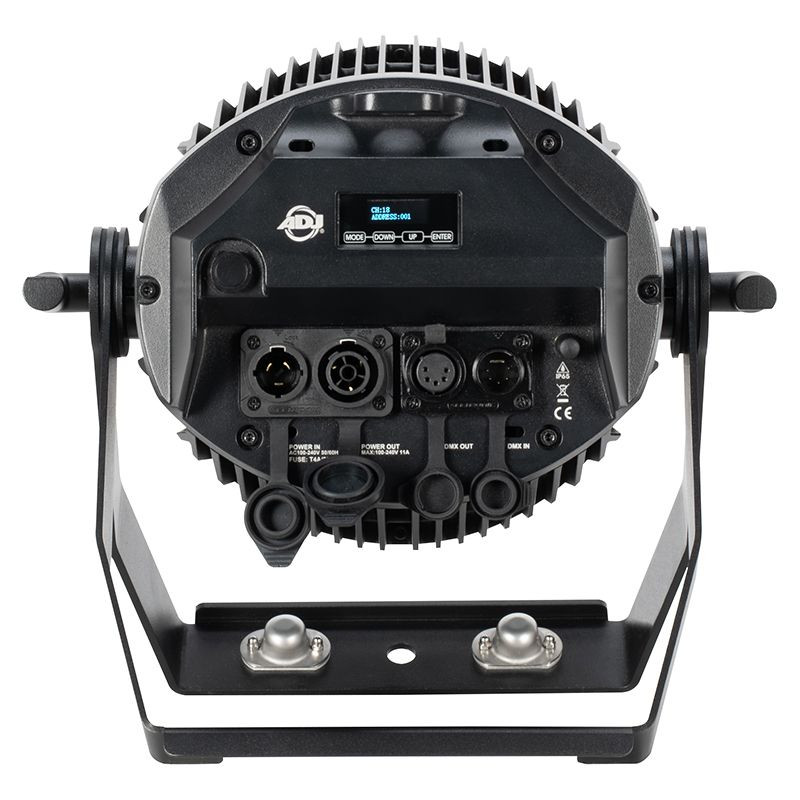

Control / Connections:
• 4-button, DMX digital display on rear panel
• Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
• Wireless DMX on-board
• Supports RDM (Remote Device Management)
• With Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Squa, S~Curve)
• Adjustable Refresh Rate (14 presets from 900 ~ 25,000Hz)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 6 DMX Modes: 6, 9, 10, 12, 15 & 18-channel
• Quiet fan mode
Construction:
• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All aluminum construction
• Marine Grade Coating: C3
• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
• Locking, outdoor In/Out Power connectors
• Data linkable via 5-pin XLR DMX connections
• Scissor Yoke & safety eye
Electrical / Thermal:
• Multi-voltage operation: AC 100-240V, 47/63Hz
• Daisy chain: 6 @ 120V, 12 @ 220V
• Max power: 227W
• Ambient Operating Temperature Range: -10°C ~ 45°C
Dimensions / Weight:
• Dimensions (LxWxH): 222x316x367mm
• Weight: 7.5 kg
Approvals / Ratings:
• cETLus Pending
• IP65
Included Accessories:
• (1) Power Cord
