Adam Hall - 172532 View larger

Adam Hall - 172532

172532

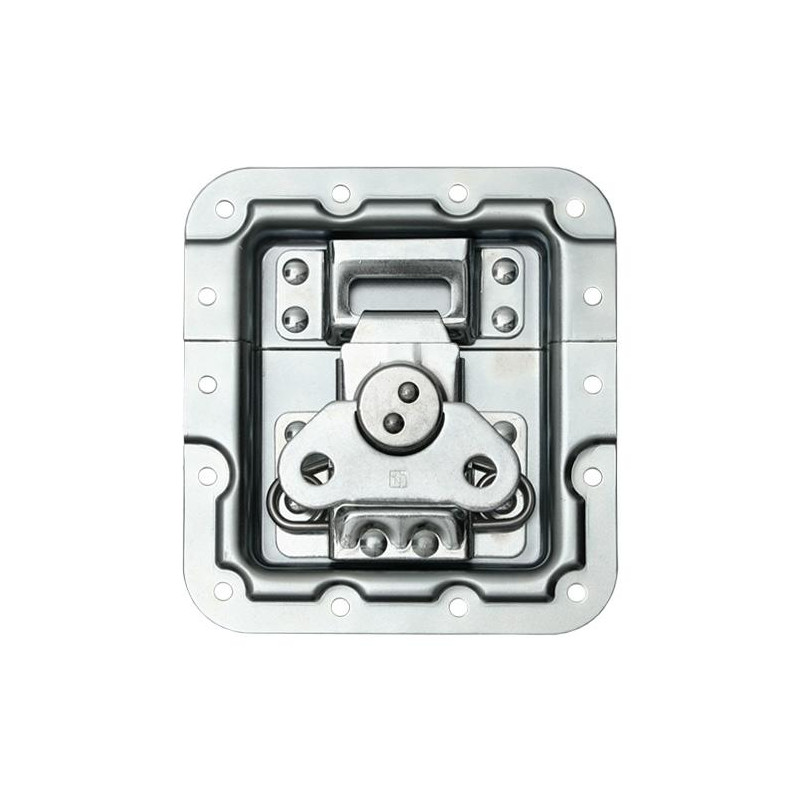

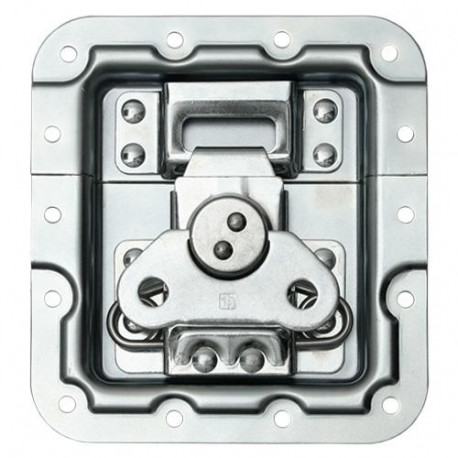

Adam Hall Hardware 172532 Butterfly Latch V3 short cranked 14 mm deep with Rivet Protection. Price per piece.

In Stock

More info

The same Large Butterfly "V3" with "push-down" function as in the 172511 but in a shorter dish. The entire mechanism is identical thereby having the same strength and loading capabilities. The dish is shorter giving a chunky look and easier use in smaller cases and flatter lids.

Our V3, V4 and V5 Butterflies have a patented ´push-down` mechanism that lifts the hook out of the keeper plate on opening and leads it back into the dish on closing. This offers an ideal handling and minimises risk of injury and damage.

Product type
Catches

Type
Butterfly Latches

Material
steel

Surface
galvanized

Mounting hole diameter
5.1 mm

Lockable
no

Dish type
cranked

Dish size
short

Dish depth
14 mm

Rivet protection design
yes

With push-out spring
no

Push-flat function
yes

Weight
0,454 kg
