Adam Hall - EUROTRUSS ROLL BOARD 381044

EUROTRUSS ROLL BOARD 381044

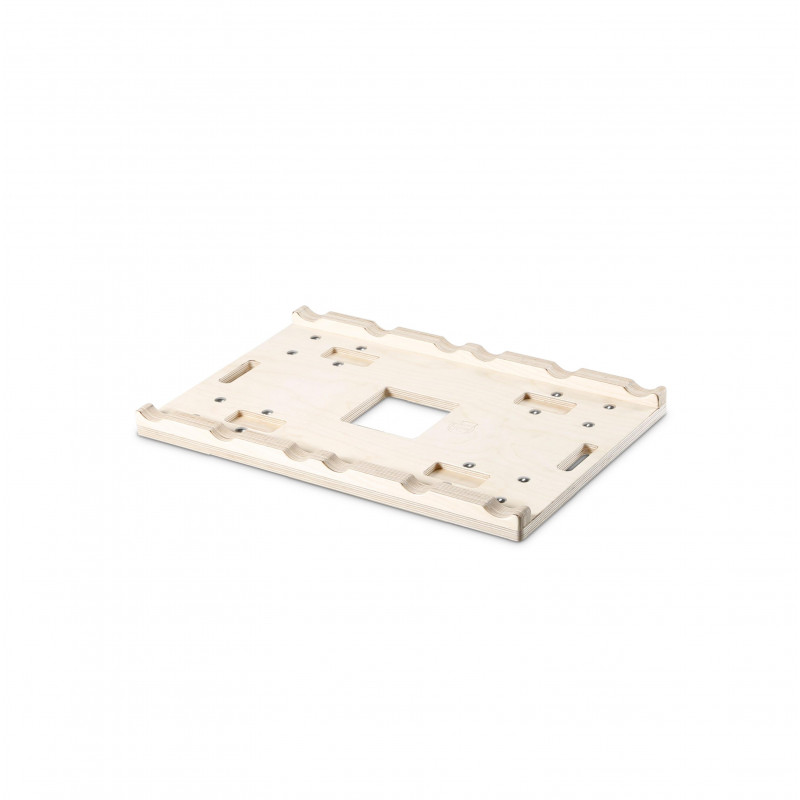

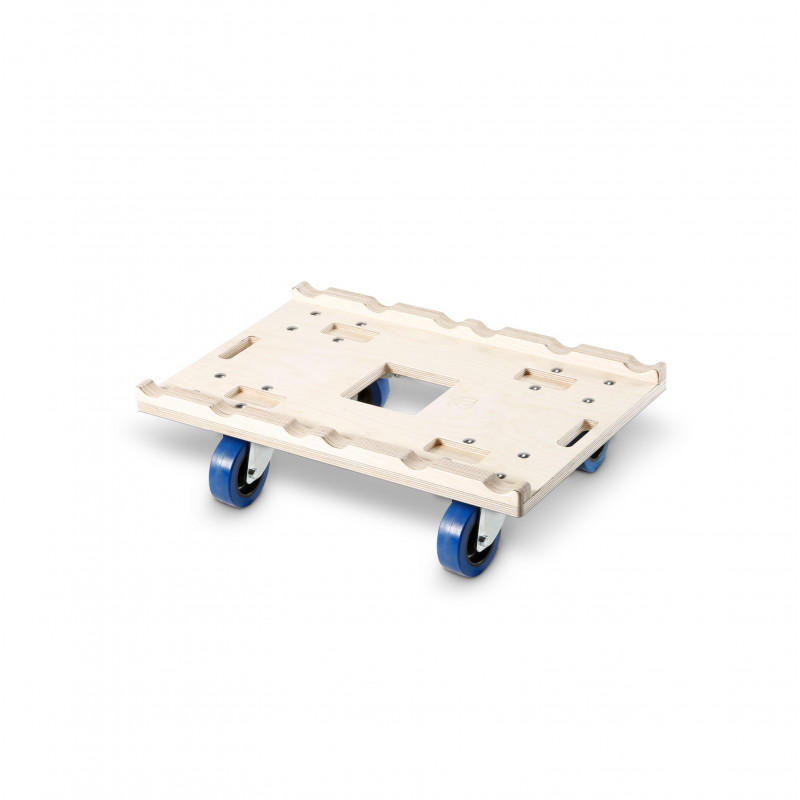

EUROTRUSS Roller Board with 4 x 100 mm Rolls

137.03€%17.54 You save 24.03€
113,00 €

Add to wishlist

In Stock

Europe Warehouse: 230

More info

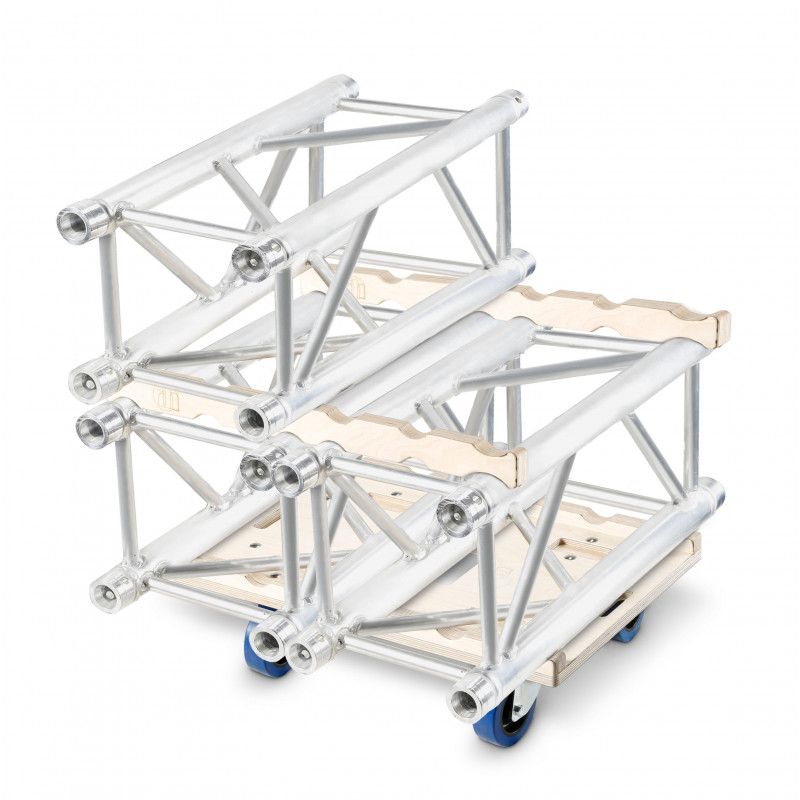

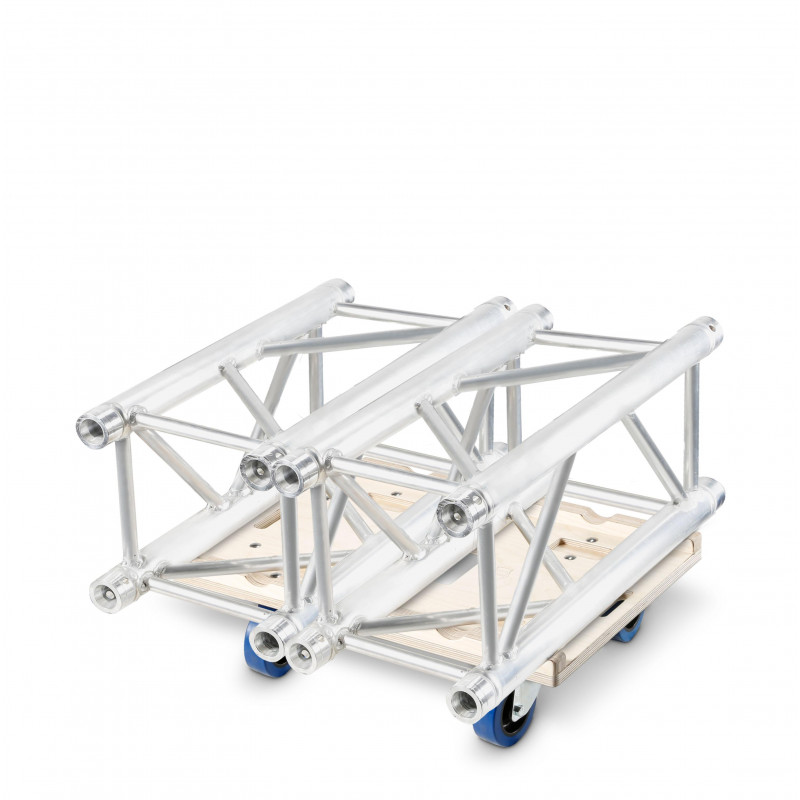

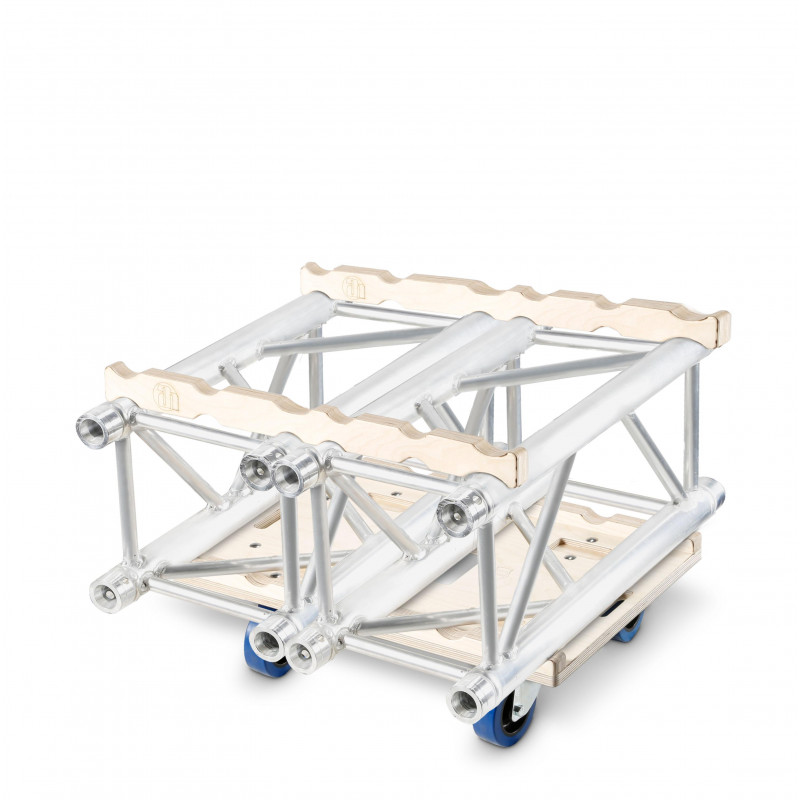

The Truss Stacker Roller Board System combined with the 'Interface Stacker 382100' enables easy and trouble-free stacking of trusses for safe transport. The birch plywood roller boards are available in versions with 2 x 2.3, 3 and 4 castors and are suitable for 3 and 4 point trusses.

  • Universally suitable for use with 2 x 2, 3 and 4 point trusses
  • Version is made with robust birch plywood
  • With side recesses for running through safety belts
  • Includes 100 mm castors and assembly accessories
  • Ideal stackability for storing/transporting the roller boards, thanks to their stacking recesses

Product typeTruss Accessories
Typecastor boards
Materialbirch multiplex
Material thickness18 mm
Surfacehoned
Colournatural
Number of casters4
thereof Braked2
Wheel diameter100 mm
Manufacturer of castorsAdam Hall
Height38.5 mm
Width400 mm
Length611 mm
Suitable forEurotruss
For truss with outer tube dimension288 - 291 mm
Weight7,4 kg

381044_AHACCESS_Eurotruss_Seriesannouncement_EN.pdf381044_AHACCESS_Technical_Drawing.dwg381044_AHACCESS_Technical_Drawing.pdf
