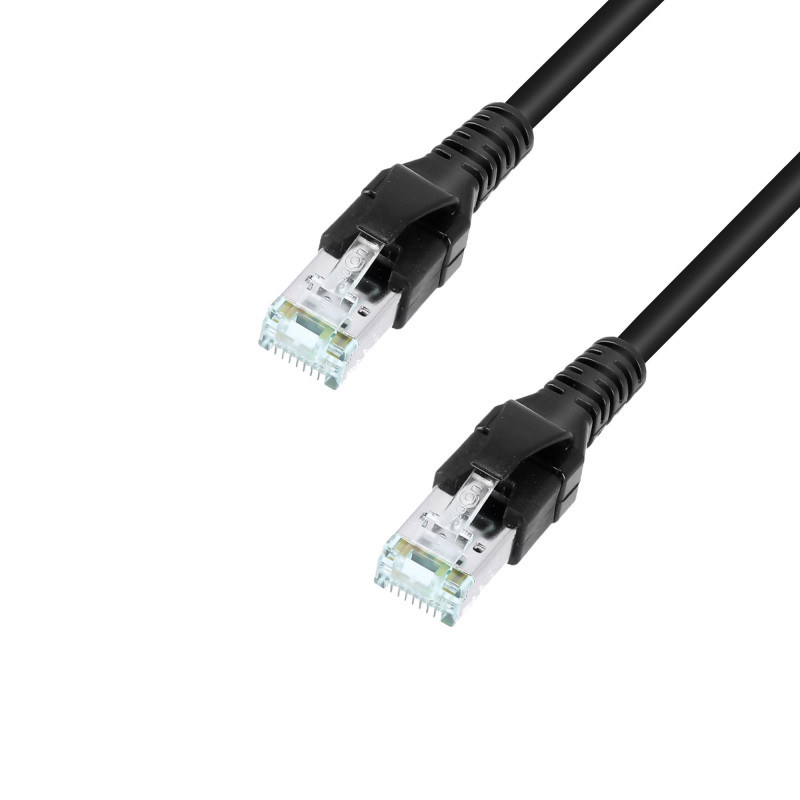

Nowadays, a fast network cable is essential for every event, whether on stage, in fixed installations, or at home. Adam Hall now offers the new 5-Star Cat. 6a cable. The high-quality Cat. 6a cable from our 5-Star Series comes in a four-twisted pair version and is our high-quality professional cable for studio or outdoor applications. It can be used in all areas related to event technology. Cat. 6a is downlink compatible and can therefore also be used for Cat. 6 and Cat. 5e transmissions. The cable used is an original Draka® Cat. 7a cable and is equipped with high-quality original Neutrik® etherCON connectors (or Hirose® RJ-45 connectors), making this cable a professional partner for any event.
- Professional network cable from our 5 Star Series
- Original Hirose® RJ45 connectors
- The original Draka® Cat.7a cable is used as a cable
- Very robust, also suitable for outdoor applications, very flexible
- Four pairs of individually shielded twisted wires
General
| Cable length | 30 m |
| Cable cover | PVC (Polyvinyl Chloride) |
| Cable diameter | 6.4 mm |
| Cable color | Black |
Plug
| Model name pin 1 | Hirose TM 31 WOB & Neutrik NE8MX-1 |
| Model name pin 2 | Hirose TM 31 WOB & Neutrik NE8MX-1 |
Line
| CAT standard | Cat.6a |
| Conductor material | OFC (Oxygen-Free Copper) |
| Driver's section | 8 x 0.14 mm² |
| Shield | Braided copper shielding |
Environment
| Room temperature | -40 - 70 °C |
Dimensions and weight
