Adam Hall - 8101 PSDT 0150 N 1 View larger

Adam Hall - 8101 PSDT 0150 N

8101 PSDT 0150 N

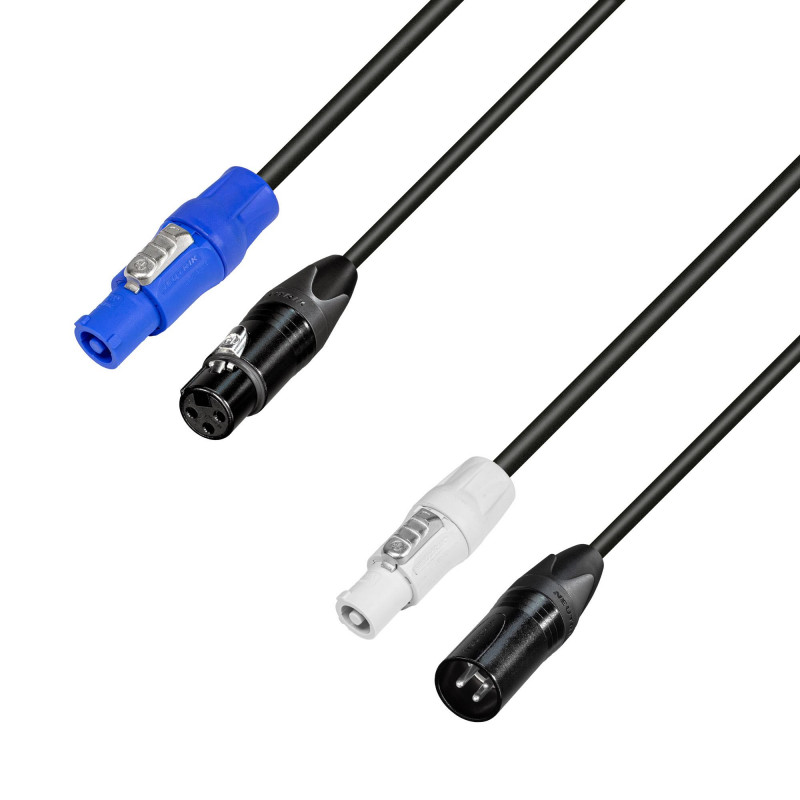

Power & DMX Cable PowerCon In & XLR female to PowerCon Out & XLR male 1.5 m

84.90€%43.46 You save 36.90€
48,00 €

Add to wishlist

In Stock

Europe Warehouse: 230

More info

  • No more cable mess with just one cable to your equipment
  • For parallel power and DMX signal transmission
  • Equipped with Genunine Neutrik XLR and PowerCon connectors
  • 2 x 0,22mm² cross section for DMX
  • 3 x 1,5mm² cross section for power

Product typePre-assembled Cables
TypePower / Signal Cable
Length1.5 m
Splice length40 cm
ColourBlack
Overall diameter15 mm
Jacket materialPVC
Connector 1-ANAC3FCA
Connector 1-BNC3FXX-BAG
Connector 2-ANAC3FCB
Connector 2-BNC3MXX-BAG
Assembly mains cable3 x 1.5 mm²
AWG24
Cross-section0.22 mm²
Assembly signal conductor2 x 0,22 mm²
IsolationPE 1.7 mm
Inner conductor construction7 x 0.20 mm, bare copper
Number of internal conductors2
Conductor resistance85 ohm/km
Current carrying capacity55 pF/m
Surge Impedance120 ohm/km
Operating Temperature-20 - 70 °C
ShieldPE filler, tinned copper braided shielding with 96 x 0.10 mm + AL
Weight0,43 kg
