Adam Hall - 874 E 01

874 E 01

ERGO 19" Rack Drawer 1 U

In Stock

Europe Warehouse: 230

More info

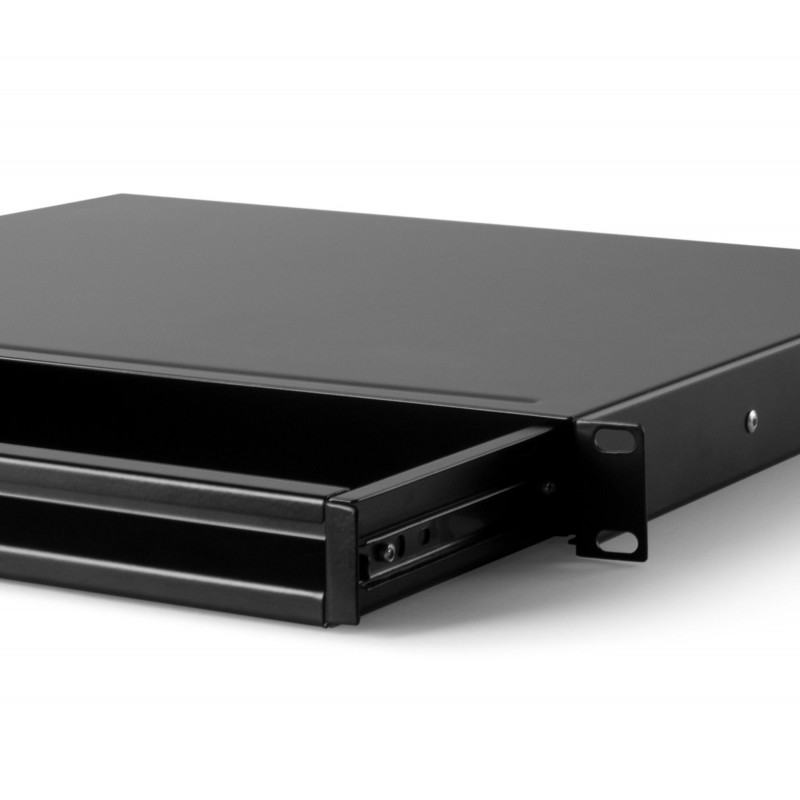

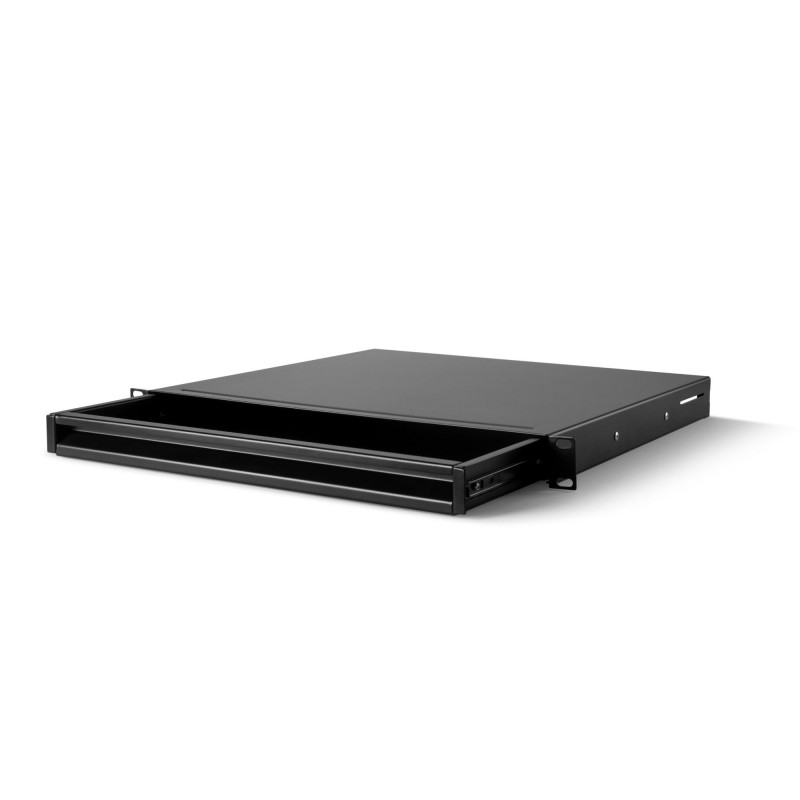

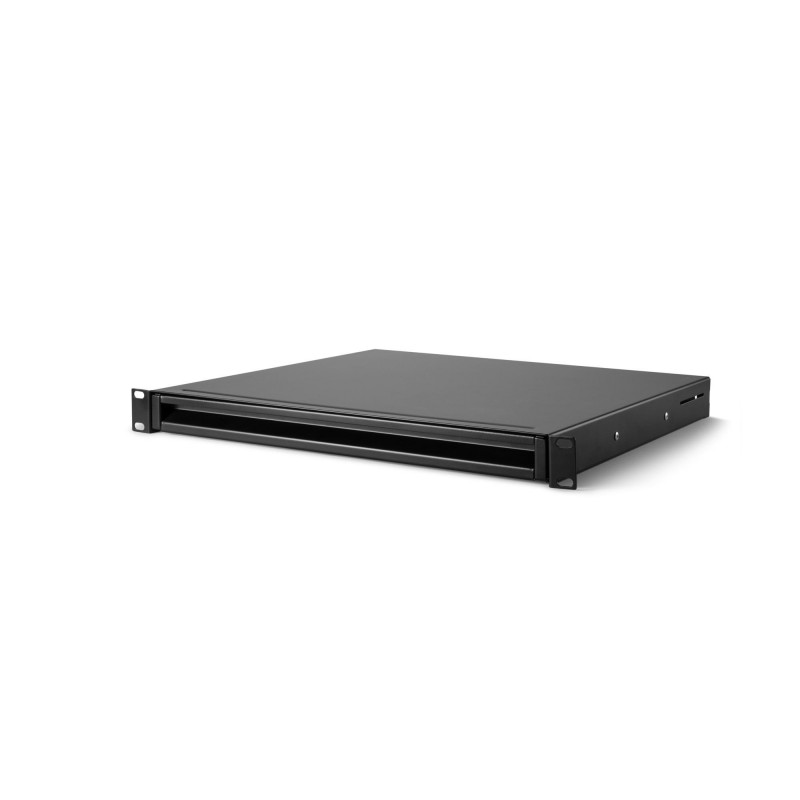

The ERGO is a very affordable rackmount drawer with heavy-duty 1.5 mm steel construction and easy, ergonomic operation. It integrates a recessed pull handle that runs the width of the drawer and a convenient push-to-close, pull-to-open latching mechanism with 1,5 kg pull force. This economy rack drawer has a black semi-gloss powder coating finish and 10 kg load capacity. It features smooth-running full extension ball bearing slides with front disconnect for easy drawer removal.

  • Heavy-duty 1.5 mm steel construction
  • Ergonomic full width pull handle
  • Pull-to-open latching mechanism
  • Full extension ball bearing slides
  • Front disconnect for easy drawer removal
  • 10 kg load capacity

Product type19" Rack Drawers
MaterialSteel
SurfacePowder coated
ColourBlack
Outside height1 U
Outside width484.6 mm
Outside depth387.8 mm
Inside height35.6 mm
Inside width405.9 mm
Internal depth358.5 mm
Max. load capacity10
Material thickness1.5 mm
Weight5 kg

874E01_AH19PARTS_Info_Sheet_AH_EN_DE.pdf
