View larger
Adam Hall - K 4 DGF 0020 IP 65
K 4 DGF 0020 IP 65

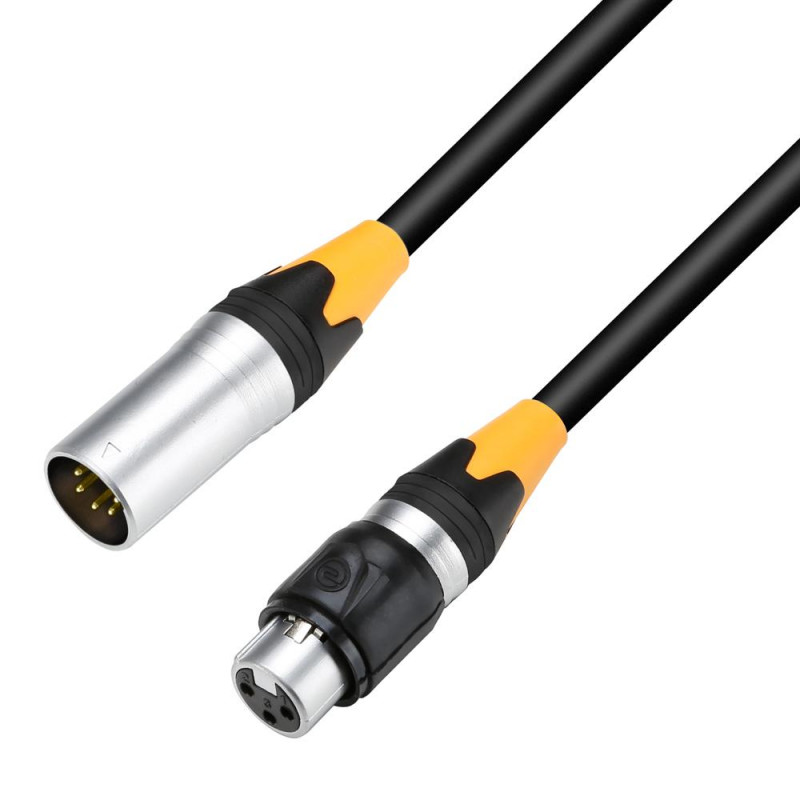

DMX Adapter XLR male 5-pin to XLR female 3-pin IP65 0.2 m
More info
This high-quality adapter uses highly flexible AES/EBU & DMX cable with twin OFC conductors, braided shielding and rugged PVC jacket. It is terminated with heavy-duty IP65 rated XLR connectors that are protected against dust and water ingress. Length 20 cm.
- 5-pin XLR/m and 3-pin XLR/f connectors with gold plated contacts
- Highly flexible AES/EBU & DMX cable
- Twin OFC conductors and braid shield
- Rated IP65
| Product type | Pre-assembled Cables |
| Type | DMX & AES/EBU Cable |
| Length | 0.2 m |
| Weight | 0,045 kg |
7121 - 7121
| Product type | Bulk Cable |
| Type | DMX & AES/EBU Cable |
| Colour | Black |
| Overall diameter | 6.5 (+/- 0.2 ) mm |
| Center conductor cross section | 0.34 mm² |
| Center conductor material | Copper, OFC |
| Center conductor construction | 7 x 0.25 mm |
| Number of internal conductors | 2 |
| Shield material | copper |
| Shield | Braided shielding |
| Line resistance | 53 Ohm(s) |
| Capacitance | 65 pF/m |
| Jacket material | PVC |
| Weight | 0,05 kg |
7889 - 7889
| Product type | Plugs and Connectors |
| Type | XLR Connectors |
| Poles | 3 |
| Gender | female |
| Cable diameter | 3.5 - 8 mm |
| Contacts | gold plated |
| Connection type | solder contacts |
| Colour | silver, black + orange |
| Housing | die-cast zinc |
| Length | 73.6 mm |
| Diameter | 16,8 mm |
| Weight | 0,02 kg |
7891 - 7891
| Product type | Plugs and Connectors |
| Type | XLR Connectors |
| Poles | 5 |
| Gender | male |
| Cable diameter | 3.5 - 8 mm |
| Contacts | gold plated |
| Connection type | solder contacts |
| Colour | silver, black + orange |
| Housing | die-cast zinc |
| Length | 70.8 mm |
| Diameter | 18.9 mm |
| Weight | 0,02 kg |
