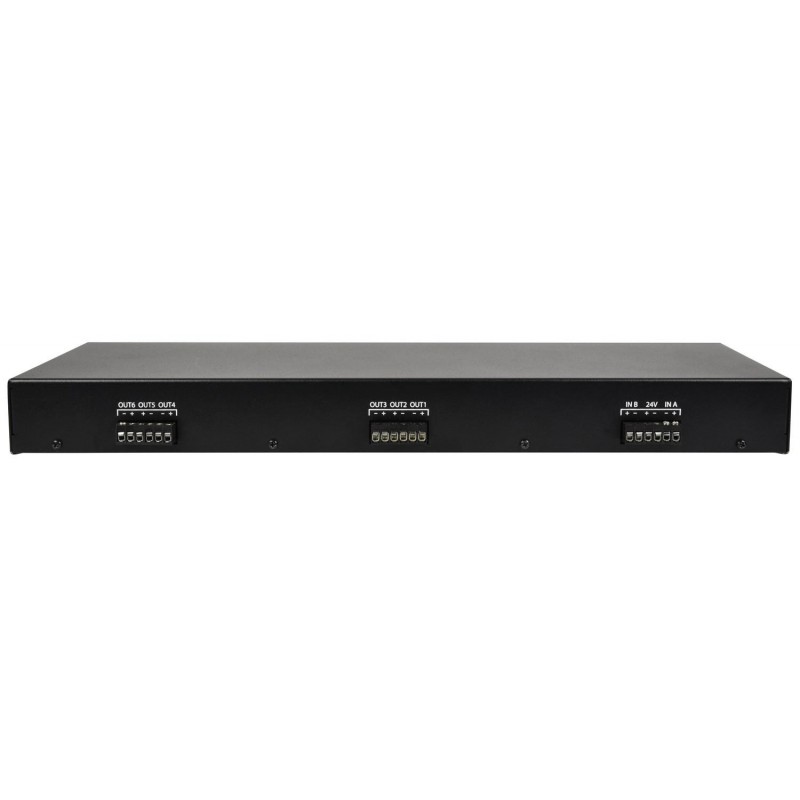

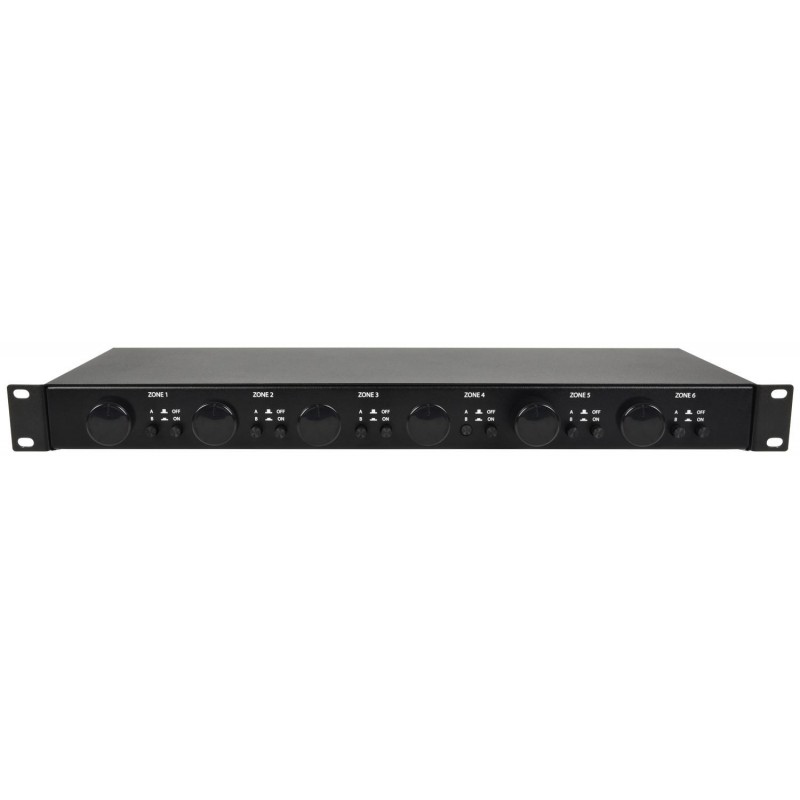

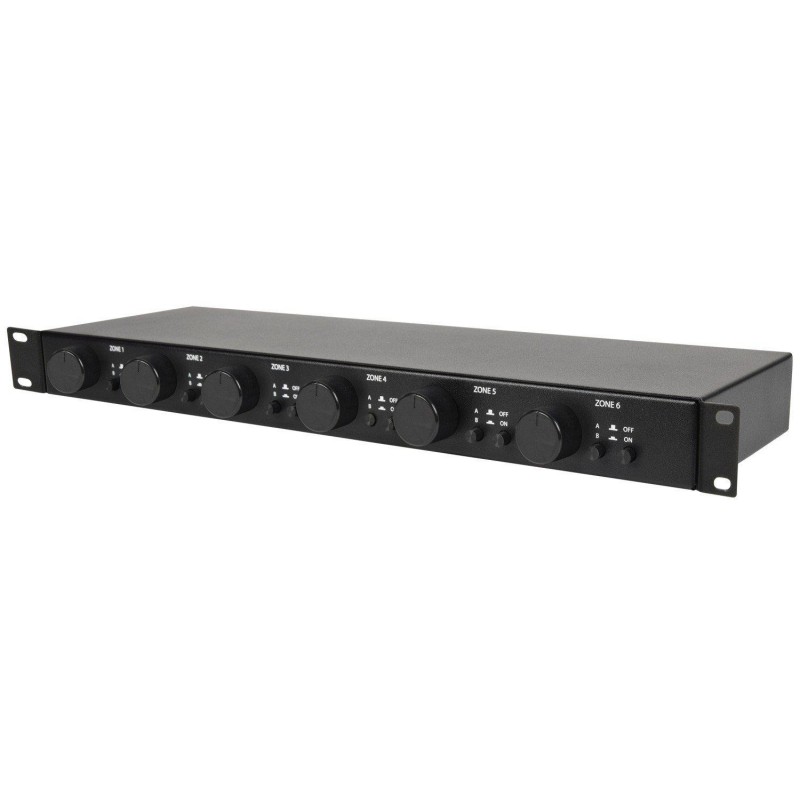

Connect an AT6 to one or two 100V Line amplifiers to provide a 6-zone source and volume solution for multi-room installations. Housed in a 1U rack-mountable enclosure, the AT6 has six output channels, which can power up to 30 W to one or more 100 V speakers. Each channel has a rotary volume switch, on / off switch, and a A / B source switch. By connecting 2 amplifier outputs to the AT6, one amplifier becomes input A and the other is input B, so each channel can have a separate choice of audio source and output level . The 24V terminals can be connected to an emergency control panel for global silencing. A completely passive and cost-effective add-on for converting single output amplifiers into a flexible zoning system.

• 6 Zones 100V Line
• Choice of 2 amp sources for each zone (A / B)
• Rotary output volume switch for each zone
• Passive operation, no power supply required
• 19 ”1U Rack Format
