Adastra - 953.024UK

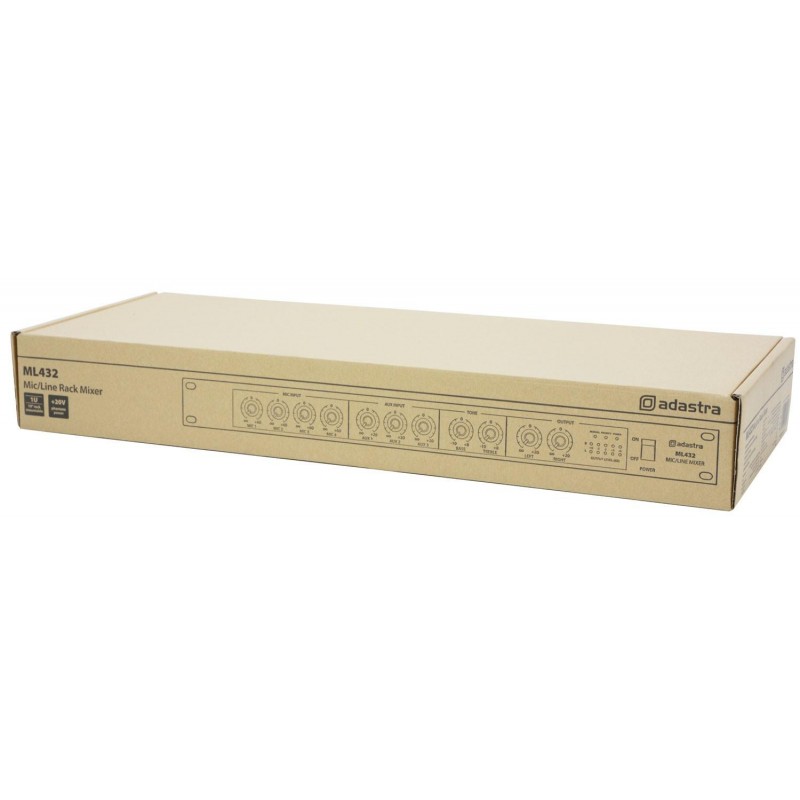

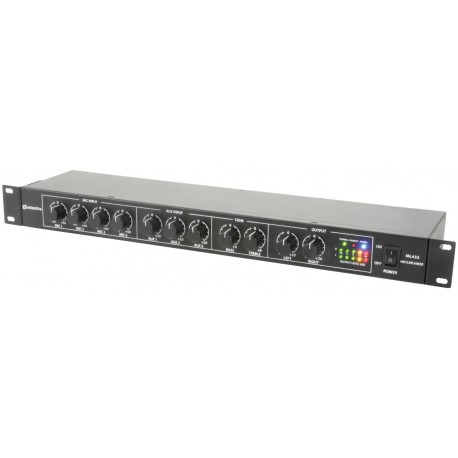

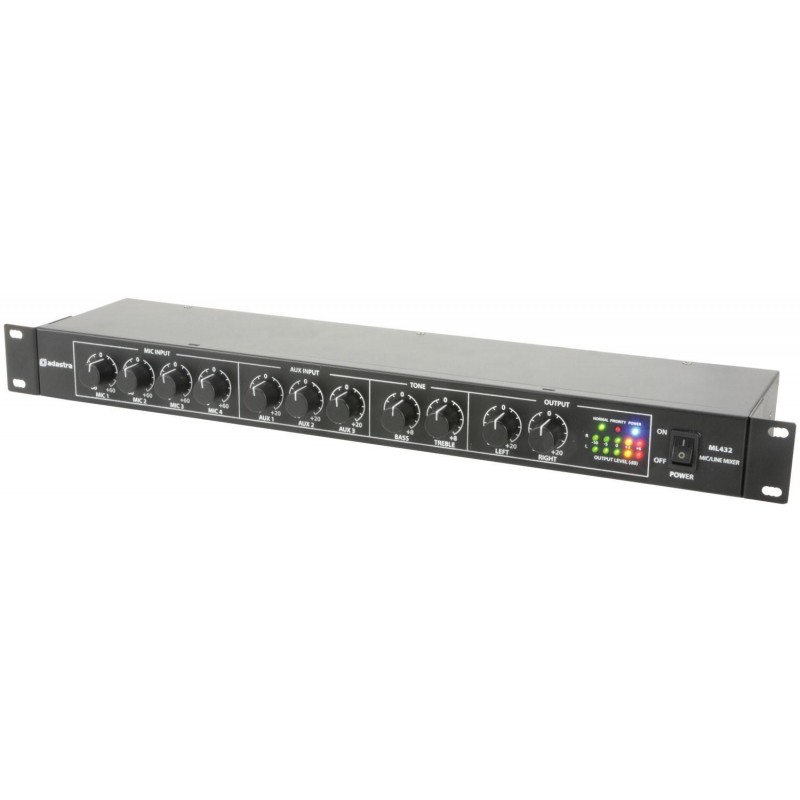

ML432 Micro / Line Mixer Rack Format
More info
- 7 channel mixer
- 4 balanced microphone inputs
- 3 stereo aux line inputs
- + 20V phantom power on main microphone input
- Adjustable microphone priority
- 19 "1U Rack Format
| Code | 953.024UK |
| Model | ML432 |
| Power supply | 100-240Vac, 50 / 60Hz / IEC) or 24Vdc (terminals) |
| Phantom Power | +20 Vdc (mic 1 XLR input only) |
| Output: mic | 4 x balanced 6.3mm jack (+ XLR input only) |
| Input: aux | 3 x L + R RCA |
| Tickets: priority | Line level (6.3mm jack), 100V (terminals) |
| Departures | Left + Right 6.3mm jack (unbalanced) |

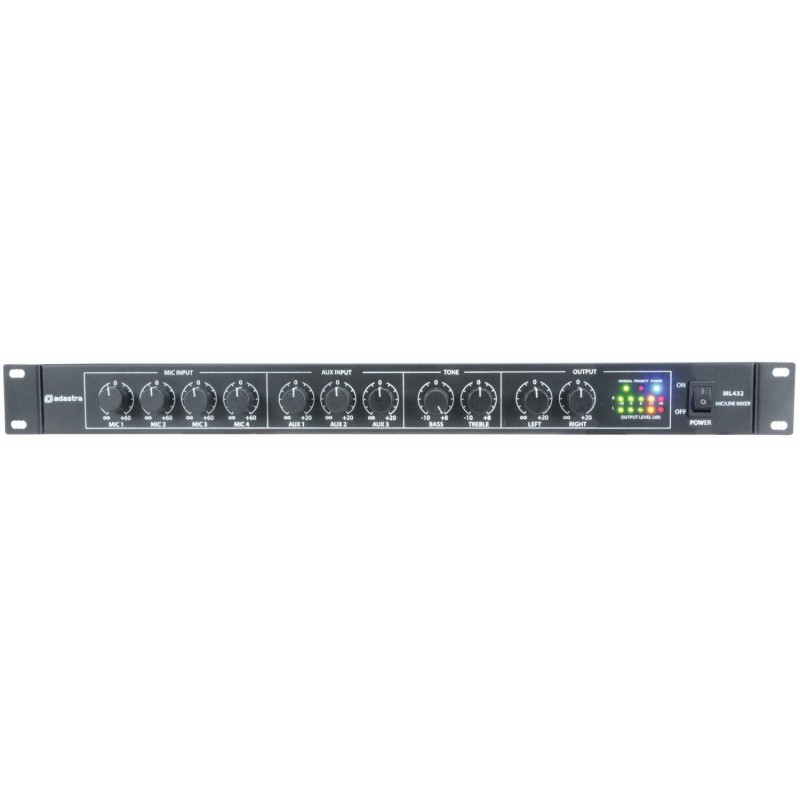

| Controls | 4 x Mic level, 3 x Aux level, Treble, Bass, L + R output |

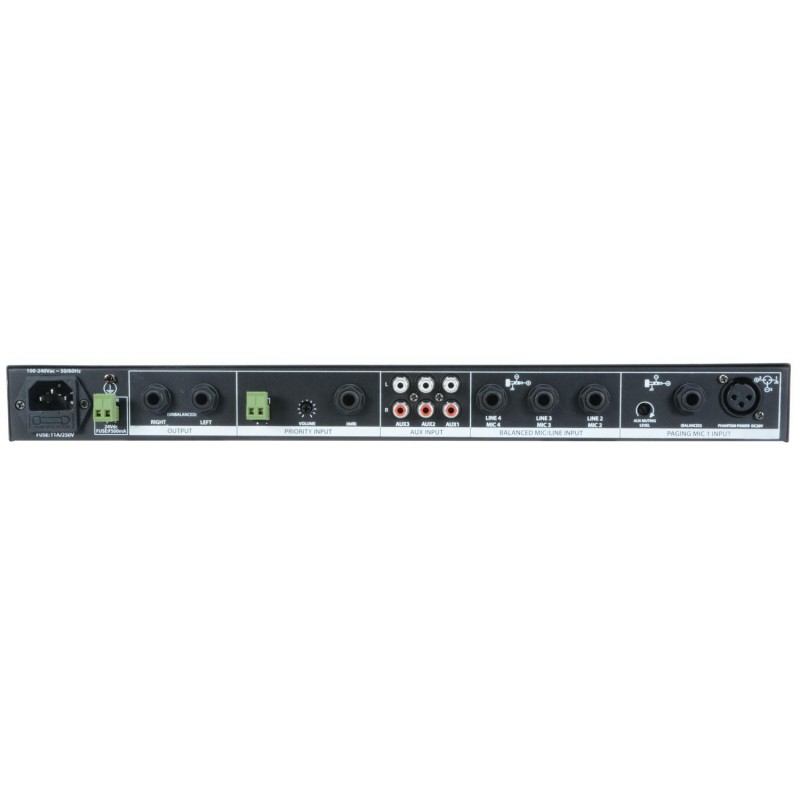

| Rear panel controls | Aux muting level, priority input level |
| Input impedance | 2.2k Ohms (mic / line), 10k Ohms (aux) |
| Frequency response: mic | 130Hz - 21kHz |
| Frequency response: line | 120Hz - 26kHz |
| Frequency response: aux | 50Hz - 35kHz |
| Input sensitivity: microphone | -50dB |
| Input sensitivity: line | -19dBV |
| Input sensitivity: auxiliary | -12dBV |
| Signal to noise ratio: microphone | 54dB |
| Signal to noise ratio: aux / line | 58dB |
| THD | 0.05% |
| Dimensions | 482 x 130 x 44mm |
| Weight | 1.43kg |
