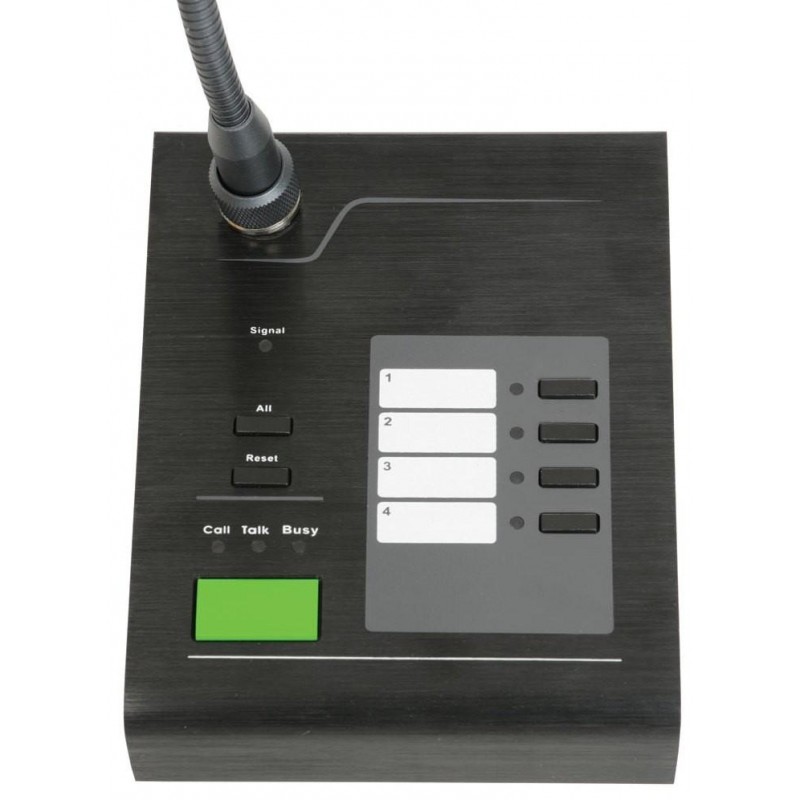

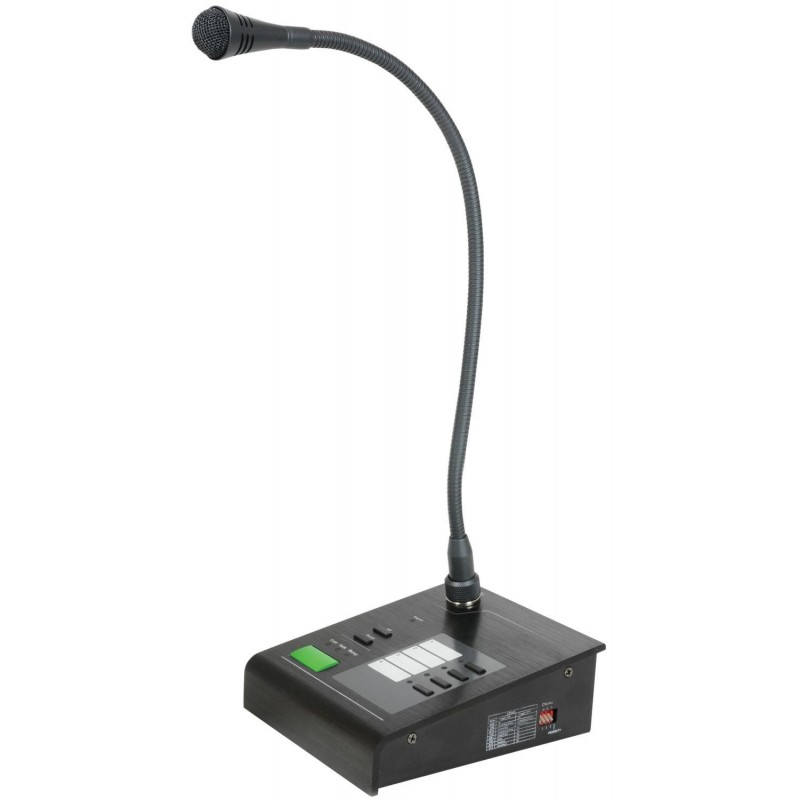

Call station for RM244V amplifier
- Public Address Microphone with Call Station Base for RM244V Amplifier (953.244U K)
- Connected via RJ45 for signal and power to simplify wiring
- Zone assignment buttons allow you to call each zone individually or all
- Pressing the call button mutes all audio playback and plays one of the 8 selectable chimes, opening the microphone to the selected zone (s)
- Pressing the reset button mutes the microphone and resumes background music playback in all zones
- This system offers 4-zone assignment without the added cost of using a quad amplifier

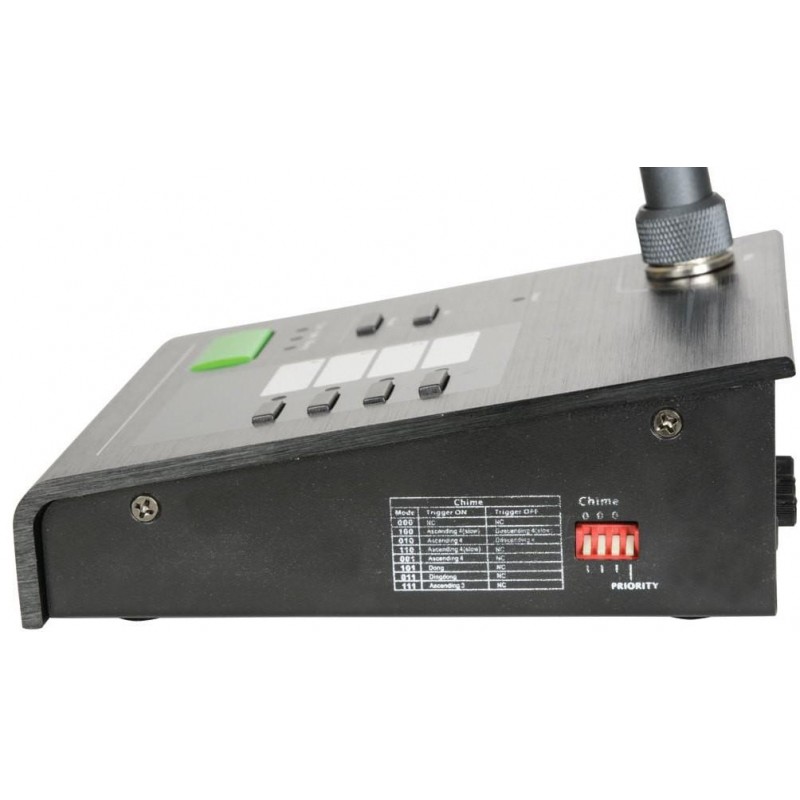

- 8 selectable ringer settings
- Auxiliary input 3.5mm Jack
- Up to 1km of remote cabling over CAT5
- Supplied with 1m of RJ45 cable
| Code | 953.146UK |
| Model | CS4 |
| Max. connection length with amplifier | 100m (CAT5 cable) or 1km with 24V DC adapter (Optional) |
| Capsule | Electret |
| Polar pattern | Cardioid |
| Controls | Aux / Mic / Ringer Level, DIP switch for ringer sound selection, Buttons for zone assignment |

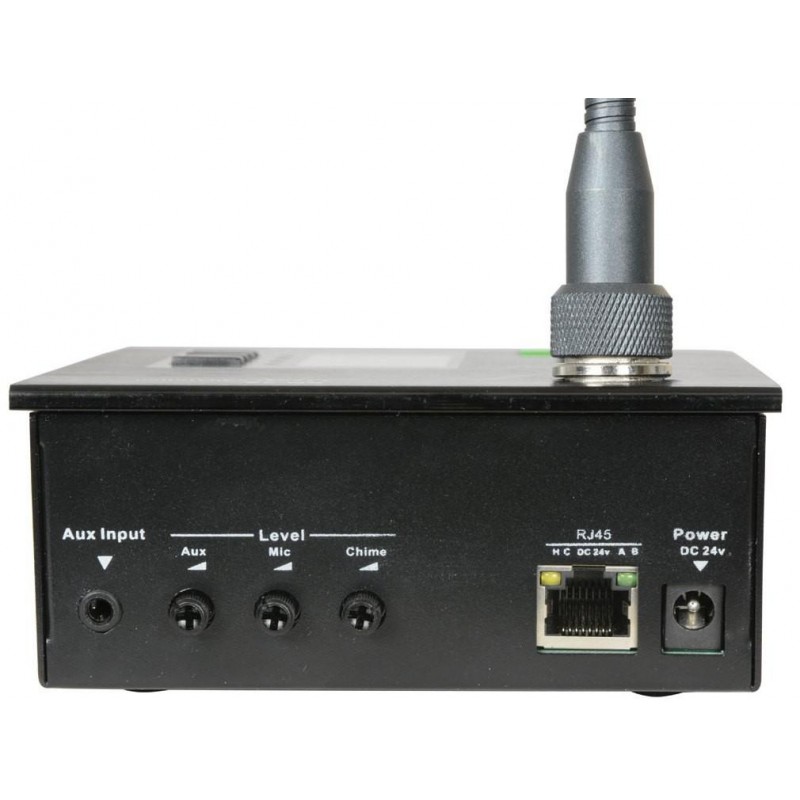

| Connectors | RJ45 to amplifier, 24Vdc auxiliary power socket, aux line input with 3.5mm Jack |
| Frequency response: -3dB 150Hz | 150Hz - 22kHz |
| Input level: Mic | -46dBV |
| Input level: Aux | -10dBV |
| Input impedance | Mic: 600 Ω, Aux: 50k Ω |
| Output level | 10dBV |
| Output impedance: 600 Ω | balanced |
| S / N ratio | -60dB (with all channels selected) |
| Interface | RS - 485 control |
| Zone assignment | 4 zones or all selectable |
| Dimensions | 460 x 140 x 115mm |
| Weight | 670g |
