Adastra - 953.152UK 1 View larger

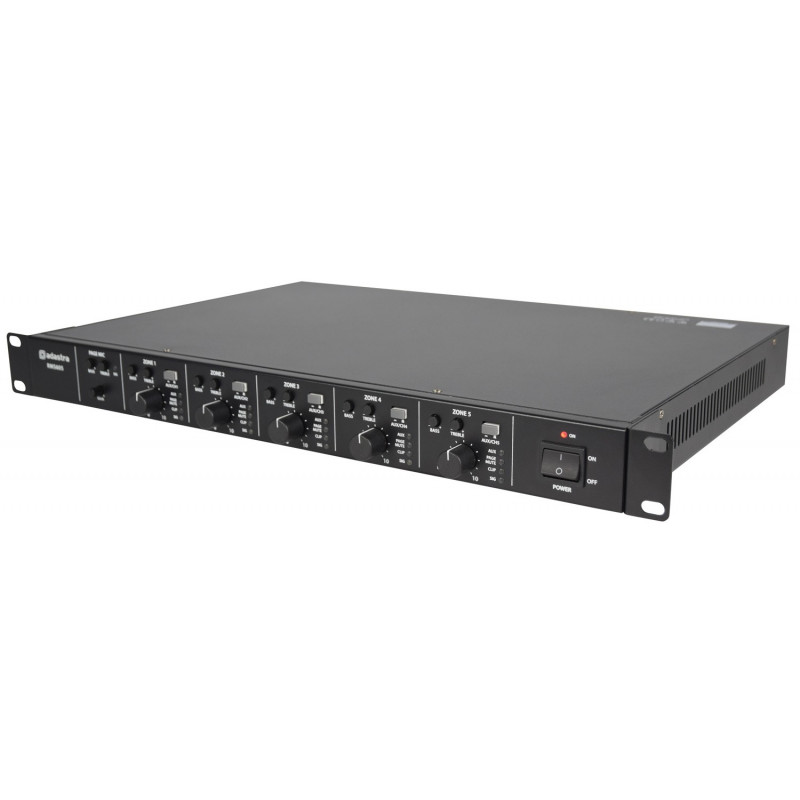

Adastra - 953.152UK

953.152UK

RMS605 - Line Amplifier 100V/4Ohm 5 x 60Wrms

In Stock

Europe Warehouse: 1

More info

Multichannel slave amplifier with 5 60Wrms outputs for 100V or 4-16 Ohm in-line speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, giving the option of the same input to several of the amplifier channels if required. Always-on paging microphone input on all channels for voice alerts and a 24V mute terminal can be connected to an alarm panel to override emergency evacuation. The class D circuit design and efficient toroidal transformers have enabled a design that fits into a 1U rackmount enclosure. The RMS605 can be applied as a high-power slave amplifier or as a fully independent zoning system for a multi-room installation.

  • 5 high-efficiency class D amplifiers
  • Line speaker outputs 100V or 4-16 Ohm
  • Independent inputs and optional global auxiliary input
  • Public address microphone input with voice override
  • Switchable +20 V phantom power for announcement microphone
  • 24V contacts for emergency silencing



Code953.152UK
ModelRMS605
Power supply100-240Vac, 50/60Hz (IEC)
FuseT2AL
RMS Power: 100V Line5 x 60W
RMS Power: 4 Ohms
5 x 60W
Microphone InputBalanced XLR (rear panel)
Microphone ControlsGain, Bass, Treble and Vox (rear panel)
Channel Tickets5 x L+R RCA or balanced terminal
Auxiliary InputL+R RCA
Exit ControlsVolume, bass, treble and auxiliary/channels
Output Connection5 x 100 V or 4 ohms (Euroblock Terminal)
Phantom Power+20 V switchable (paging microphone)
Emergency Control24V mute contacts (Euroblock terminal)
Dimensions482x330x42mm
Weight8.17kg
