Adastra - 953.173UK

953.173UK

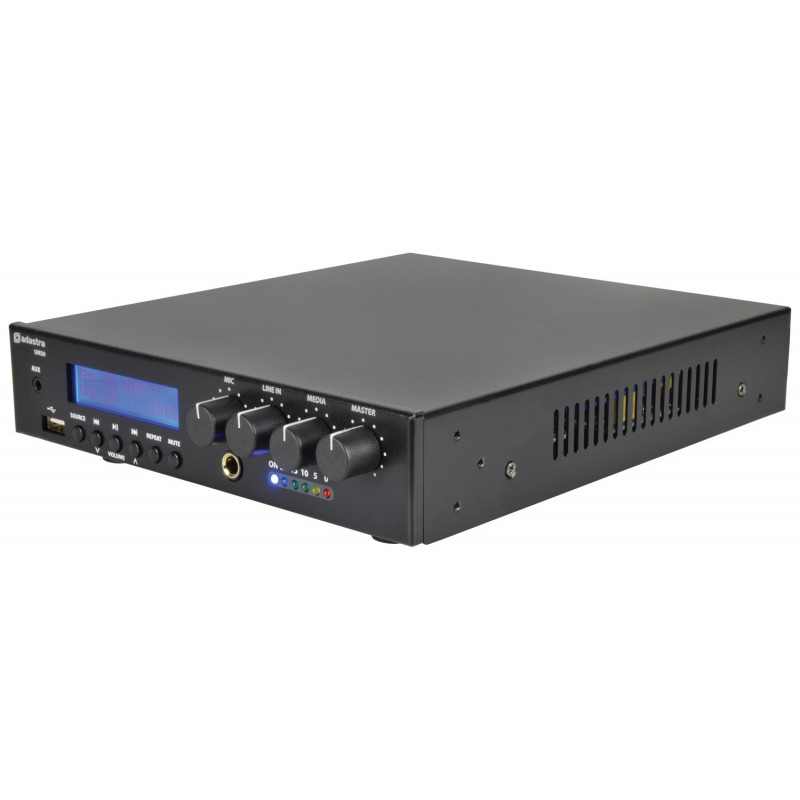

UM30 Compact Line Mixer-Amplifier 100V - 30W

166,00 € tax incl.

Receive it between %MINIMAL_DATE% and %MAXIMAL_DATE% depending on the chosen shipment. There are %NB_TOTAL_CARRIERS% shipping option/s. +info

Add to wishlist

Free shipping available for this product!

In Stock

Europe Warehouse: 11

More info


100V mixer-amplifier with USB audio player, FM tuner and BT wireless receiver in an ultra-compact case.  The microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume.  Mono output to a 100V line or 8 ohm speaker load connects via screw terminals on the rear panel.  Supplied with hardware to mount 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium sized public address installations.
  • Ultra-compact format
  • Class D amplifier design
  • Internal USB/FM/BT audio player
  • 100 V line or 8 ohm operation

Code953.173UK
ModelUM30
Output power30Wrms
Speaker outputsScrew Terminals - 100V / 8 Ohms / COM
Power supply170-264Vac, 50Hz (IEC) or 24Vdc
Amplifier: constructionClass D+ transformer output
Audio sourceInternal USB/FM/BT player
Tickets1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
line out2 x RCA (mono)
DC Power24Vdc screw terminals
Mute24V relay contacts
THD<0.4% at 1kHz
input impedance1k ohms (mic/line)
Input sensitivity-10dB (line), -45dB (microphone)
SNR80dB (line), 75dB (microphone)
Frequency response100Hz - 18kHz
Dimensions249 x 210 x 44mm
Weight2.35kg
