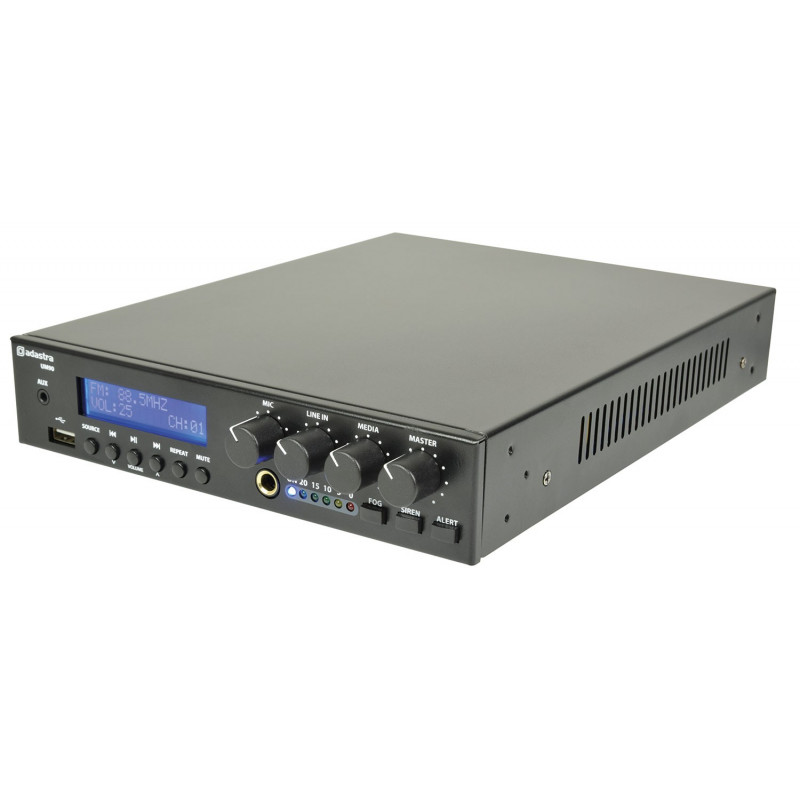

100V mixer-amplifier with USB audio player, FM tuner and BT wireless receiver in an ultra-compact case. The microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to a 100V line or 8 ohm speaker load connects via screw terminals on the rear panel. Supplied with hardware to mount 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium sized public address installations.
- Ultra-compact format
- Class D amplifier design
- Internal USB/FM/BT audio player
- 100 V line or 8 ohm operation
- Alarm, siren and alert generator
| Code | 953.179UK |
| Model | UM90 |
| Output power | 90Wrms |
| Speaker outputs | Screw Terminals - 100V / 8 Ohms / COM |
| Power supply | 170-264Vac, 50Hz (IEC) or 24Vdc |
| Amplifier: construction | Class D+ transformer output |
| Audio source | Internal USB/FM/BT player |
| Tickets | 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm) |
| line out | 2 x RCA (mono) |
| DC Power | 24Vdc screw terminals |
| Mute | 24V relay contacts |
| THD | <0.4% at 1kHz |
| input impedance | 1k ohms (mic/line) |
| Input sensitivity | -10dB (line), -45dB (microphone) |
| SNR | 80dB (line), 75dB (microphone) |
| Frequency response | 100Hz - 18kHz |
| Dimensions | 300 x 210 x 44mm |
| Weight | 3.02kg |
