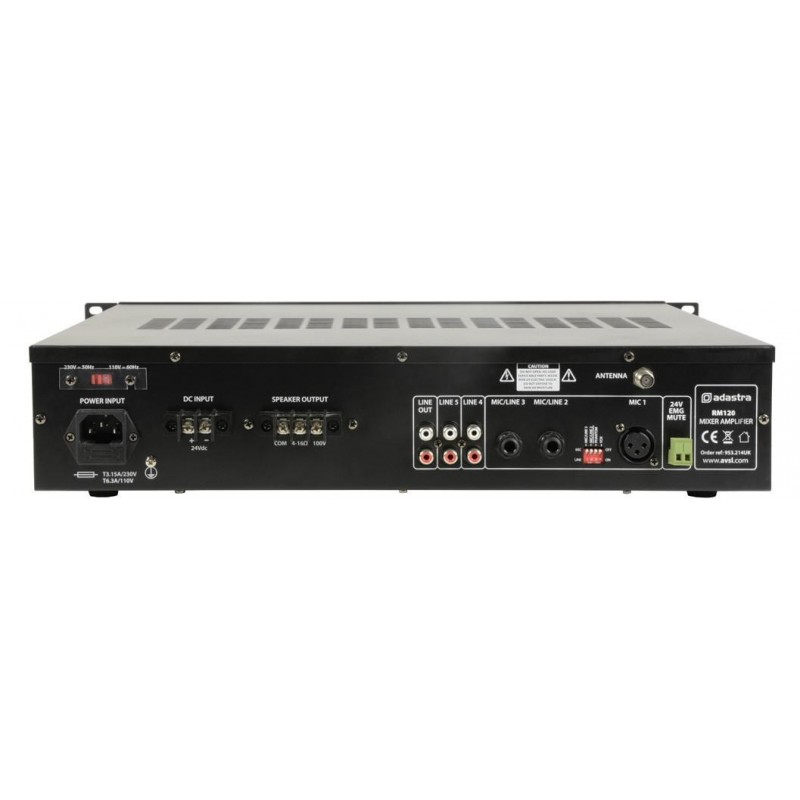

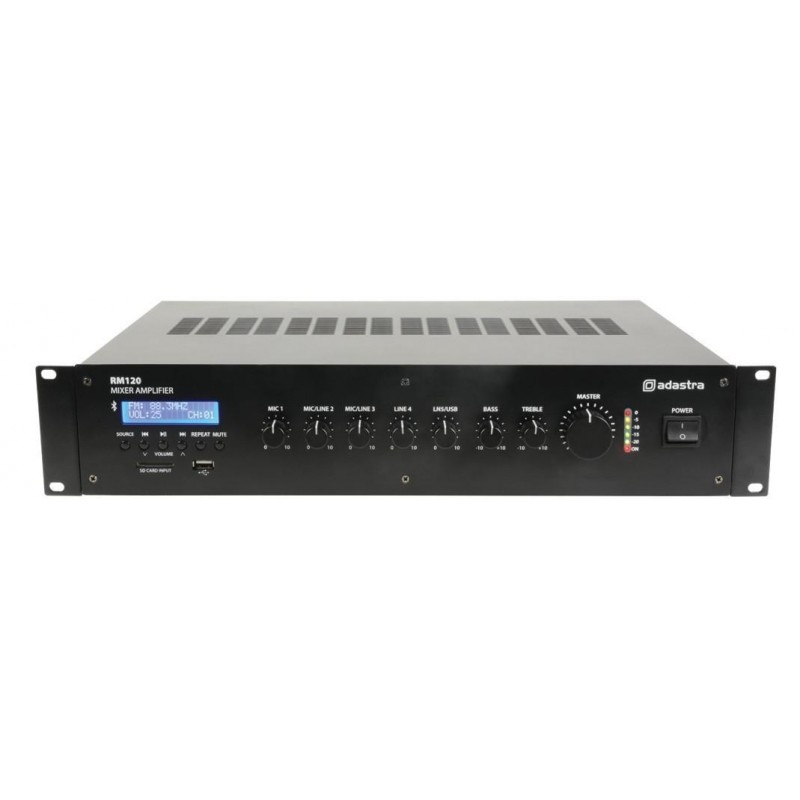

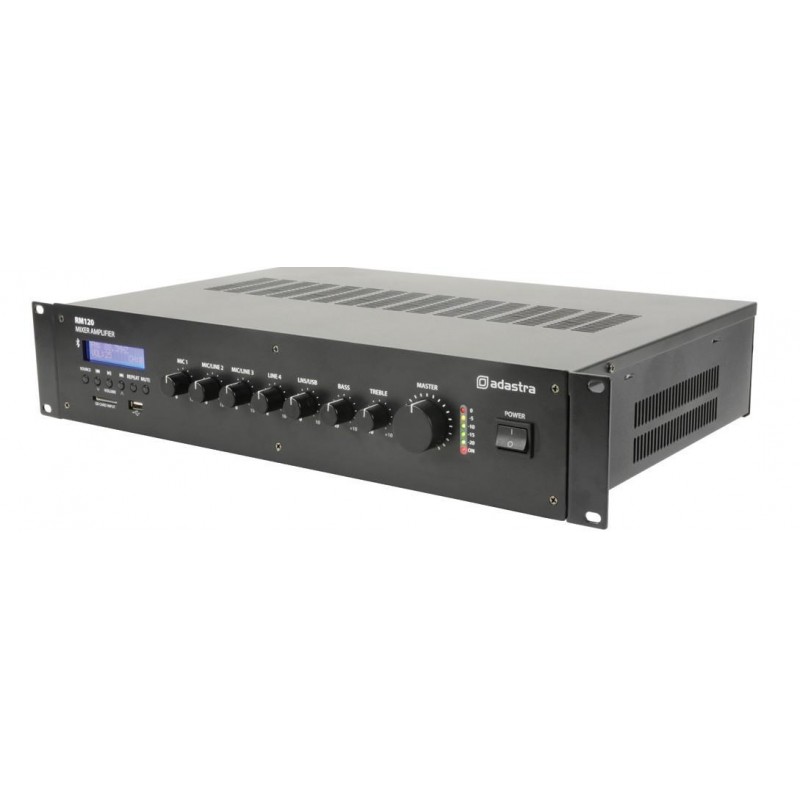

100V Line Amplifiers with built-in 5 Channel mixer and USB / SD AUDIO PLAYER, FM TUNER AND BLUETOOTH RECEIVER
- 19 2U rack format
- Balanced XLR input for microphone
- Switchable phantom power
- Vox override for microphone priority
- 2 microphone / line jack inputs and 2 RCA line inputs
CODE | MODEL | IMPEDANCE | POWER |
| 953.213UK | RM60 | 100V / 8Ω | 60W RMS |
| 953.214UK | RM120 | 100V / 8Ω | 120W RMS |
| 953.215UK | RM240S | 100V / 8Ω | 240W RMS |
| 953.216UK | RM360S | 100V / 8Ω | 360W RMS |
| Code | 953.214UK |
| Model | RM120 |
| Output power | 120Wrms |
| Speaker outputs | 100V / 8 Ω / COM terminals |
| Weight | 8.36kg |
| Power supply | 110 / 230Vac, 50 / 60Hz (IEC) |
| Format | Rack 19 "2U |
| DC Power | 24Vdc (screw terminals) |
| Tickets | XLR mic, 2 x mic / line jack, 2 x RCA line |
| Input sensitivity: microphone 1 | -53dBV |
| Input impedance: mic 1 | 5k Ω |
| Input sensitivity: line | 15dBV (-18.5dBV line 5) |
| Input impedance: inputs 2-5 | 1k Ω |
| Line out | RCA |
| Controls | Mic1, mic / line2 + 3, line4 + 5, bass, treble, master |
| Equalizer: Bass | 100Hz ± 10dB |
| Equalizer: treble | 10kHz ± 10dB |
| Rear panel switches | Phantom, Vox, Mic / Line (2 + 3) |
| Phantom Power | + 20V (mic 1 input) |
| Audio source | USB / SD player, FM tuner and Bluetooth receiver |
| Bluetooth version | 2.0 |
| THD | <1.0% |
| Dimensions | 433 x 320 x 89mm |
