Adastra - 953.225UK 1 View larger

Adastra - 953.225UK

953.225UK

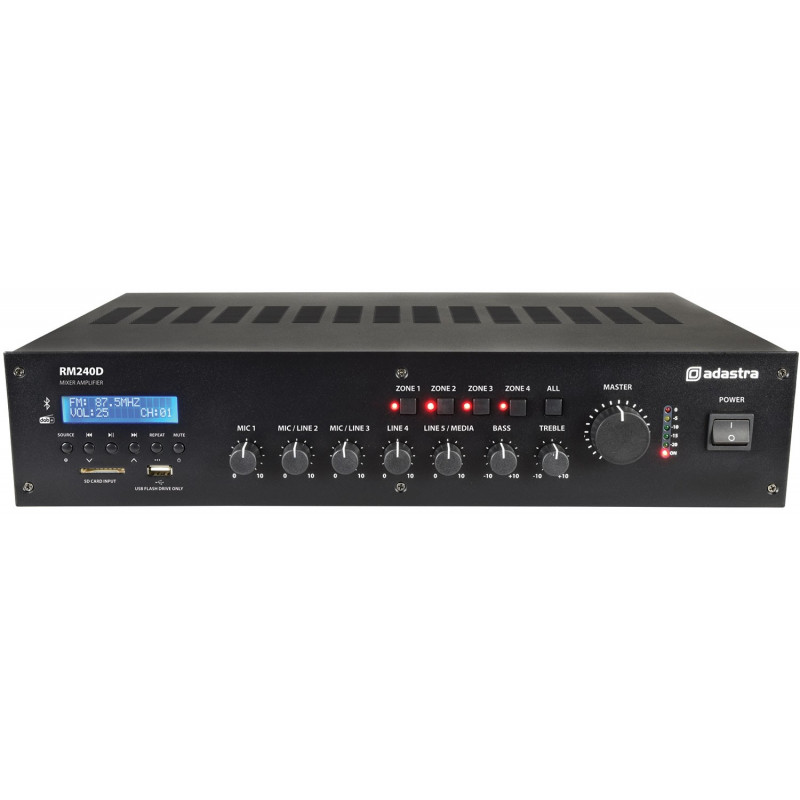

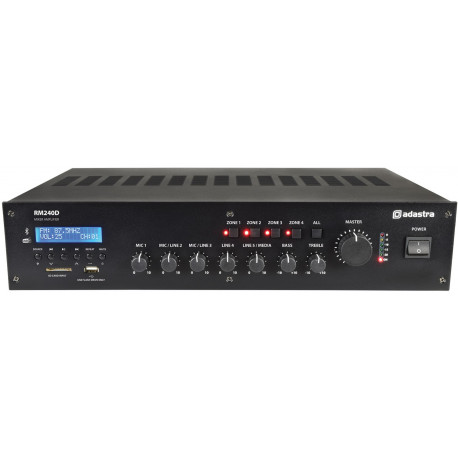

RM240D 240W RMS 100V Line Amplifier with Zones and DAB+/FM Tuner

In Stock

Europe Warehouse: 25

More info

100V Line Amplifiers with 4 ZONES, USB/SD AUDIO PLAYER, DAB+/FM RADIO TUNER AND BLUETOOTH RECEIVER

19" 5-channel mixer-amplifier for rack mounting, designed for commercial sound installations to power 100 line speakers V or low impedance speakers loaded up to 4 ohms Input options include XLR (with switchable phantom power), mic/line jack and RCA Line Features a built-in DAB+/FM radio tuner, SD/ Front-mounted USB and Bluetooth® connectivity, all controlled through an integrated media player for seamless playback. A switchable "voice-over" function automatically reduces the volume of background music when a signal is detected through of microphone input 1 and rear panel 24V contacts can mute all but microphone input 1 when activated. Outputs on the screw terminal are via 4 switchable zones with a separate "always on" output for priority alert speakers.

  • Integrated 5 Channel Mixer
  • DAB+/FM radio tuner
  • Bluetooth Receiver with Unique Serial ID
  • USB/SD audio player
  • 4 switchable 100V outputs and 1 non-switched output
  • Optional 4-16 ohm output
  • XLR microphone input with switchable +20V phantom power
  • 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
  • Vox override for microphone priority
  • 2U 19" rack mount (rack ears included)
  • 24V emergency silence contacts
  • Mains power option 230Vac or 24Vdc
Code953.225UK
ModelRM240D
Power supply170-264 Vac, 50 Hz (IEC)
FuseT5A
DC Power24Vdc (screw terminals)
RMS output power240Wrms
Speaker outputs4 switched + 1 unswitched 100V / 4-16 Ohms / COM
Speaker output switchingZones 1, 2, 3, 4, All
TicketsXLR Microphone, 2 x Mic/Line Jack, 2 x RCA Line
Input sensitivity: microphone 1 (balanced)-53dBV
Format19" 2U Rack
TicketsXLR microphone, 2 x mic/line jack, 2 x RCA line
Input sensitivity: microphone 1-53dBV
Input impedance: microphone 15kΩ
Input sensitivity: line (unbalanced)-15dBV (-18.5dBV line 5)
Input impedance: inputs 2-51kΩ
line outRCA
ControlsMic1, mic/line2+3, line4+5, bass, treble, master
Equalizer: bass100Hz ±10dB
Equalizer: treble10kHz ±10dB
Rear panel switchesPhantom, Vox, Mic/Line (2 + 3)
Phantom Power+20V (1 XLR microphone, switchable)
Audio sourceDAB+/FM tuner, USB/SD player, Bluetooth receiver
Bluetooth version5.0
THD<1.0%
Dimensions433x320x88mm
Weight7.37kg
