Adastra - 953.244UK

953.244UK

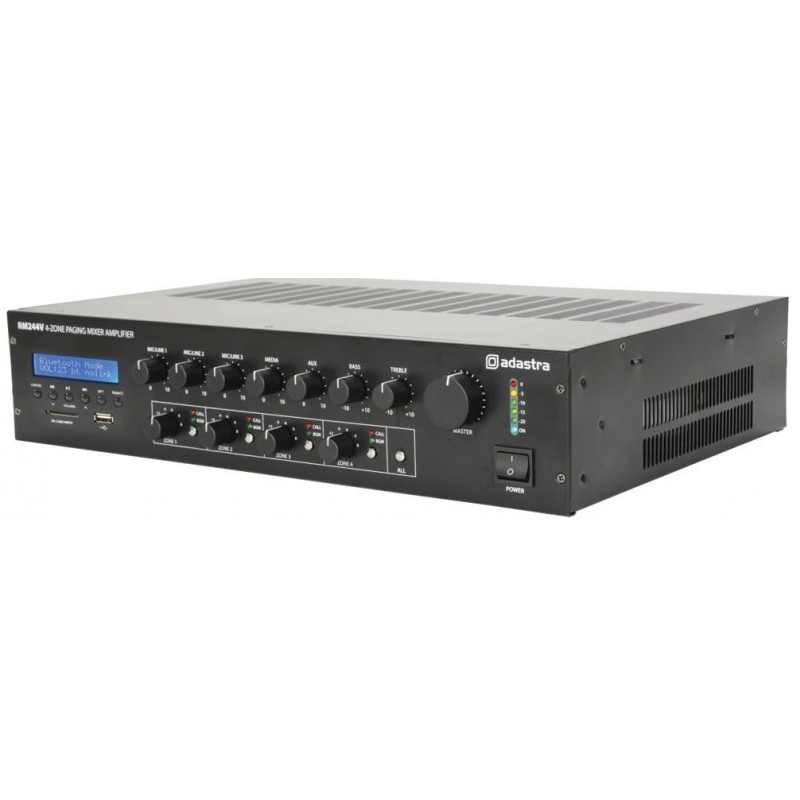

RM244V Amplifier 240W RMS 100V Line 4 Zones

In Stock

Europe Warehouse: 4
Spain Warehouse: 1

More info


Amplifier for line public address 100V 240W RMS with 4 selectable zones with independent volume
and audio Multimedia Player

  • USB / SD Player, FM Tuner and BLUETOOTH Receiver
  • 3 switchable microphone / line inputs and 1 auxiliary input
  • Combo mic / line inputs connections (Jack / XLR)
  • Channel 1 with adjustable priority function
  • 24V contacts for connection to fire alarm panel for emergency evacuation
  • Output for 4 speaker zones sharing 240Wrms amplifier power, governed by 4 individual rotary volume switches.
  • RJ45 inputs for the connection of up to two CS4 call stations (Optional)
  • The RM244V offers versatile 4-zone control with independent volumes
  • XLR input with switchable + 20V phantom power for condenser microphones
  • Mains supply 110 / 230Vac or 24Vdc

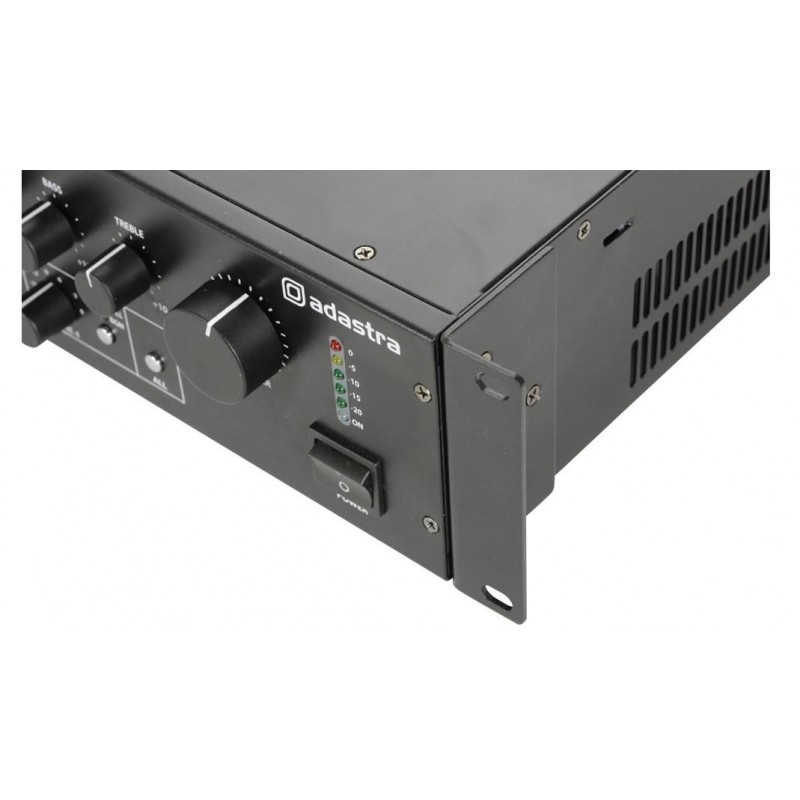

  • Rack 19 "2U format (mounting accessories included)
Code 953.244UK
Model RM244V
RMS output power 240Wrms (shared in 4 zones at 100V)
AC power supply 110/230 Vac, 50 / 60Hz (IEC)
DC power 24Vdc (screw terminals)
Tickets 3 x mic / line (jack / XLR), 1 x aux (RCA)
input sensitivity: mic -47dBV
Input impedance: mic 5K Ohms
Input sensitivity: line -10dBV
Input impedance: line 1K Ohms
Inputs for external public address stations 2xRJ45 for RM-4B stations (Optional)
Line out RCA
Shipping / Return Pre out, amp in (RCA)

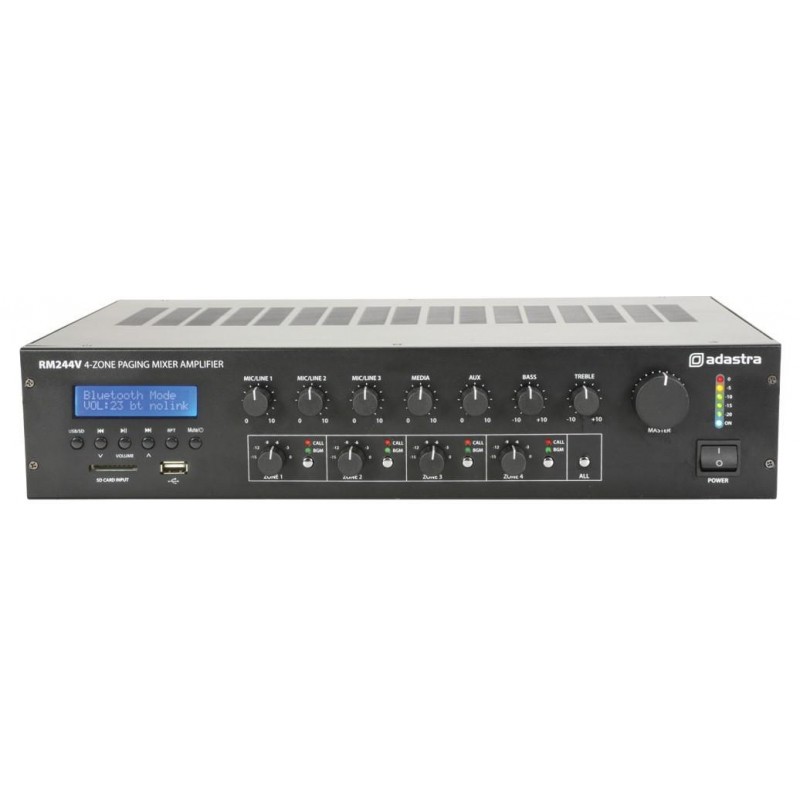

Channel controls Ch1, Ch2, Ch3, Middle and Auxiliary Volume
Output controls Master volume, 4 x zone and mute volumes
Equalizer: Bass 100Hz ± 10dB
Equalizer: Treble 10kHz ± 10dB
Audio Player USB / SD, FM Tuner and Bluetooth Receiver
Bluetooth version 2.0
Alarm contact 24V screw terminals
THD + N <2% @ 1kHz (rated power)
Protection Short circuit, overload and overheating

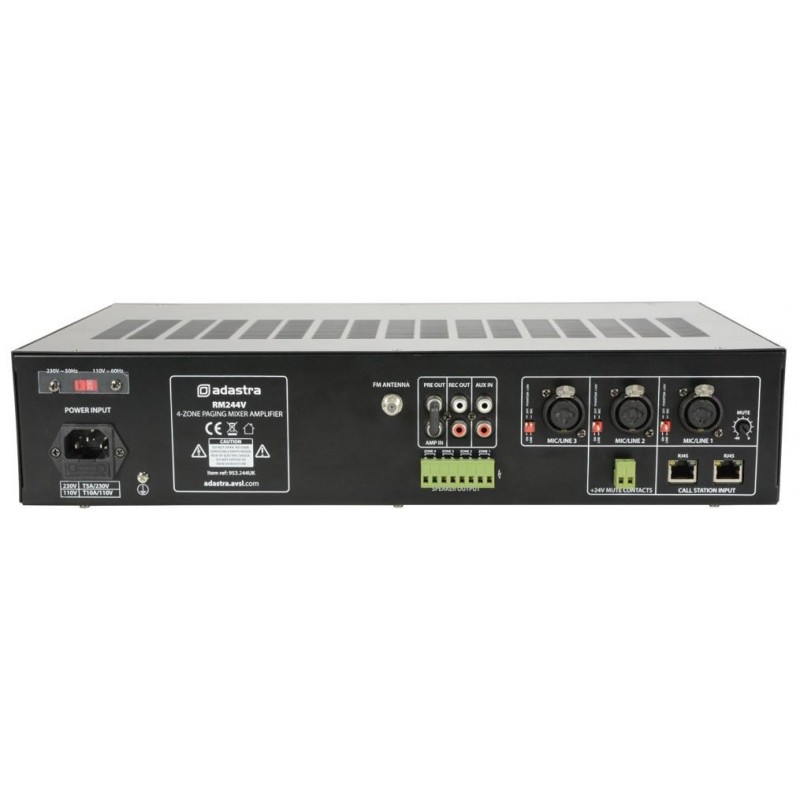

Speaker output 4 x 100V (modular terminal block)
Dimensions 430 x 315 x 89 mm
Weight 10.4kg
