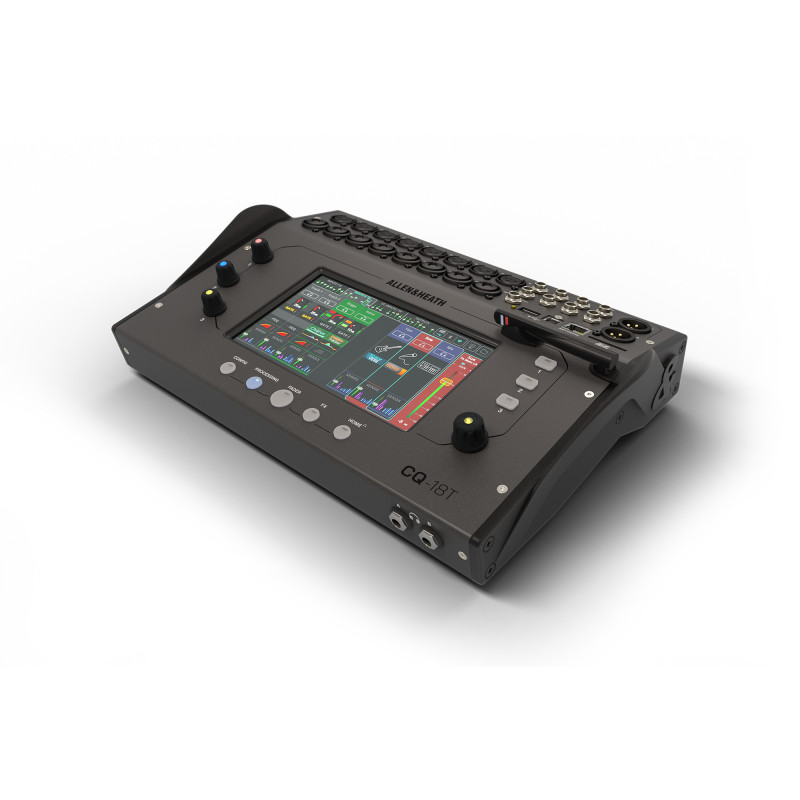

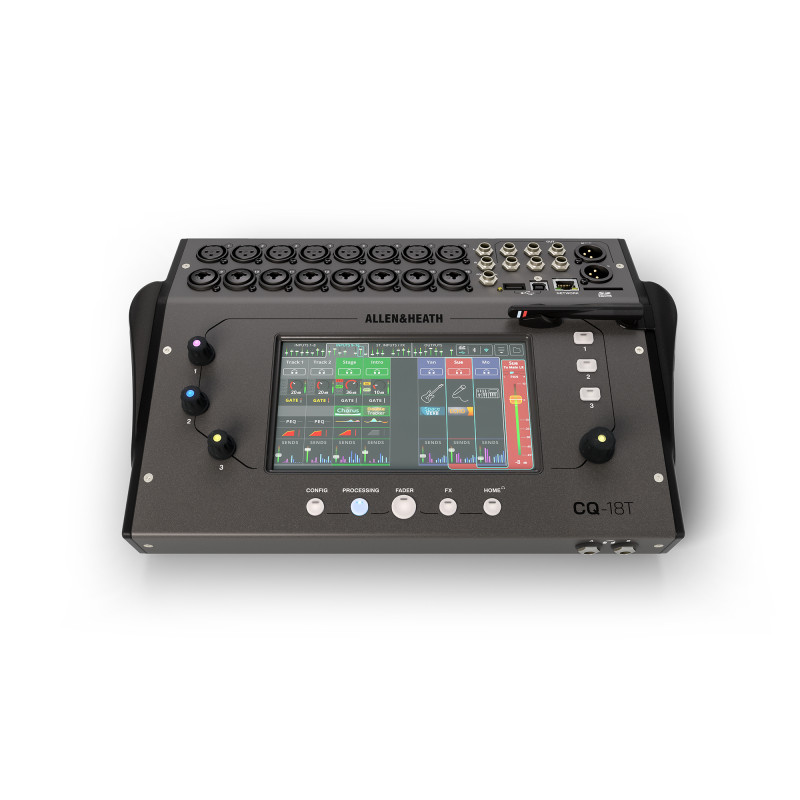

CQ is Allen & Heath's most compact range of digital mixers. Built around an intelligent 96 kHz processing engine, it offers a wealth of connectivity, incorporating Bluetooth, wireless options, and audio recording and playback over SD and USB. Focusing on speed and ease of use, new Quick Channels, Gain/Feedback Assistants and Smart FX further enhance the world-renowned audio and build quality that users have come to expect from Allen & Heath. CQ mixers come in three formats, two tabletop models with direct control and another model in stage box format. They all use the same technology, apps and user interface, but with slightly different features and prices. CQ mixers use the enormous processing power provided by 96 kHz FPGA technology, developed by Allen & Heath, and include new tools and intelligent FX that allow you to achieve better mixes even faster. The new Quick Channels offer dedicated processing capabilities, allowing you to make changes with a single button or make advanced changes to an entire channel. The new gain assistant that CQ mixers incorporate saves a lot of time, as it automatically adjusts the preamplifier gain with maximum precision. It is also responsible for subsequently monitoring the levels in the preamplifier to prevent unpleasant peaks. During setup and using fixed mode, its Feedback Assistant detects and eliminates frequencies that cause acoustic feedback; Subsequently and in Live mode, it is responsible for monitoring all outputs throughout the performance so that feedback does not occur. The FX chapter has also been reinforced, with the inclusion of new reverbs, delays and intelligent modulators, which respond dynamically to the signal. For voice applications, AMM has been included in all inputs, which improves speech clarity and reduces ambient noise. All this automatically. You can control the mixer from (almost) anywhere, with free apps for Windows, Mac, Android and iOS. CQ-MixPad gives the engineer complete control from anywhere in the room and CQ4You allows the performer to adjust their mix themselves and hear exactly what they need. With the CQ range, Allen & Heath have created a super portable, fun to use, yet fully featured digital mixer, suitable for both technical and non-technical users alike. CQ is designed for use anywhere high-quality sound processing and summing is required, from bands and producers to AV and rentals, and can be used in all types of situations,from as a main mixer in a small venue, to as a secondary mixer on the largest stage.

19 mix inputs (16 Mono / linkable, 3 stereo) Main LR stereo output 6 Aux outputs (linkable up to 3 stereo) 8 XLR Micro / line input connectors 8 XLR / Jack combi type micro / line input connectors Stereo line input ( 2 x TRS) 2 outputs via multi FX built-in dual-band WI-FI (CQ as host) RJ45 network connector (CQ as client) USB-A for stereo and data audio recording/playback USB-B for multi-channel audio recording/playback (24 x 22) SD card slot for multi-channel audio recording/playback (24 x 22) 7" capacitive touch screen, with 5 soft keys and associated rotary encoder 3 configurable SoftRotaries 3 configurable SoftKeys Single/double footswitch connection, configurable Rack mounting possible (kit available optional) 12V DC power connector with switch, external international power supply is supplied Control from free Apps: Windows / MacOS / iOS / Android
