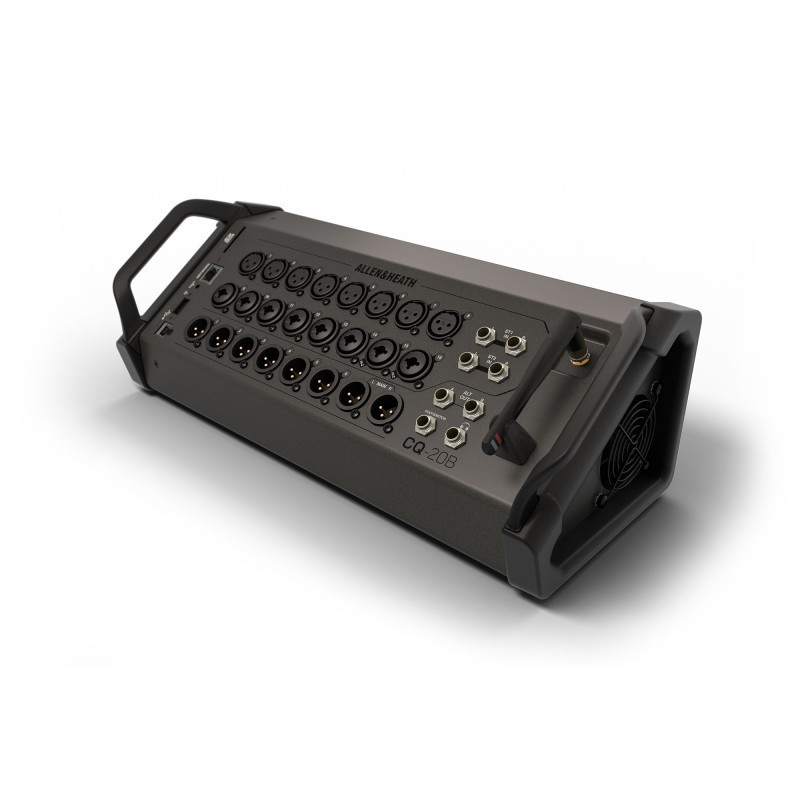

CQ is the most compact range of digital audio mixers made to date by Allen & Heath. CQ-20B is an ultra-compact digital audio mixer, designed to be managed through its built-in Wi-Fi system, or through its connection to a network, both wired and wireless. Based on an intelligent 96 kHz processing engine, it offers multiple connectivity options with Bluetooth, wireless options, SD and USB audio recording and playback. Focusing on speed and ease of use, the new Quick Channels, Gain/Feedback Wizards and Smart FX reinforce the potential and world-renowned quality that users have come to expect from Allen & Heath. It is offered in three formats: two tabletop models with manual control and one model in stage box format. They all use the same technology, applications and user interface, but offer slightly different features and prices. CQ mixers use the enormous processing power provided by 96 kHz FPGA technology, developed by Allen & Heath, and include new tools and intelligent FX that allow you to achieve better mixes even faster. The new Quick Channels offer dedicated processing capabilities, allowing you to make changes with a single button or make advanced changes to an entire channel. The new gain assistant that CQ mixers incorporate saves a lot of time, as it automatically adjusts the preamplifier gain with maximum precision. It is also responsible for subsequently monitoring the levels in the preamplifier to prevent unpleasant peaks. During setup and using fixed mode, its Feedback Assistant detects and eliminates frequencies that cause acoustic feedback; Subsequently and in Live mode, it is responsible for monitoring all outputs throughout the performance so that feedback does not occur. The FX chapter has also been reinforced, with the inclusion of new reverbs, delays and intelligent modulators, which respond dynamically to the signal. For voice applications, AMM has been included in all inputs, which improves speech clarity and reduces ambient noise. All this automatically. You can control the mixer from (almost) anywhere, with free apps for Windows, Mac, Android and iOS. CQ-MixPad gives the engineer complete control from anywhere in the room and CQ4You allows the performer to adjust their mix themselves and hear exactly what they need. With the CQ range, Allen & Heath have created a super portable, fun to use, yet fully featured digital mixer, suitable for both technical and non-technical users alike.CQ is designed for use anywhere high-quality sound processing and summing is required, from bands and producers to AV and rental, and can be used in all types of situations, from as a main mixer in a small venue, to as a secondary mixer on the largest stage.

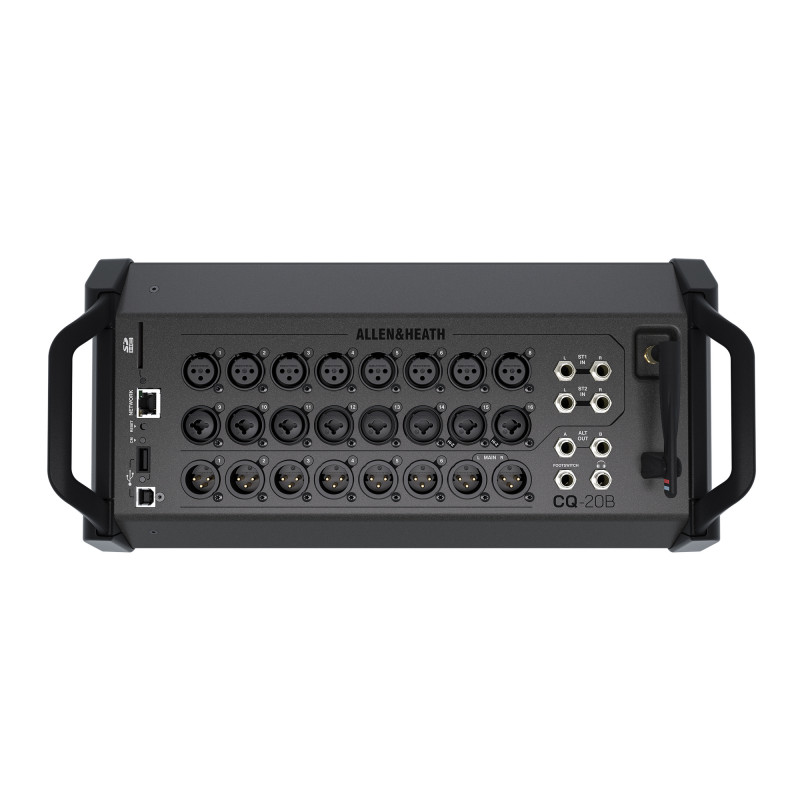

20 mix inputs (16 Mono/Linkable, 4 stereo) Main LR stereo output 6 Aux outputs (linkable, up to 3 stereo) 8 XLR mic/line input connectors 8 Combi XLR/Jack connectors for mic/line input (2 with option Hi-Z) 2 stereo line inputs (each with 2 TRS) 8 outputs via XLR 2 Alt Out outputs via TRS Stereo headphone output Specific stereo USB input to the mix Specific Bluetooth stereo input to the mix Input / 96kHz output 4 multi FX engines Built-in dual-band WiFi (CQ as host) RJ45 network connection (CQ as client) USB-A for recording/playback of stereo audio and data USB-B for recording/B playback of multi-channel audio (24 x 24 ) SD card slot for multichannel audio recording/playback (24 x 24) Configurable connection single/double pedal switch Configurable channel chromatic LED meter Allows rack mounting (optional kit available) IEC mains connection with international power supply Control from apps free: Windows / MacOS / iOS / Android
