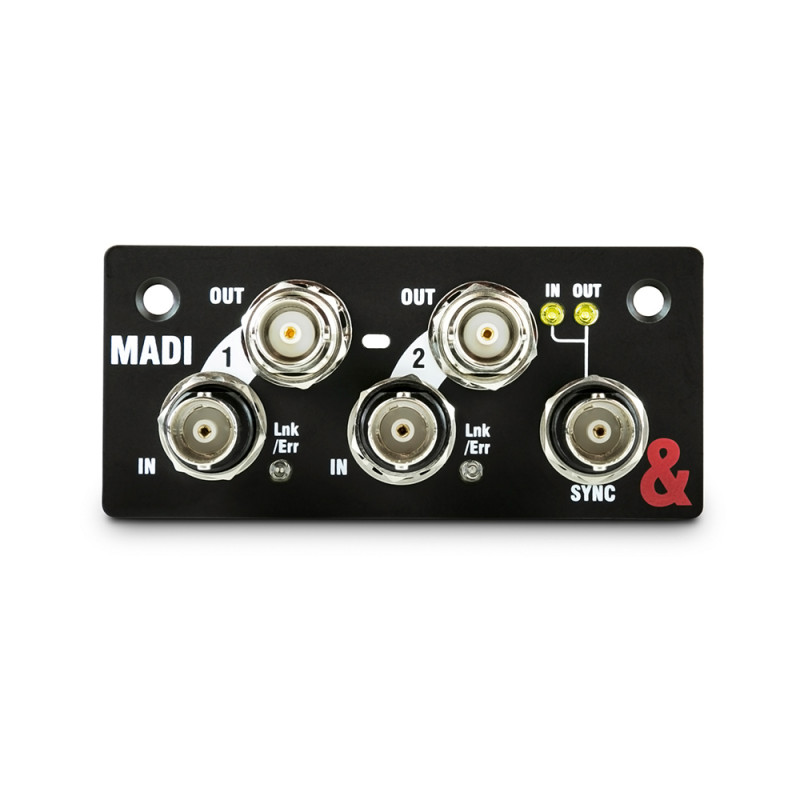

SQ MADI provides any SQ mixer with a 64x64 MADI interface operating at 48 kHz or 96 kHz. Two BNC inputs are paired with two BNC outputs to allow split or redundant configurations, while a dual-function (input/output) BNC Sync connection allows the console to be master or slave in the system. SQ MADI allows connection and synchronization with recording or broadcast systems on third-party mobile units and consoles to provide a high number of channels over coaxial cables.

64x64 channel digital audio 96kHz or 48kHz operation 96kHz Smux or HighSpeed ​​modes Synchronization from independent inputs or word clock Console-controlled error handling 4 BNC connectors (2 links) 1x BNC Sync for Word Clock I/O
