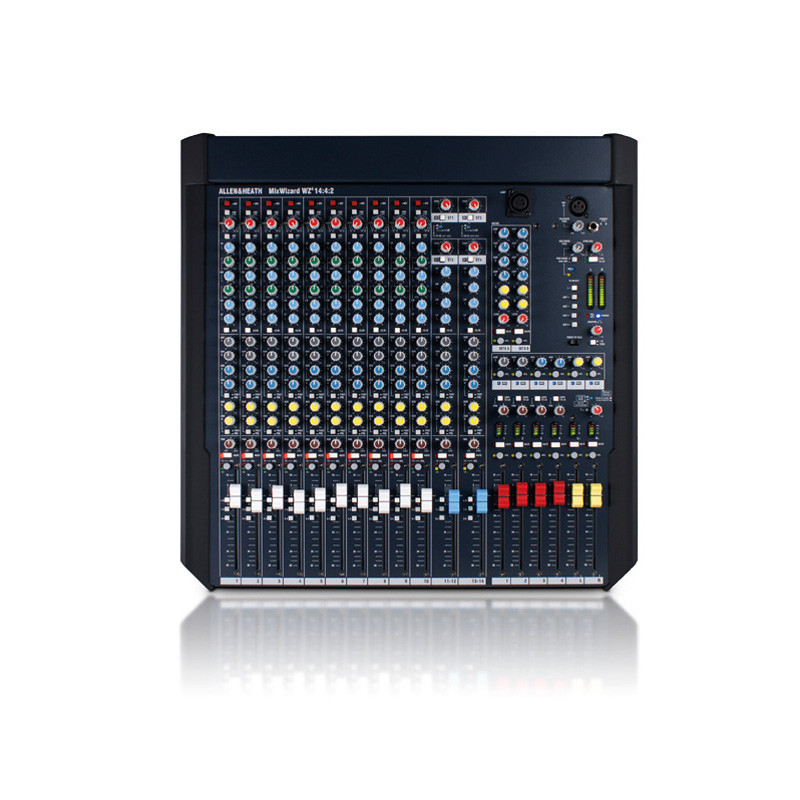

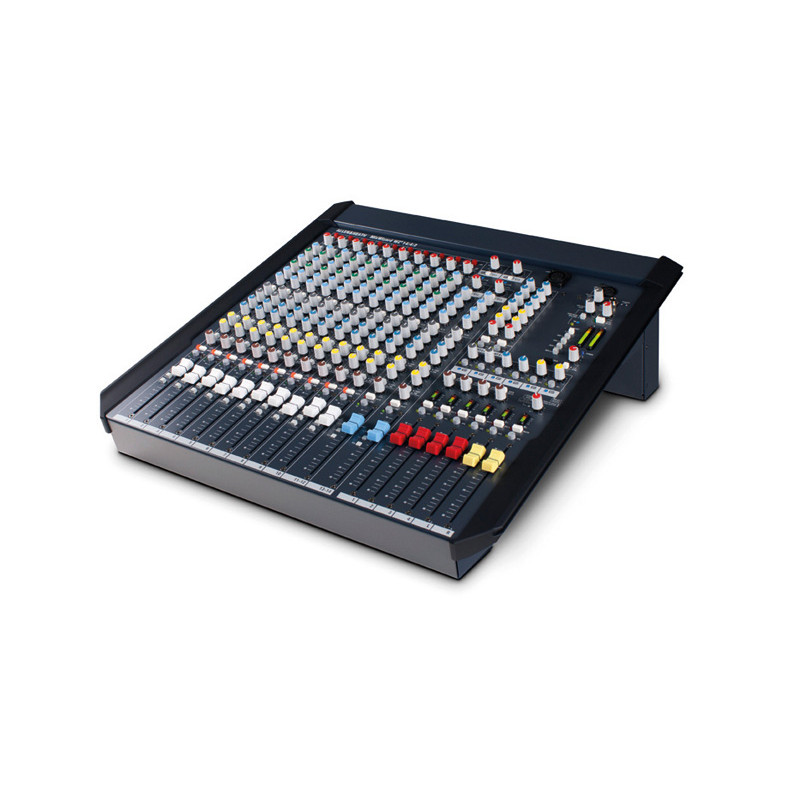

Designed as a versatile live mixer with unique features, WZ4 14:4:2 can be used both FOH and monitors, or performing both tasks at the same time. WZ4 14:4:2 features the acclaimed 4-band EQ with mid-range sweep, high-quality 100mm faders, 6 aux sends, 12-segment LED meters, and the exclusive QCC connector system for easy control. mounting both in rack and in desktop mode. This 4th generation of MixWizard consoles now offer the option of allowing the installation of a multi-channel USB interface with high-quality 16-channel sound cards, which facilitate multi-track recording and two-track playback. These general-purpose analog mixers offer a compact format that also allows rack mounting. The mixer can work in three modes: FoH / Monitor / Dual Mode. In FoH mode, the four groups with inserts, 100mm faders and XLR outputs can be routed and panned to the LR mix for a flexible sub mix. The main LR mix features insert, independent left and right faders, and XLR outputs to send the signal to the main sound system. EQ and signal processing can be easily inserted into the group outputs and main outputs. In Monitor Mode, aux mixes are routed to the group and LR faders, inserts, and XLR outputs. The AFL and PFL system is switched to the mono output to provide an output for the engineer's wedge. In essence, it is the perfect 6-mix monitor console, with additional outputs available from the group buses, through the auxiliary master controls. In Dual mode, some auxes can be used as monitor mixes, and some sub groups can be used alongside the main LR outputs, allowing the engineer to manage FoH sound and some monitor mixes from the same console.

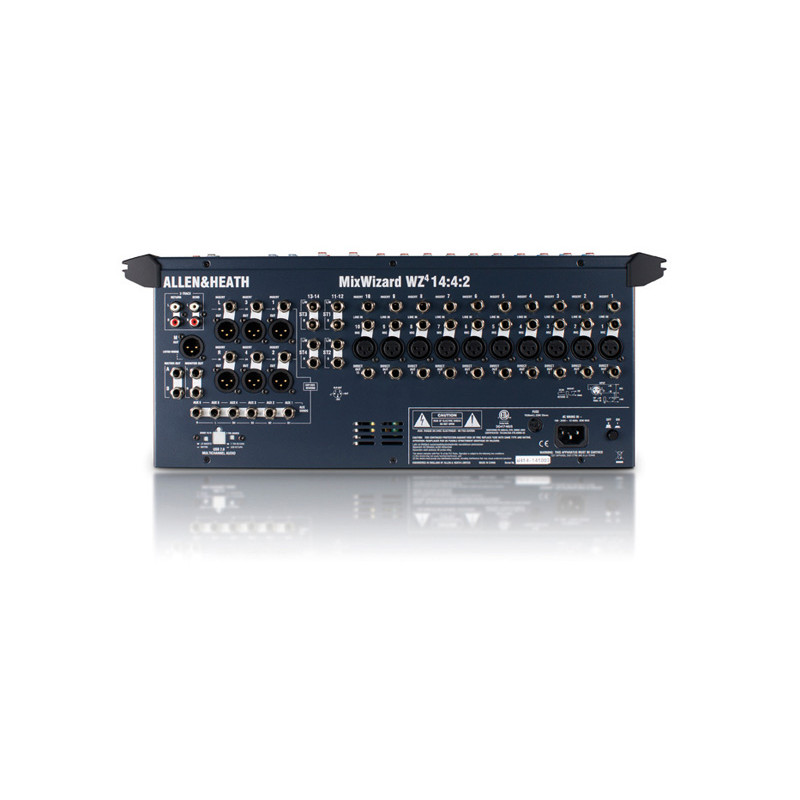

Can be mounted in a 19" rack 10 mic / line inputs with XLR / TRS connectors, insertion and direct output 100mm faders Switches that exchange the function of the group and auxiliary masters in Monitor or Dual Mode applications 6 auxiliary sends, pre-switchable /post fader 4 audio groups 2 Dual Stereo inputs with independent gain and 'ON' switches allowing inputs to be selected independently or mixed together Four-band EQ with 2 mid-sweeps 6x2 matrix to provide sends for monitoring intra aural, speakers with delay, video, broadcast and much more Oscillator and pink noise generator for speaker adjustment and testing Tricolor meter made up of 12 LED segments +48V phantom power Signal and peak LEDs XLR connector for Talkback microphone with adjustment of level Lamp socket Multi-track USB recording option
