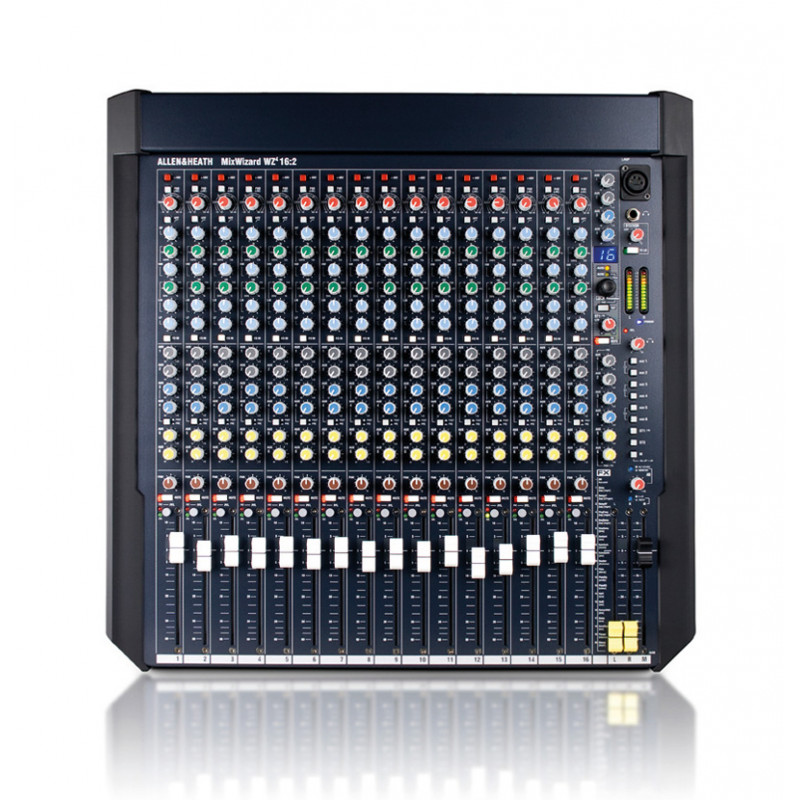

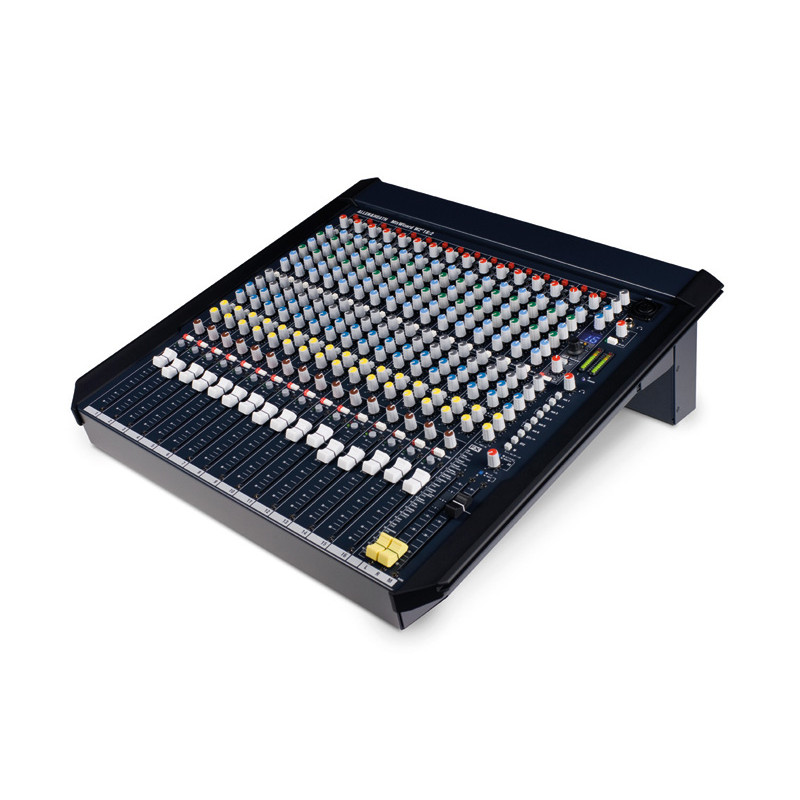

With its simplicity, quality and large number of inputs, WZ4 16:2 will be appreciated by both experienced and novice engineers. This is a general purpose mixer, providing 16 high quality mic/line inputs in a completely compact format. WZ4 16:2 features the acclaimed 4-band EQ with mid-range sweep, high-quality 100mm faders, 6 aux sends, 12-segment LED meters and the exclusive QCC connector system, which makes mounting both rack or in flightcase as in desktop mode. New features offered by this fourth generation of MixWizard include two newly designed FX engines with 20 studio-quality FX presets, EQ In/Out switch and the option to install a multi-channel USB interface with a high-quality 16-inch sound card. channels that facilitates multitrack recording and 2-track playback.

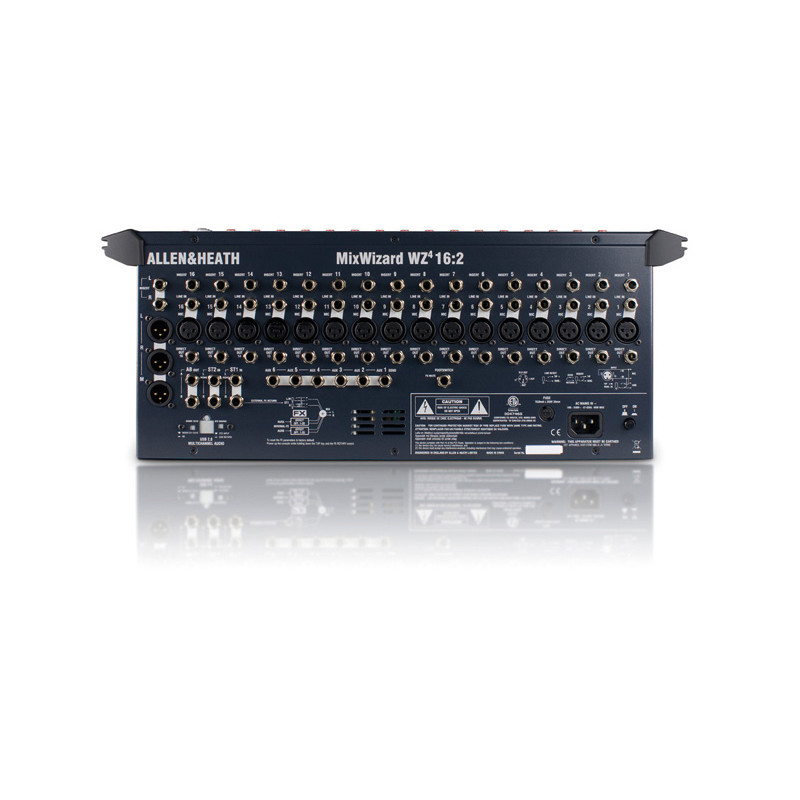

19" rack mountable 16 mic/line inputs with XLR/TRS connectors, insert and direct output 100mm faders Four-band EQ with 2 mid-sweeps 6 aux sends - 2x pre fader / 2x switched / 2x post fader ( can be reconfigured via internal jumpers) 2 stereo returns Specific fader for mono output - can be switched to provide a mono send for center speaker, subwoofer, etc. Independent AB output for recording on 2 tracks, monitors, fill speakers, etc. Tricolor meter made up of 12 LED segments Two FX engines with 20 studio-quality FX presets +48V phantom power Signal presence and peak LEDs XLR connector for Talkback microphone with level adjustment Lamp socket Multi-track USB recording option Footswitch connector (mute/enable ST1 FX return)
