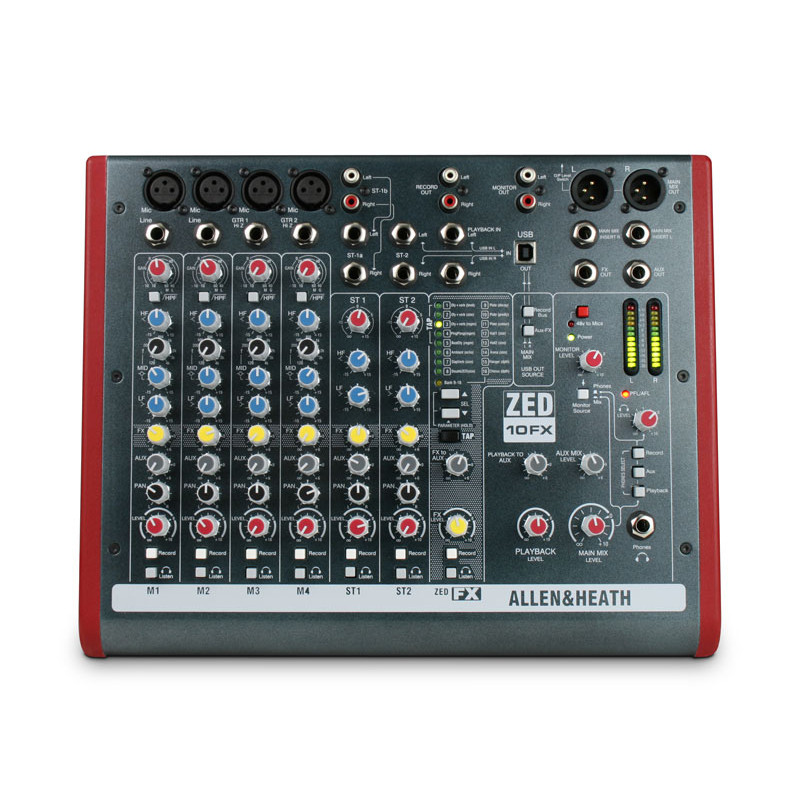

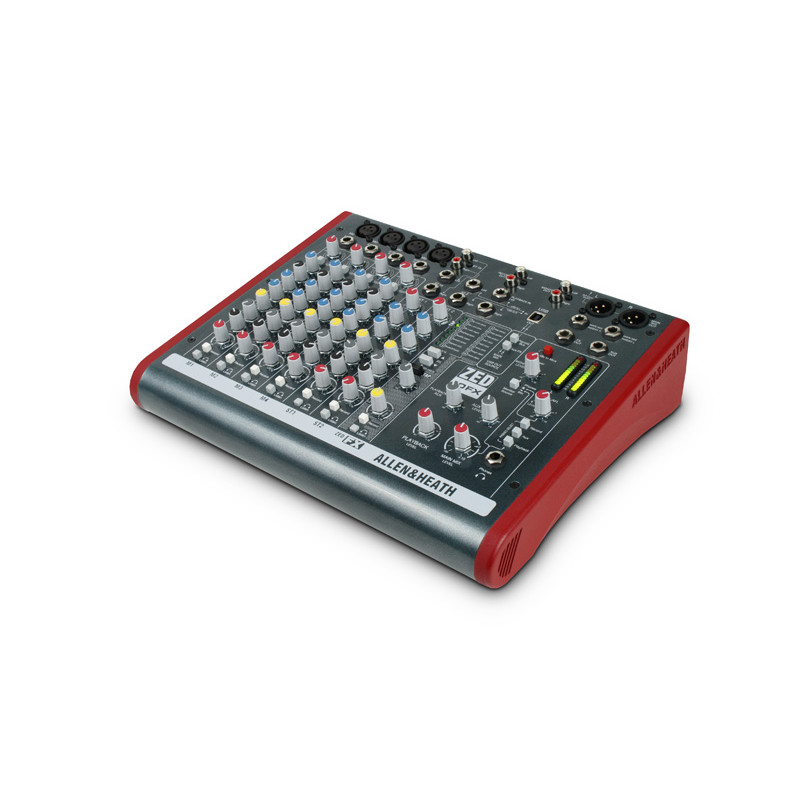

ZED10FX is a small format stereo mixer, equipped with USB and an effects unit, intended for live sound, recording and production. It has 4 microphone/line input channels, 2 stereo inputs compatible with MP3 players and stereo inputs and outputs for recording and playback. Its USB interface allows audio recording and playback on PC or Mac computers. The ZED-FX series mixers have an internal processor that offers 16 effects, including reverb, delay, ping-pong delay, flanger, chorus, etc. They have adjustable parameters, and their output can be monitored through FX PFL. They also incorporate the new DuoPre preamplifier, which uses a two-stage design, each with carefully controlled gain. Most of the profit is made in the first stage; Line level signals are connected directly to the second stage, keeping noise levels extremely low. The USB audio interface allows different signals to be sent through USB, from LR or from the auxiliary buses. The USB return signal can be sent directly to the LR mix or to a stereo channel. These mixers have been built using independent circuits mounted vertically, with each of the potentiometers fixed to the front panel by means of a metal nut, which provides greater robustness to the product. It is equipped with professional 100mm faders. Includes access to IK Multimedia's AmpliTube X-GEAR modular software.

4 Mic/Line inputs, 2 with high impedance Class A FET inputs Mic inputs with Neutrik 12-segment bar meters Professional effects 3-band EQ, mid-sweep with MusiQ 2 Stereo sources compatible with MP3 players Independent 2-track output for recording Stereo input for playback 2 tracks Main outputs via XLR, with inserts Extensive switching capabilities monitoring Configurable USB audio input/output Stereo monitor outputs 48V phantom power DI level switching for sub mix
