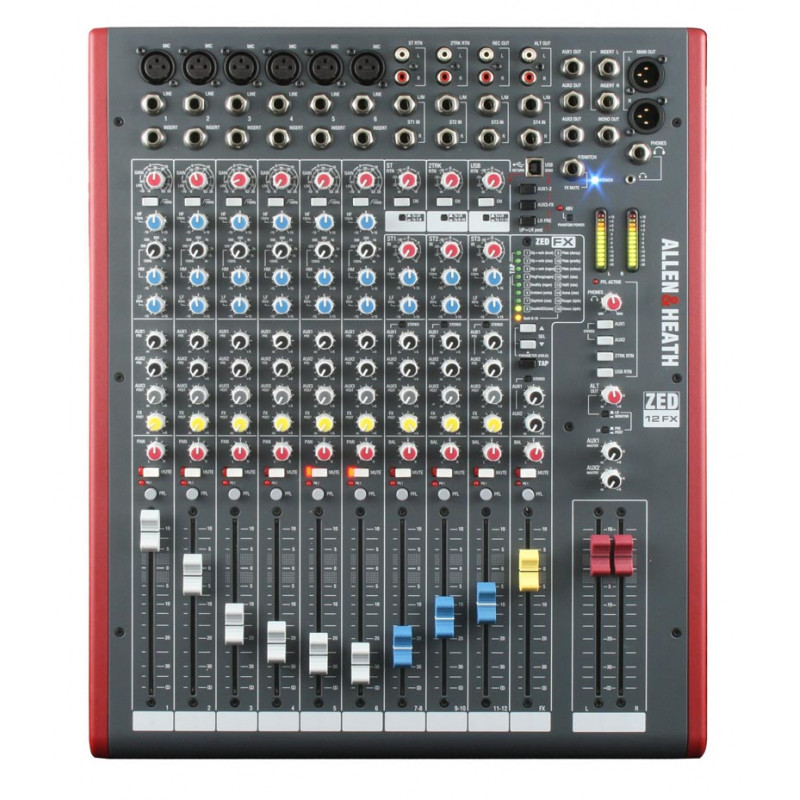

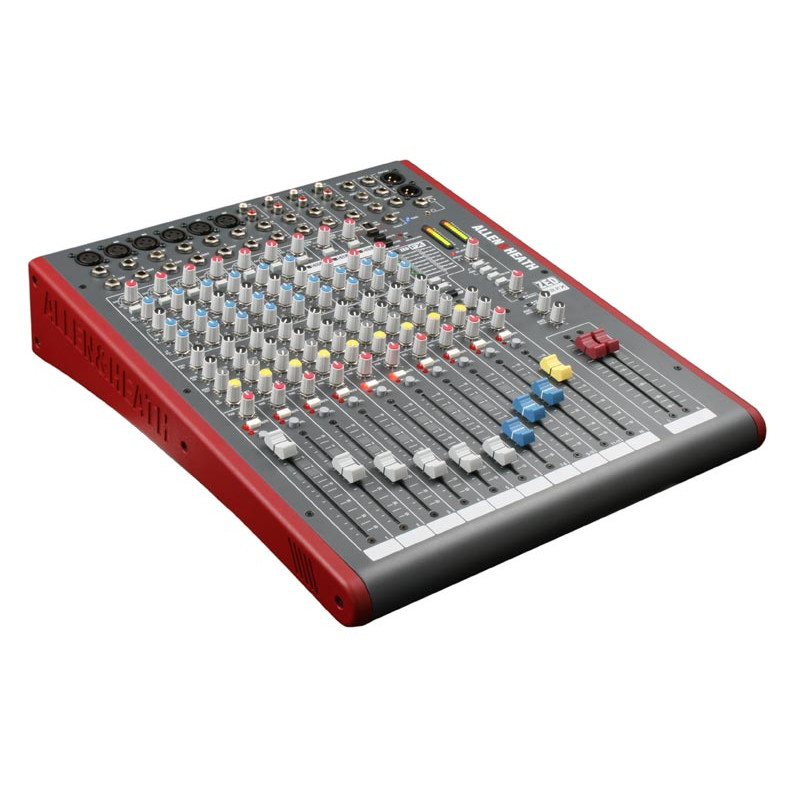

ZED-12FX is a small format stereo mixer, equipped with USB and an effects unit, intended for live sound, recording and production. It has 6 mono channels and 3 stereo channels. Its USB interface allows audio recording and playback on PC or Mac computers. The ZED-FX series mixers have an internal processor that offers 16 effects, including reverb, delay, ping-pong delay, flanger, chorus, etc. They have adjustable parameters, and their output can be monitored through FX PFL. They also incorporate the new DuoPre preamplifier, which uses a two-stage design, each with carefully controlled gain. Most of the profit is made in the first stage; Line level signals are connected directly to the second stage, keeping noise levels extremely low. It has a 3-band equalizer, with midrange sweep, whose design is based on the one found in the popular GL2400 mixer. This design uses MusiQ, which offers an optimized slope (or Q factor) for musical instrument equalization. The USB audio interface allows different signals to be sent through USB, from LR or from the auxiliary buses. The USB return signal can be sent directly to the LR mix or to a stereo channel. It is equipped with 4 auxiliary sends; two pre-fader type and two post-fader type; The first two can be sent to the USB bus, allowing pre-fader signal recording independently of the main mix. The latter can also be sent to the USB bus to be used as an effects send. These mixers have been built using independent circuits mounted vertically, with each of the potentiometers fixed to the front panel by means of a metal nut, which provides greater robustness to the product. It is equipped with professional 100mm faders. Includes Sonar LE recording software.

3-band equalization with mid sweep 4 auxiliary sends (2 pre, 2 post) L, R and M outputs 48 V phantom power Direct output on each mono channel 3 stereo inputs with EQ Peak and signal presence indicator on each channel Input and audio output via USB, configurable General level control on all outputs Easy installation; All connections and controls are located on the front panel Includes Sonar LE recording software
