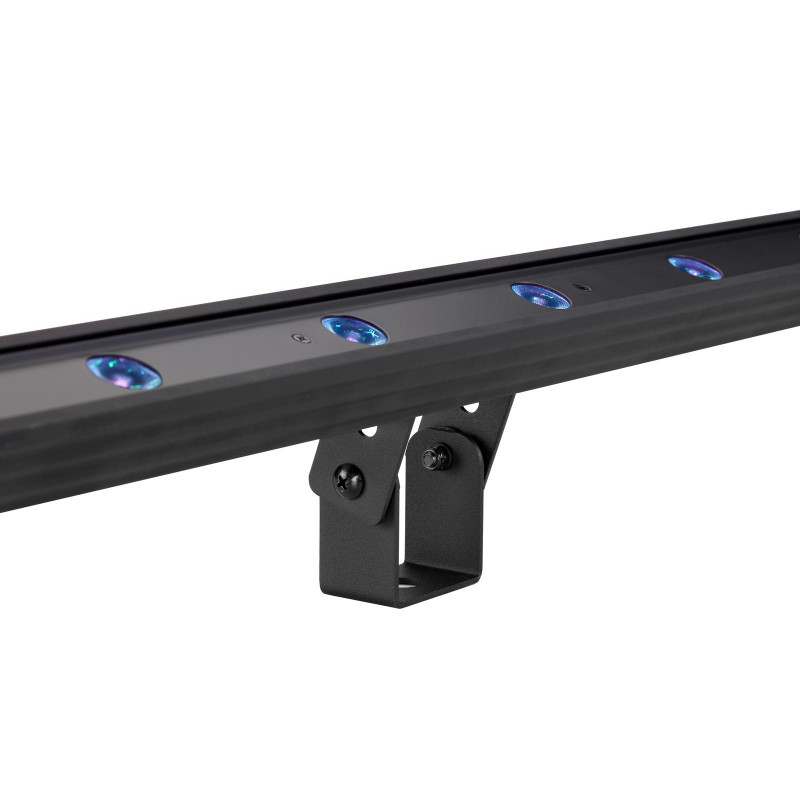

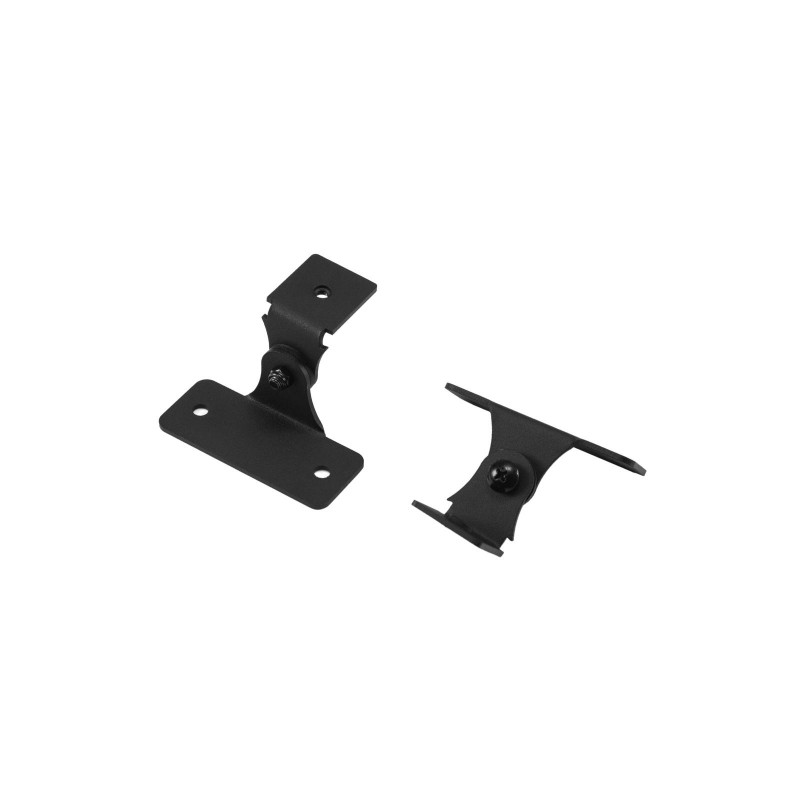

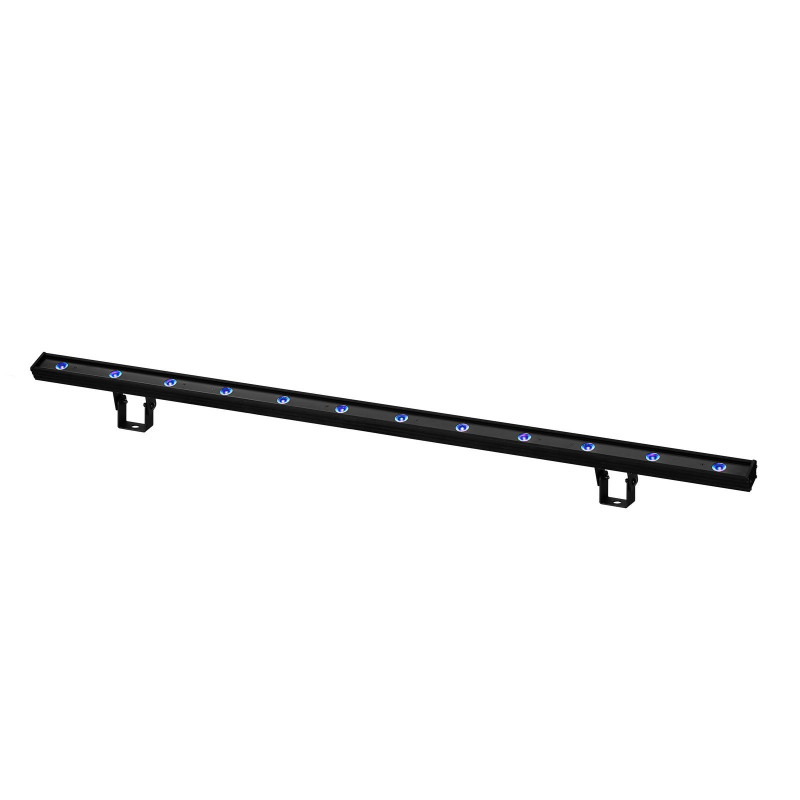

The Antari DarkFX Strip 1020 is an efficient high-output and low-power consumption UV LED bar that delivers a peak wavelength of 365 nm and radiant flux output of 9000 mW at full intensity with minimum visible light. This ensures all UV-reactive materials reflect perfectly with stunningly bright and vivid colors. Equipped with 12 x 1.9 W high-power UV LEDs, it features a 40° beam angle, flicker-free operation and special optics to prevent wear degradation from high UV exposure. This IP20-rated LED bar has been designed for indoor use only and comes with an aluminium housing with an adjustable bracket for versatile mounting options. The Antari DarkFX Drive 4 or Drive 4 MKII fixture driver (sold separately) is required for power and DMX control.

PRO UV bar with 12 x 1.9 W UV LED, deep UV wavelength (365 nM)

• High-efficiency UV LED
• Peak wavelength at 365 nm
• Minimum visible light
• High output at full intensity
• Special optics will not degrade due to high UV exposure
• Power supply and DMX control via optional Antari DarkFX Drive 4 MK2 fixture driver
• Power/data bare wire
• LED: 12 x high-power 1.9 W UV
• Control: with LED controller (not included)
• Effect: UV

Power supply:	48 V DC 500 mA
Power consumption:	24 W
IP classification:	IP20
LED:	12 x high-power 1.9 W UV
Cooling:	Passivecooling by convection
Control:	with LED controller (not included)
Beam angle:	40°
Beam angle (1/2 peak):	40°
Wavelength:	365 nm
Housing color:	Black
Width:	3 cm
Height:	10 cm
Depth:	119.32 cm
Weight:	2.24 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
