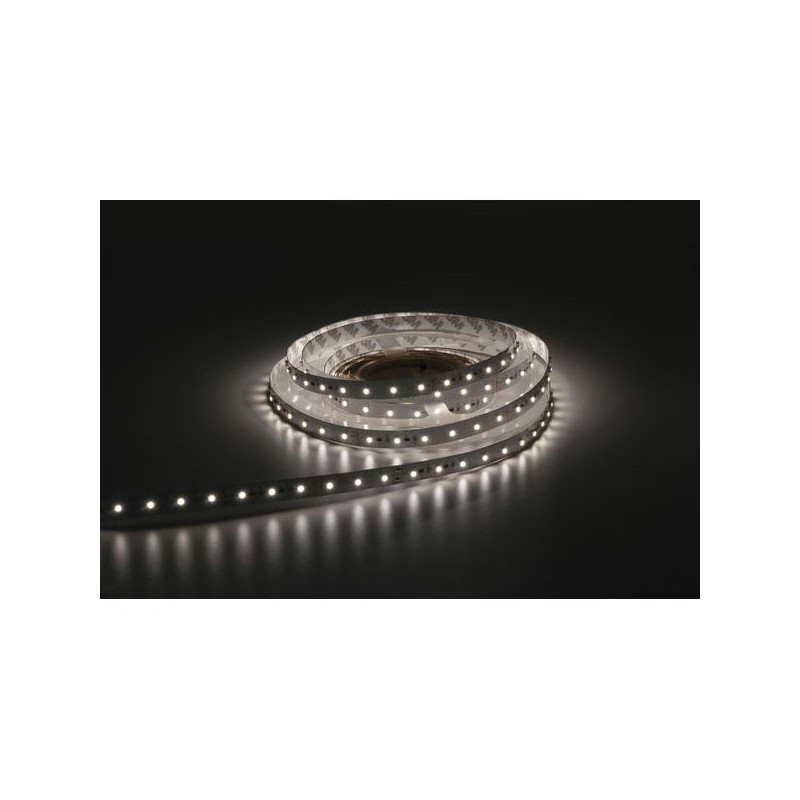

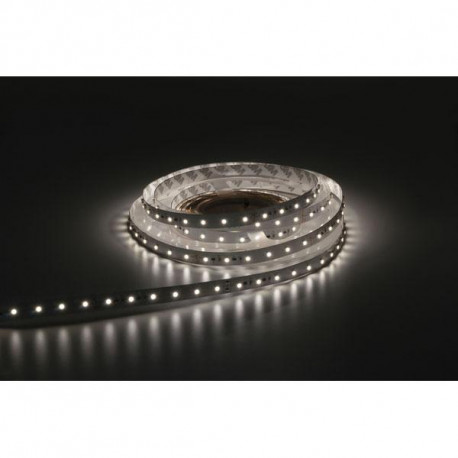

The Santiago Ribbon series are 20-meter IP20 LED strips with high-end electronics. Just like the 5 meter Ribbon series they are suitable for use in dry indoor applications. Mounting in profiles with cover provides additional protection against dust and moisture. As it is not coated, the Ribbon series has the best heat dissipation and longest life span. The 3528 LED is an efficient mid power LED, for versatile applications. Due to its compact size, a high LED/meter rating is possible to create an even light spread.

Due to production conditions, photometric data can differ per production batch within the EU directive.
• Input voltage: 24 VDC
• Power consumption/20 m: 96 W
• Color temperature: 2700 K
• Light output/m: 400-460 Lm
• Beam angle LED: 120°
• LED m/20 m: 60/1200
• Dimensions: 20.000x10x2 mm
• Cutting length: 100 mm
• IP rating: IP20
• Driver included/excluded: excluded
