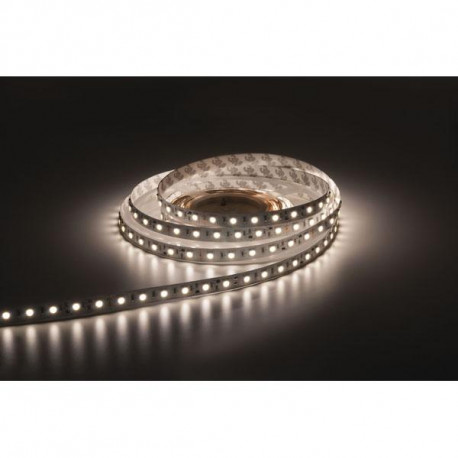

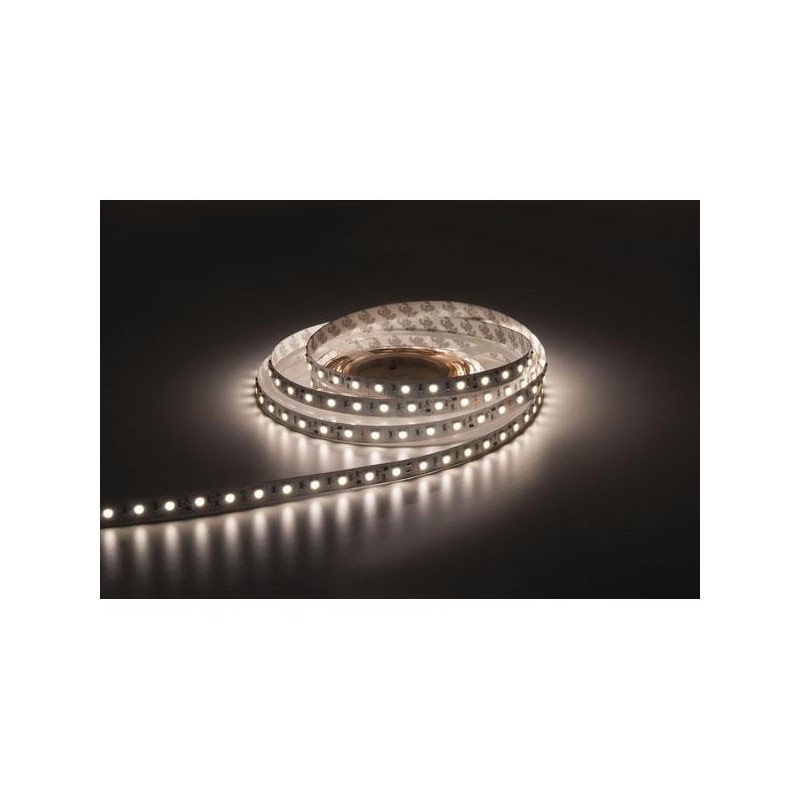

The Santiago Ribbon series are 20-meter IP20 LED strips with high-end electronics. Just like the 5 meter Ribbon series they are suitable for use in dry indoor applications. Mounting in profiles with cover provides additional protection against dust and moisture. As it is not coated, the Ribbon series has the best heat dissipation and longest life span. 5050 LEDs are high power LEDs with a high luminous flux. Please note that mounting in aluminum profiles is highly recommended for proper high power ratings necessary for heat dissipation.


Due to production conditions, photometric data can differ per production batch within the EU directive.
• Input voltage: 24 VDC
• Power consumption/20 m: 288 W
• Color temperature: 2400 K
• Light output/m: 1180-1324 Lm
• Beam angle LED: 120°
• LED m/20 m: 60/1200
• Dimensions: 20.000x10x2 mm
• Cutting length: 100 mm
• IP rating: IP20
• Driver included/excluded: excluded
