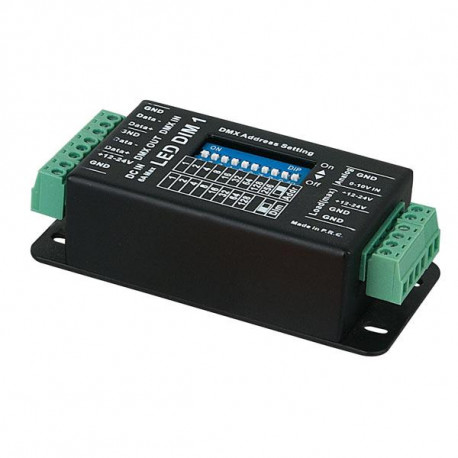

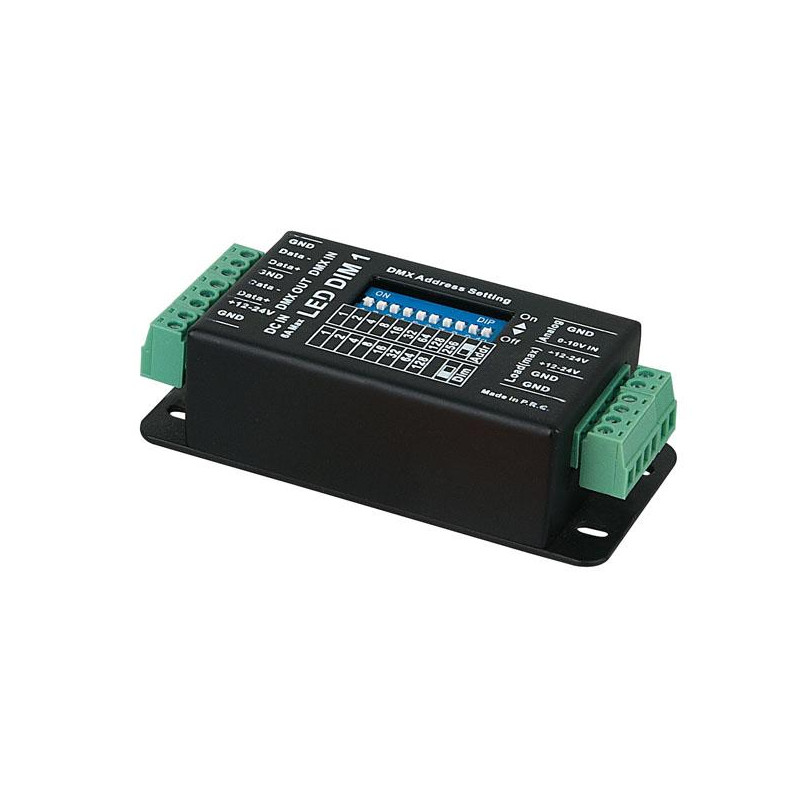

The LED-Dim 1 MKII is a compact and easy to use LED Dimmer. It can dim an 1 channel LED source by DMX or 0-10 V. The LED-Dim 1 is a constant voltage LED Dimmer and can handle a load of 6 A-12 V or 4 A-24 V.
The power input is supplied by an external (optional) power supply which can vary between 12 V and 24 V, depending on the connected load.
• Compact size
• Easy to use
• Transfer any 12-24V LED into DMX • • Controllable
• Input voltage: 12 – 24 VDC
• Output current 12 VDC: 1x6 A (72 W)
• Output current 24 VDC: 1x4 A (96 W)
• Dimming: DMX, 0 – 10 VDC
• Dimensions: 90x40x20 mm
• Product weight: 0.15 Kg
• Operating temperature: 0 - +40°C
• IP rating: IP20
