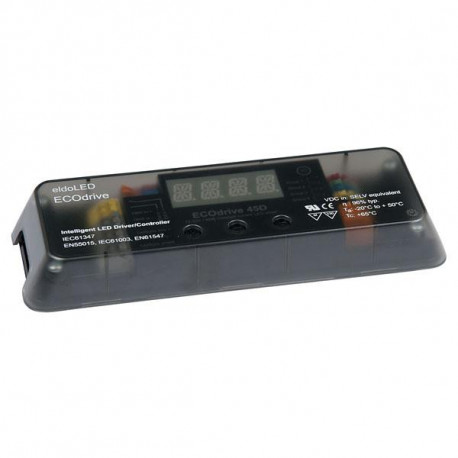

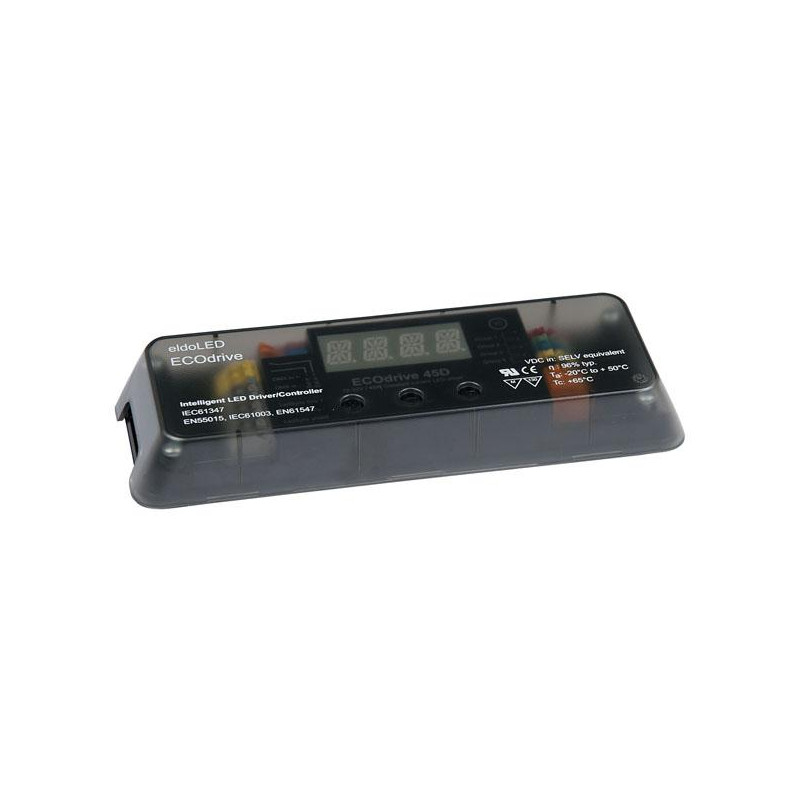

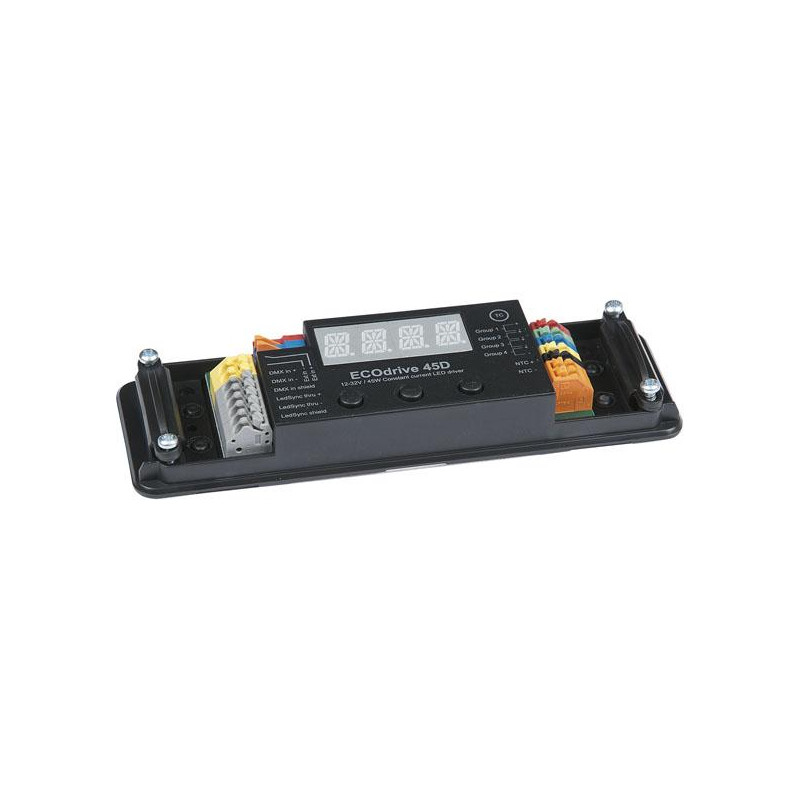

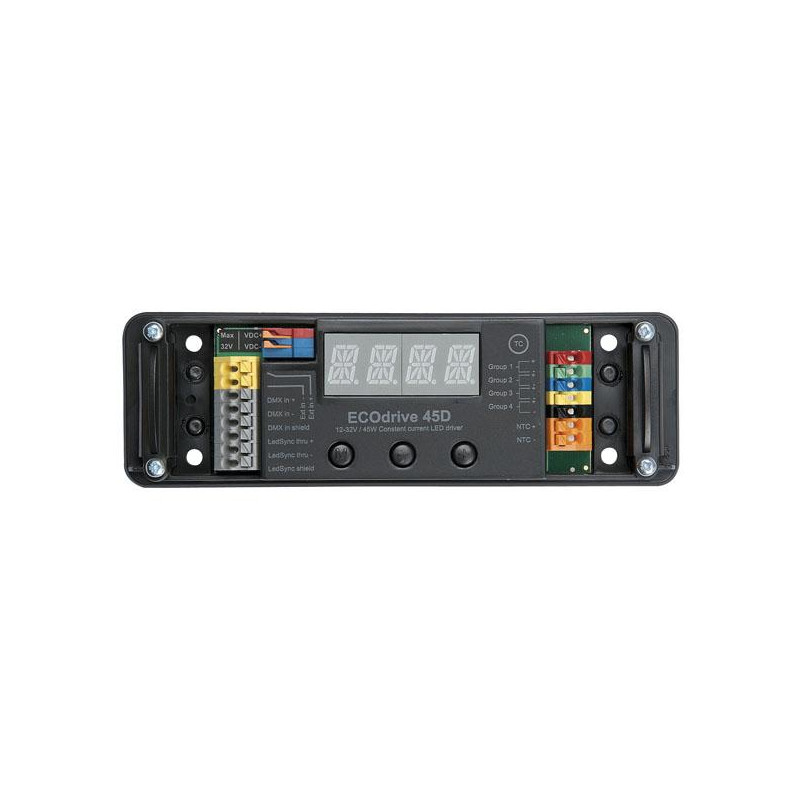

The ECOdrive DC45W is a highly integrated, cost effective, enclosed and by display easy-to-configure
constant current driver/controller for indoor LED lighting applications. The ECOdrive can be integrated
in a network or used as a standalone device. With a wide supply voltage of(12V-32V DC), the
ECOdrive DC45W is the ideal choise for powering 200mA - 1400mA HB LED's
• LED current settings: 200-1400mA (in 50mA steps)
• Power output range: 0-45 Watt
• Operarating supply: 12V-32V DC (Efficiency up to 95%)
• Independed LED groups: up to 4
• Environmental rat.: Ta range: -20°C to +50°C (-4°F to +122°F)
Tc max. 65°C (149°F)
T heatsink max: 60°C (140°F)
• Cooling: Passive (integrated heat spreader)
• Relative huminity: non condensing
• Network input: USITT DMX-512, LedSync
• Network output: USITT DMX-512, LedSync
• Network resolution: 8 bit (4 Network channels used by driver) or 16 bit
(8 Network channels used by driver)
• Certifications: CE: IEC 61347, EN 55015, IEC61003, EN 61547
