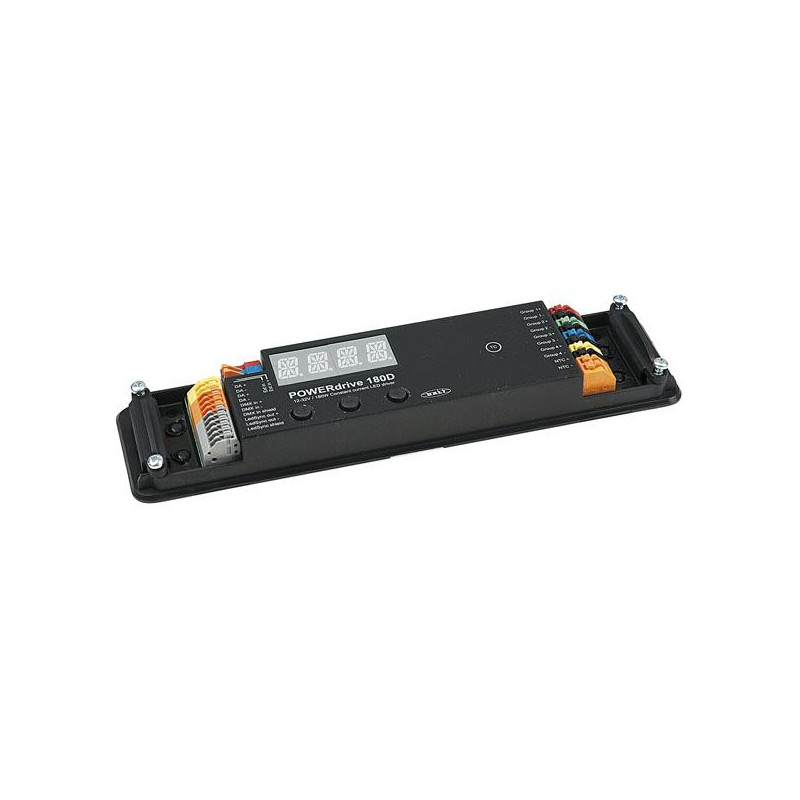

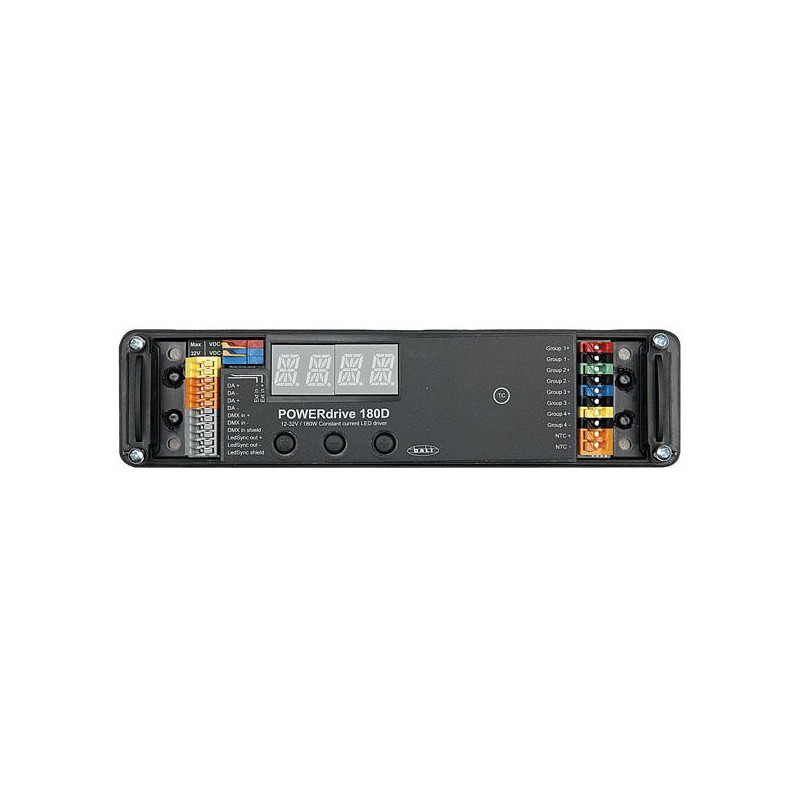

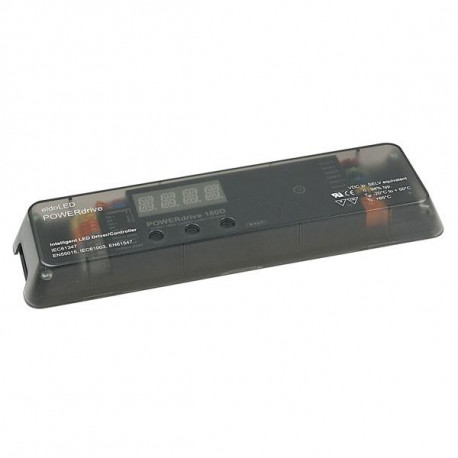

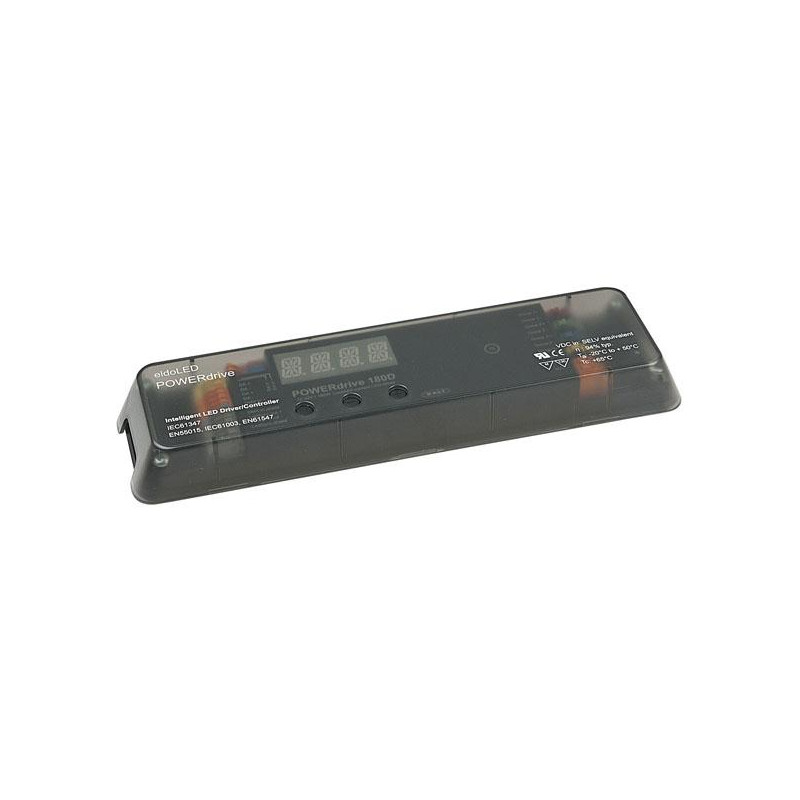

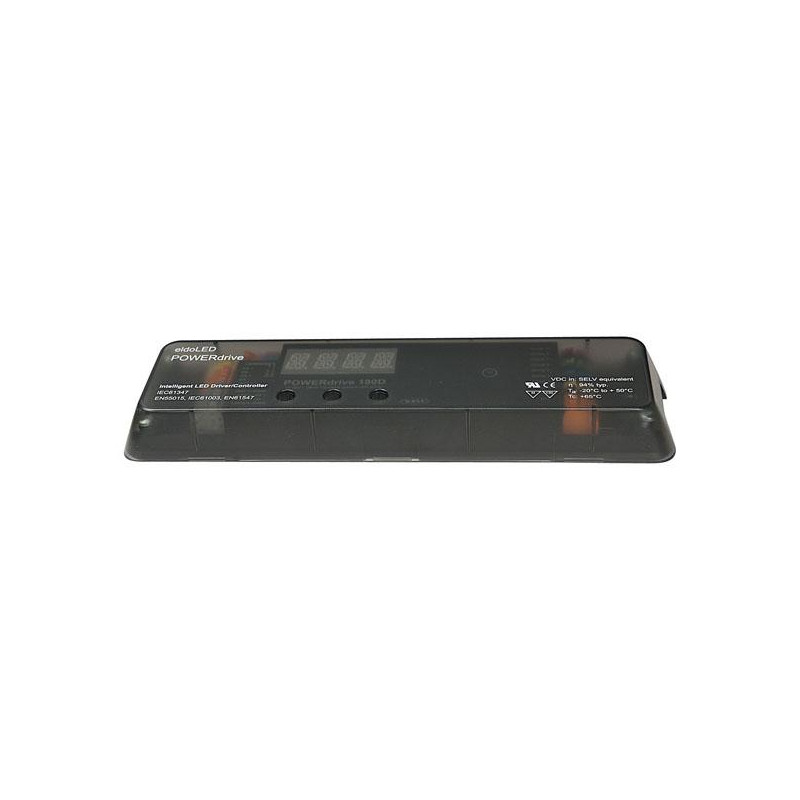

The POWERdrive 180D is a highly integrated, enclosed and easy-to-configure constant current driver/controller with multiple
current sources for high-brightness, indoor LED lighting applications requiring up to 180 Watts 200mA-500mA. The POWERdrive
180D can be integrated in a network or used as standalone devices and is DMX, DALI and LedSync compatible, the latter allowing 15-bit dimming and colour control and bidirectional communication for driver configuration and temperature readout.
• LED current settings: 200-1400mA (in 50mA steps)
• Power output range: 0-180 Watt
• Operarating supply: 12V-32V DC (Efficiency up to 95%)
• Current max.: 6.16A
• Independed LED groups: up to 4
• Environmental rat.: Ta range: -20°C to +50°C (-4°F to +122°F)
Tc max. 65°C (149°F)
T heatsink max: 60°C (140°F)
• Cooling: Passive (integrated heat spreader)
• Relative huminity: non condensing
• Network input: USITT DMX-512, LedSync
• Network output: USITT DMX-512, LedSync
• Network resolution: 8 bit (4 Network channels used by driver) or 16 bit
(8 Network channels used by driver)
• Certifications: CE: IEC 61347, EN 55015, IEC61003, EN 61547
