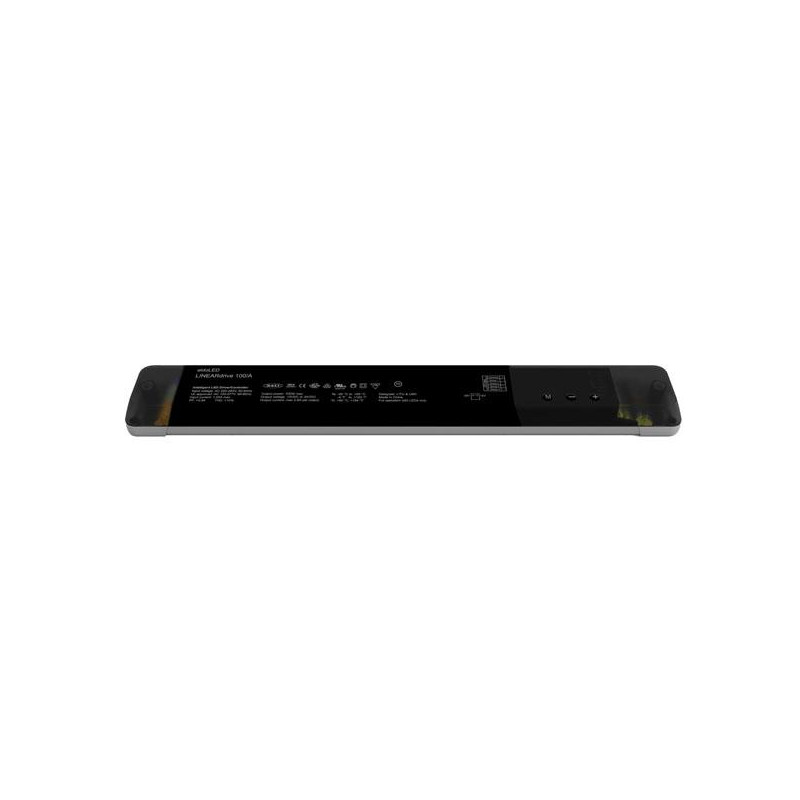

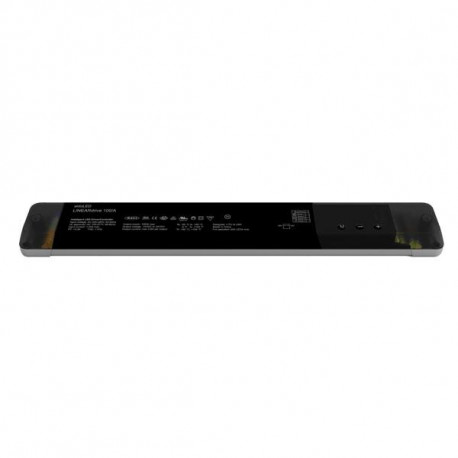

100W Dimmable LED Driver.
Led dimming made beautiful eldoLED drivers excel in smooth, flicker-free dimming and dim down all the way to 0,1% special made for a DALI environment!

Configure to suit your application
You can change the driver's configuration to perfectly fit your application's requirements.
Exact current output values and dimming related settings.
LEDcode enables seamless integration of time motion, and brightness based intelligence for maximum energy and operational efficiency.
• Input voltage: 120 – 277 VAC
• Power consumption: 100 W
• Output current: 4x2 A
• Power factor: 0.94

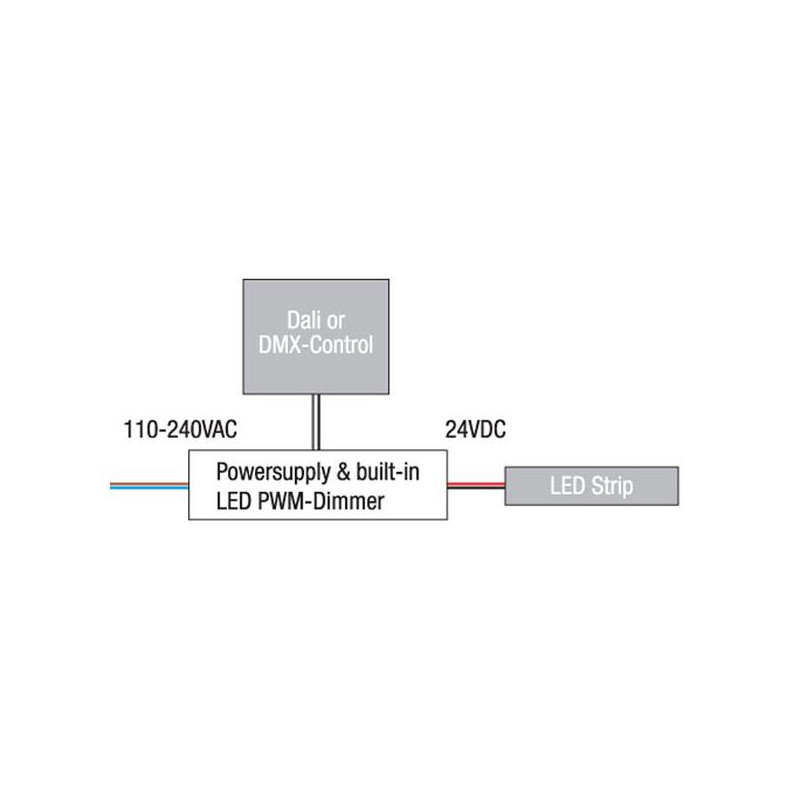

• Dimming: DALI, DMX

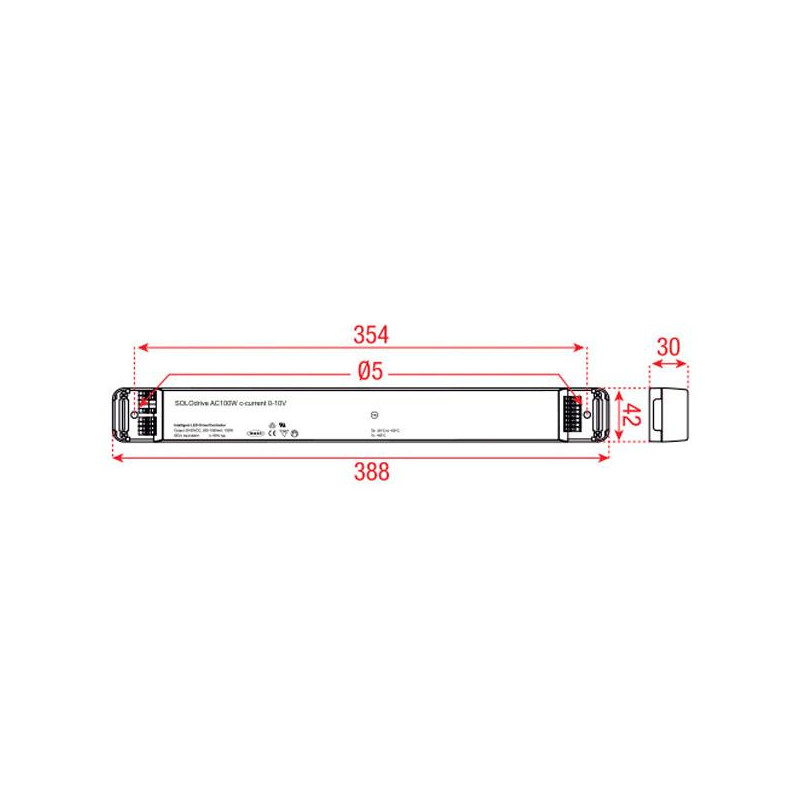

• Dimensions: 388x42x30 mm
• Product weight: 0.705 Kg
• Operating temperature: -40 - +50°C
• IP rating: IP20
• Protection class: II
