100W Dimmable LED Driver.
Led dimming made beautiful
eldoLED drivers excel in smooth, flicker-free dimming and dim down all the way to 0,1%
special made for a DALI environment!

Configure to suit your application
You can change the driver's configuration to perfectly fit your application's requirements.
Exact current output values and dimming related settings.
LEDcode enables seamless integration of time motion, and brightness based intelligence
for maximum energy and operational efficiency.
• Input voltage: 120 – 277 VAC
• Output current: 200 – 1050 mA (settable per output)
• Power factor: 0.94
• Dimming: DALI

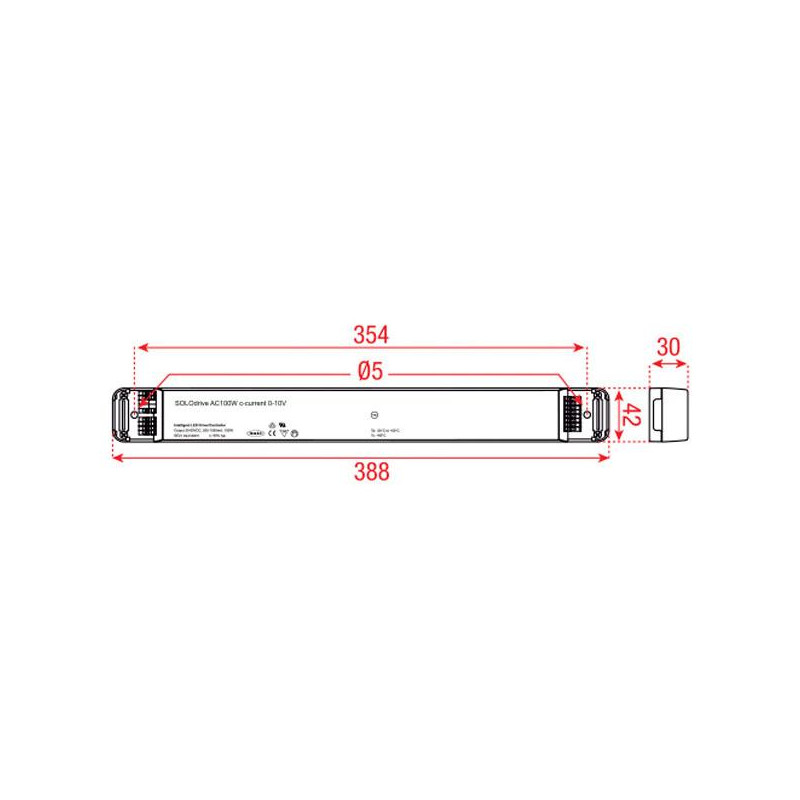

• Dimensions: 388x42x30 mm
• Product weight: 0.666 Kg
• Operating temperature: -40 - +50°C
• IP rating: IP20
• Protection class: II
