Audix - DANTE / AES67 INTERFACE DN4 1 View larger

Audix - DANTE / AES67 INTERFACE DN4

DANTE / AES67 INTERFACE DN4

DANTE / AES67 INTERFACE DN4

Sold Out

More info

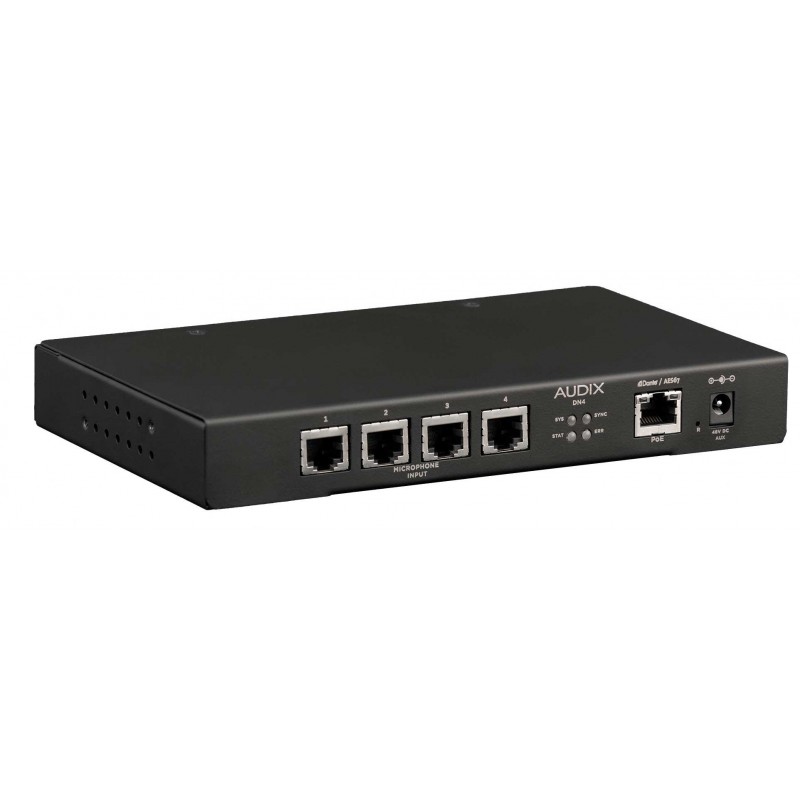

The DN4 microphone interface is a key part of Audix Dante. AES67 Integrated Microphone System, the fast and seamless way to stream Audix audio performance over Ethernet networks. High-quality audio and all microphone functions, including on / off contact closure and LED status indicators, are available over a single CAT5 - CAT7 cable with RJ45 connections on both the interface and the microphone . This simple configuration eliminates wiring errors, speeds installation, and reduces costs.

The DN4 features four RJ45 inputs for single-element pickup microphones and equipped with Audix RJ45 and two 5V logic outputs per port, capable of powering network-connected DSP-controlled LEDs and one logic input per port for push buttons. Low-pass and high-pass filter settings are available on each audio channel, as are eight selectable gain levels, with all settings configurable through software.

Technical characteristics:

  • Compatible with all single element analog microphones equipped with Audix RJ45.
  • 24-bit, 48 kHz high-fidelity audio.
  • Balanced audio inputs with RFI filtering.
  • 48V phantom power output
  • Each channel has eight selectable pre-amp gain levels, as well as low and high pass filters.
  • All channels independently controlled.
  • Flash memory prevents loss of settings in case of power loss.
  • 48V power supply or by PoE. Power supplies not included.
