Audix - DANTE / AES67 INTERFACE DN43 1 View larger

Audix - DANTE / AES67 INTERFACE DN43

DANTE / AES67 INTERFACE DN43

DANTE / AES67 INTERFACE DN43

Sold Out

More info

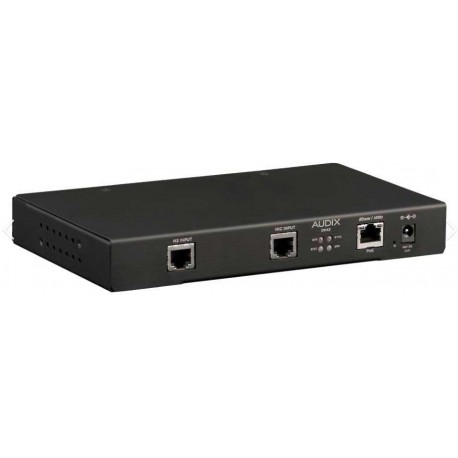

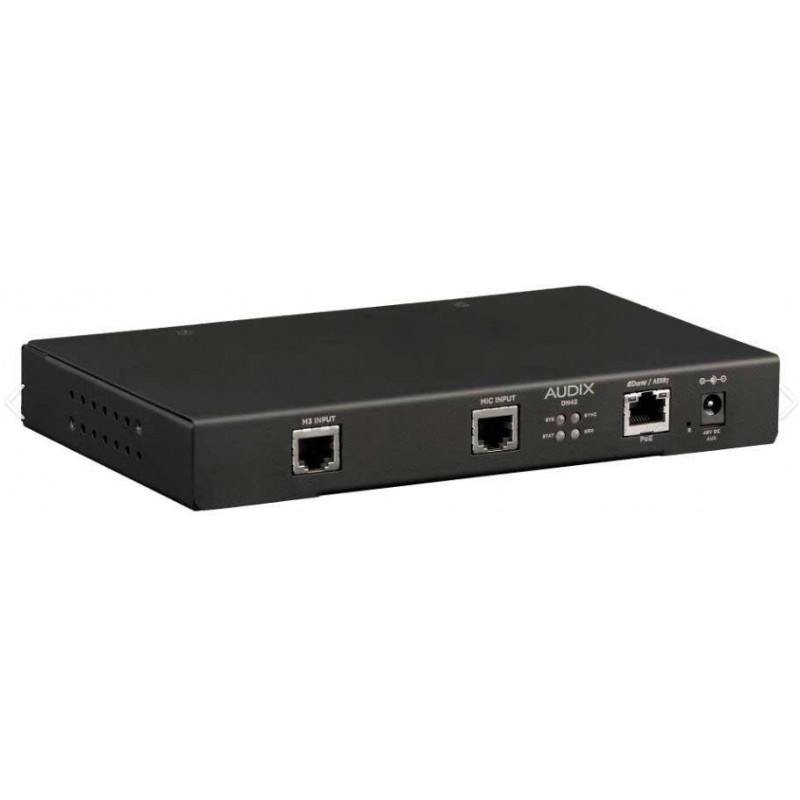

The DN43 microphone interface is a key part of the Audix Dante system. AES67 Integrated Microphone System, the fastest and most seamless way to deliver renowned Audix audio performance over Ethernet networks. High-quality audio and all microphone functions, including on / off switching and LED status indicators, are available over a single CAT5 - CAT7 cable with RJ45 connections on both the interface and the microphone. This extremely simple configuration eliminates weld failures, wiring errors, speeds installation, and greatly reduces your costs.

The DN43 features an RJ45 microphone input designed specifically for the Audix M3 tri-pickup microphone and an input for single-pickup microphones both equipped with Audix RJ45 output. It also has two 5V logic outputs per port, with source / collector capability for networked DSP controlled LEDs. Low-pass and high-pass filter settings are available on each audio channel, as are eight selectable gain levels, with all settings configurable through software.

Technical characteristics:

  • 24-bit, 48 kHz high-fidelity audio.
  • Balanced audio inputs with RFI interference filtering.
  • 48V phantom output.
  • Each channel has selectable preamp gain, as well as high and low pass filters.
  • All channels independently controlled.
  • Flash memory prevents loss of settings in case of power loss.
  • Compatible with the M3 three-element microphone (DN43 only), M70WD steerable ceiling microphone and M55WD ceiling microphone.
  • 48V power supply or by PoE. Power supplies not included.
