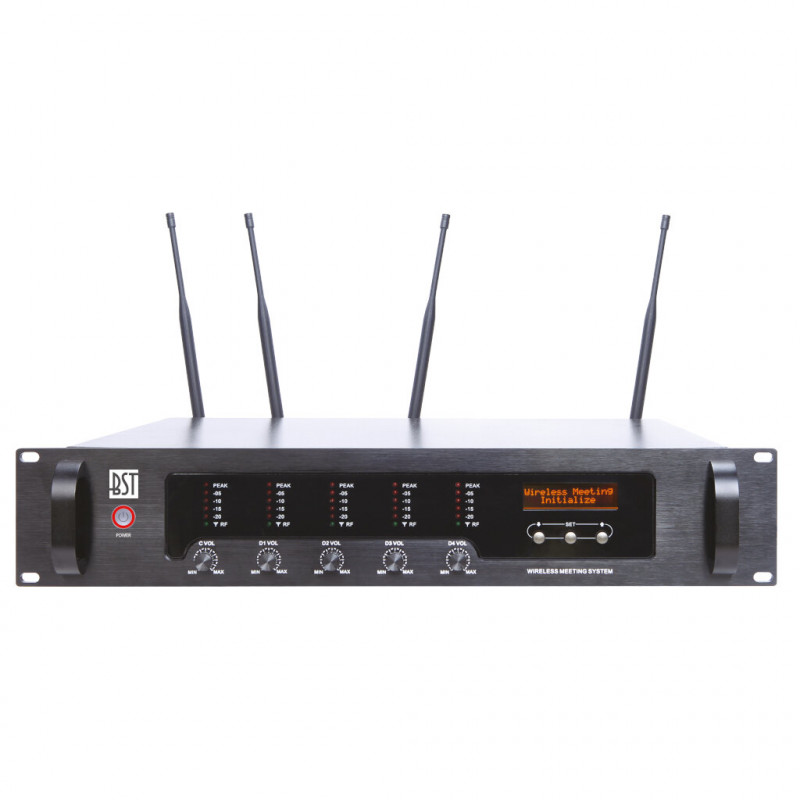

MAIN UNIT OF THE CONFERENCE SYSTEM
VHF Transmission with SMD Technology
The HT-2288 conference system is the perfect solution for a mobile or fixed conference system where the use of cables is quite complicated. By combining multiple receivers (up to 16), this system can control up to 256 desktop microphones. Adding a video processor (optional) will activate the video auto tracking feature (i.e. the camera will automatically move towards the person who is speaking).
One receiver can control up to 256 desktop microphones
Up to 5 desktop microphones (1 president and 4 delegates can speak at the same time)
Up to 16 systems (zones) can be used simultaneously
Level control for each channel
VU meter on each channel
No PC required
LCD display
Operating mode: FIFO (1/2/3/4), limit (1/2/3/4) and president only
Audio outputs: 1x balanced (XLR) + 1x unbalanced (Jack)
Dimensions | 488x88x340mm (19/2U) |
Weight | 7kg |
Receiver Audio Channel: | |
Sensitivity | -100dBm |
audio gain | |
Frequent response | 50Hz - 15kHz |
THD | 0.8% |
Receiver data channel: | |
Data channels | 16 |
Modulation | FSK |
Speed | 100kb/s |
deviation frequency | 0.002 |
Desktop microphone audio channel: | |
Sensitivity | -100dBm |
max. modulation | 60kHz |
radiant power | |
Power supply | 3.7V DC - 4.5V |
max. range | 60m |
Dimensions | 170x58x120mm |
Weight | 0.7kg |
