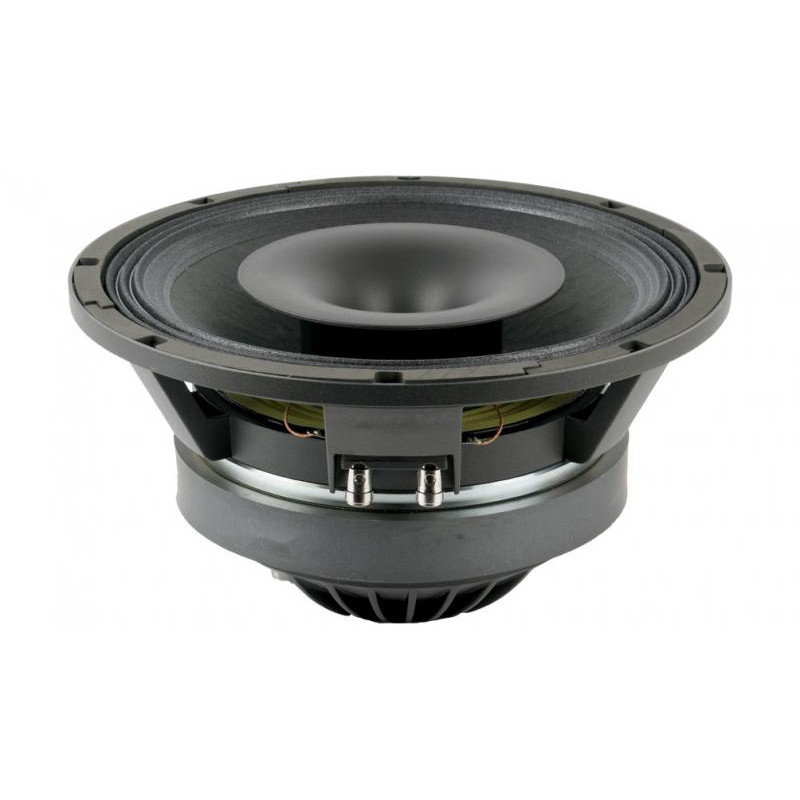

Beyma - 12CXA400Fe
SPEAKER 12 "CXA400Fe 8 OH
View larger
More info
Technical specifications
Nominal impedance LF / HF
8/16 ohm
Ref. Treble replacement
5MCP756
Ref. Bass replacement
5M12CXA4ND8
Nominal diameter
300 mm 12 in
LF / HF minimum impedance
6.2 / 12.2 ohm
Frequency range
40-20000 Hz
Allowable power LF / HF
400/80 W AES
LF / HF program power
800/160 W
LF / HF sensitivity
96/105 dB 1W / 1m @ ZN
Crossover Frequency Recom.
1.5 kHz or higher (12dB / oct pend. Min.)
LF / HF Coil Diameter
101.6 / 72.2 mm - 4 / 2.87 in
Dispersion (conical)
60º
BL factor
19.8 N / A
Moving mass
0.066 kg
Winding height
16 mm
Maximum displacement pp
51 mm
Thiele & Small parameters
Fs
42 Hz
Re
6.6 ohm
Qms
7.2
What is it
0.26
Qts
0.25
You go
94 l
Cms
220 µm / N
Rms
2.4 kg / s
Efficiency %
2.2
Sd
0.055 m²
Xmax
6 mm
you
210 cm³
Le @ 1 kHz
1.1 mH
Construction details
Net weight
11.3 kg 24.9 lb
Total weight
11.7 kg 25.8 lb
Magnet
Ferrite
