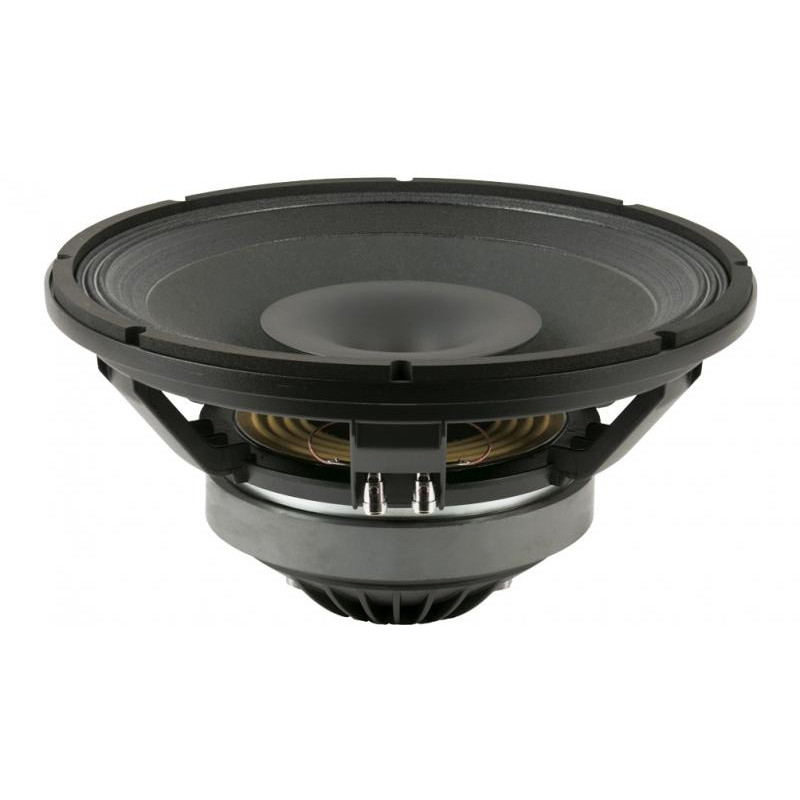

Beyma - 15CXA400Fe
SPEAKER 15 "CXA400Fe 8 OH
-
Ashton - SHM5
Big muffle for classical-acoustic guitar
View larger
More info
Technical specifications
Nominal impedance LF / HF
8/16 ohm
Ref. Treble replacement
5MCP756
Ref. Bass replacement
5M15CXA4ND8
Nominal diameter
350 mm 15 in
LF / HF minimum impedance
6.3 / 11.3 ohm

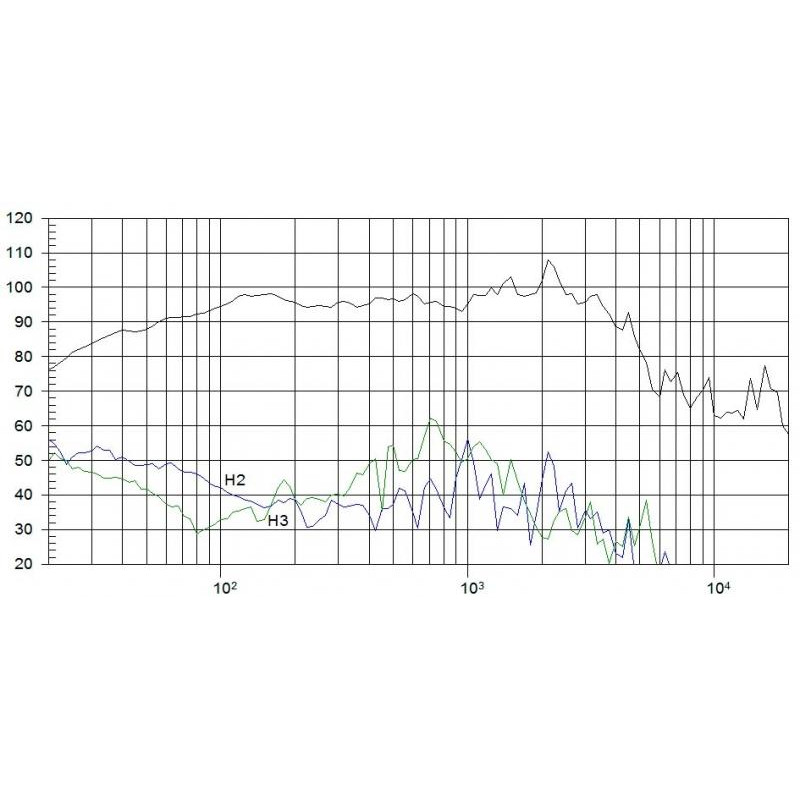

Frequency range
35-20000 Hz
Allowable power LF / HF
400/80 W AES
LF / HF program power
800/180 W
LF / HF sensitivity
98/105 2.83 @ 1 m @ 2π
Crossover Frequency Recom.
1.5 kHz or higher (12dB / oct pend. Min.)
LF / HF Coil Diameter
100/72 mm - 4 /2.9 in
Dispersion (conical)
60º
BL factor
18.2 N / A
Moving mass
0.090 kg
Winding height
16 mm
Maximum displacement pp
51 mm
Thiele & Small parameters
Fs
40 Hz
Re
6.3 ohm
Qms
16.4
What is it
0.43
Qts
0.42
You go
191 l
Cms
175 µm / N
Rms
1.38 kg / s
Efficiency %
2.75
Sd
0.088 m²
Xmax
6 mm
you
350 cm³
Le @ 1 kHz
0.95 mH
Construction details
Net weight
11.9 kg 26.26 lb
Total weight
12.4 kg 27.3 lb
Magnet
Ferrite
