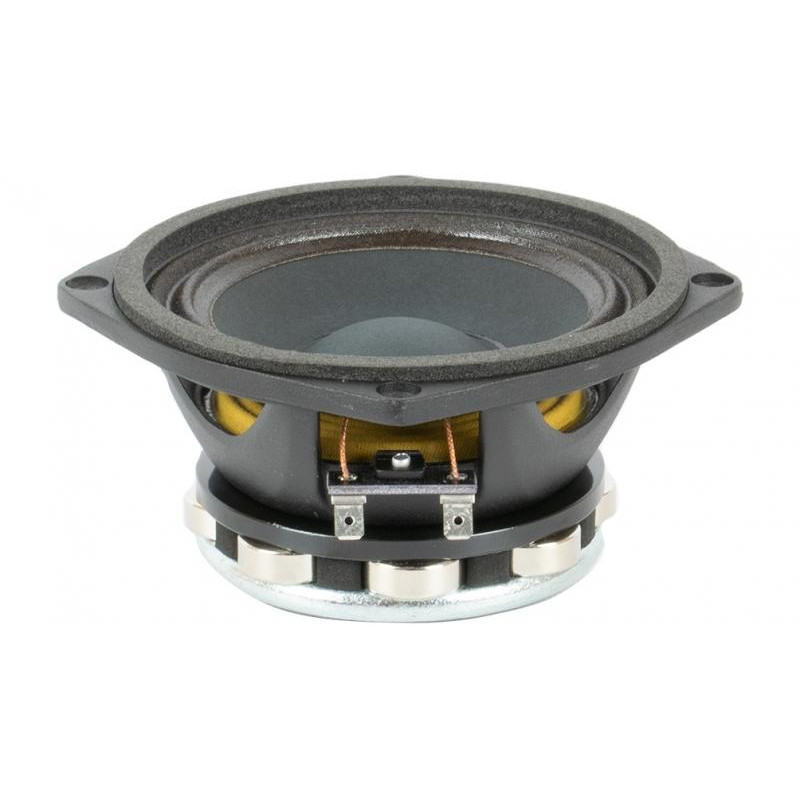

Beyma - 5G40Nd/N
SPEAKER 5G40Nd / N 8 OH
-
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Allowable power
100 W AES
Nominal diameter
125 mm 5 in
Sensitivity
92 dB 1 W / 1 m @ ZN
Minimum impedance
6.9 ohm
Frequency range
150-17000 Hz
Program power
200 W
Recommended cash volume
10/20 l 0.35 / 0.7 ft.³
Coil Diameter
38.1 mm 1.5 in
BL factor
10 N / A
Moving mass
0.009 kg
Winding height
9 mm
Air gap height
7 mm
Maximum displacement pp
20 mm
Thiele & Small parameters
Fs
140 Hz
Re
6.6 ohm
Qms
2.8
What is it
0.53
Qts
0.45
You go
1.4 l
Cms
143 µm / N
Rms
2.9 kg / s
Efficiency %
0.7
Sd
0.0085 m²
Xmax
3 mm
you
26 cm³
Le @ 1 kHz
0.2 mH
Construction details
Depth
72 mm 2.83 in
Net weight
1.2 kg 2.64 Ib.
Total weight
1.3 kg 2.86 lb
Magnet
Neodymium
