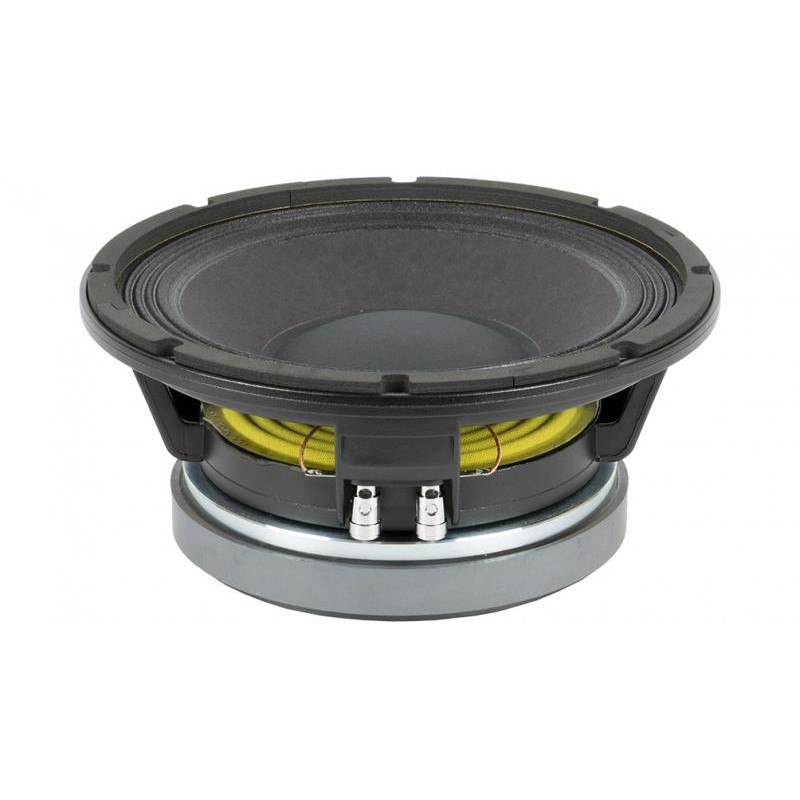

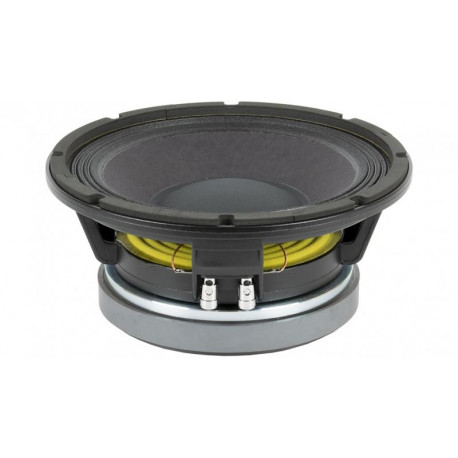

Beyma - 5M10MI108
Replacement membrane for 10 "MI100 8...
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Allowable power
350 W AES
Nominal diameter
250 mm 10 in
Sensitivity
98 dB 1 W @ 1 m @ ZN
Minimum impedance
6.6 ohm
Frequency range
70-4000 Hz
Program power
700 W
Recommended box volume
-
Coil Diameter
76.2 mm 3 in
BL factor
18.7 N / A
Moving mass
0.038 kg
Winding height
13.5 mm
Air gap height
10 mm
Maximum displacement pp
24 mm
Thiele & Small parameters
Fs
50 Hz
Re
6.3 ohm
Qms
6.6
What is it
0.22
Qts
0.21
You go
54 l
Cms
266 µm / N
Rms
1.8 kg / s
Efficiency %
3
Sd
0.038 m²
Xmax
4.5 mm
you
170 cm³
Le @ 1 kHz
0.9 mH
Construction details
Depth
122 mm 4.8 in
Net weight
7.1 kg 15.6 lb
Total weight
7.5 kg 16.5 lb
Magnet
Ferrite
RECOGNITION SPARE FOR SPEAKER 10MI100 8OH
