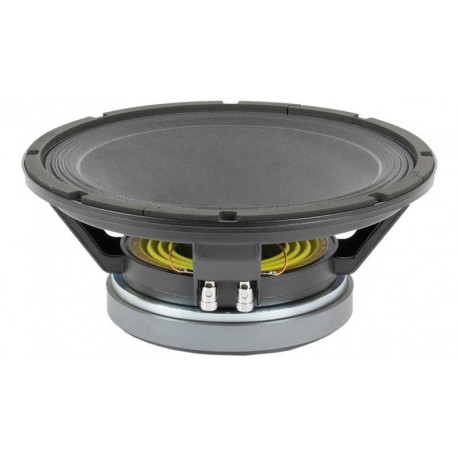

Beyma - 5M12G48
Replacement diaphragm for SPEAKER 12...
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Allowable power
500 W AES
Nominal diameter
300 mm 12 in
Sensitivity
97 dB 1 W @ 1 m @ 2π
Minimum impedance
6.7 ohm

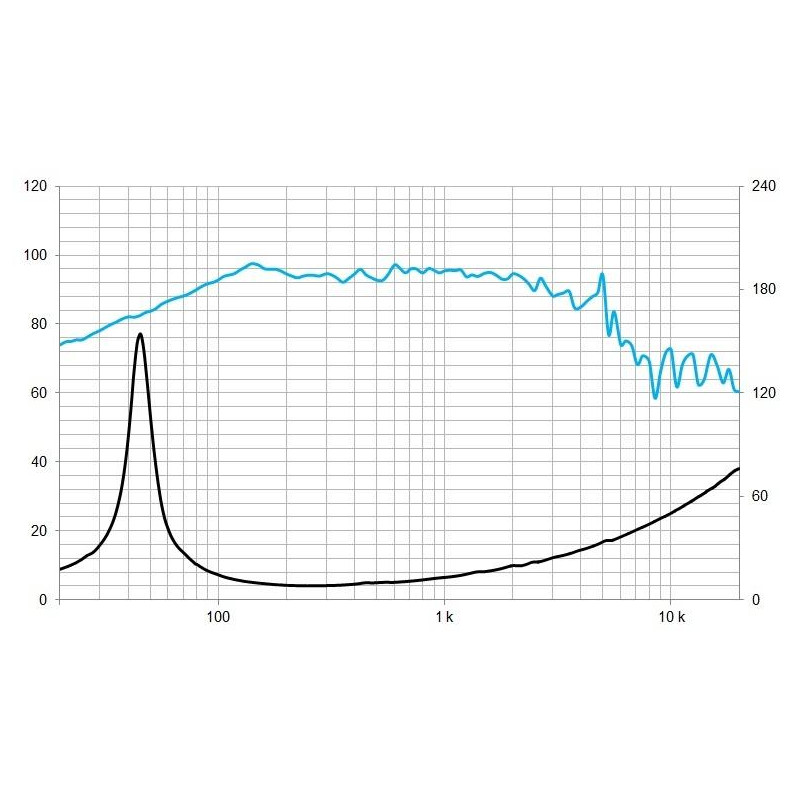

Frequency range
45-4000 Hz
Program power
1000 W
Recommended box volume
20/70 l 0.7 / 2.6 ft.³
Coil Diameter
76.2 mm 3 in
BL factor
18.4 N / A
Moving mass
0.062 kg
Winding height
17.5 mm
Air gap height
8 mm
Maximum displacement pp
28 mm
Thiele & Small parameters
Fs
44 Hz
Re
6 ohm
Qms
11.6
What is it
0.3
Qts
0.3
You go
81 l
Cms
206 µm / N
Rms
1.5 kg / s
Efficiency %
2.3
Sd
0.053 m²
Xmax
7 mm
you
371 cm³
Le @ 1 kHz
2.1 mH
Construction details
Depth
133 mm 5.2 in
Net weight
7.1 kg 15.6 lb
Total weight
7.8 kg 17.2 lb
Magnet
Ferrite
